固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1038CC-1R5MIND SMD 1.5UH 18A Bourns Inc. |
20 | - |
|
数据表 |
SRP1038CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | ±20% | 18 A | 35A | - | Shielded | 5.3mOhm Max | 1.5 µH | - | 30MHz | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|

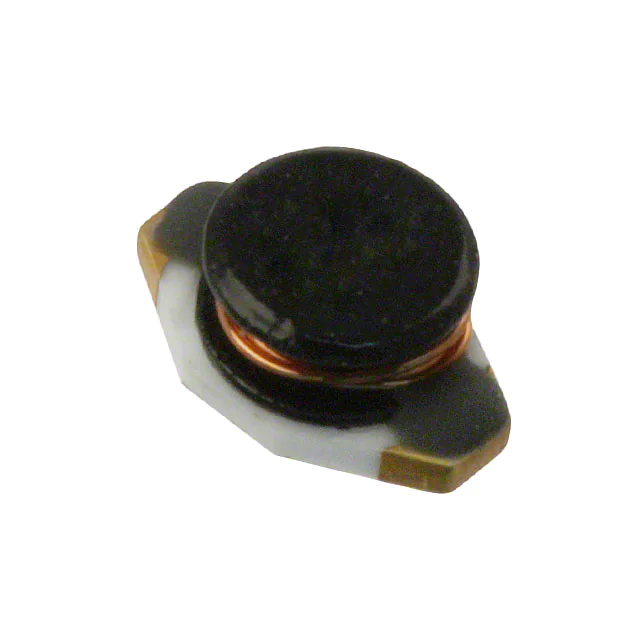

SDR6603-6R8MFIXED IND 6.8UH 1.4A 130MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SDR6603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.4 A | 1.2A | - | Unshielded | 130mOhm Max | 6.8 µH | 15.5 @ 7.96MHz | 45MHz | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | - | -40°C ~ 125°C | 100 kHz | 0.115" (2.92mm) |
|
SRR0905-470YFIXED IND 47UH 1A 140 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SRR0905 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±15% | 1 A | - | - | Shielded | 140mOhm Max | 47 µH | 27 @ 2.52MHz | 11MHz | Surface Mount | - | 0.390" Dia (9.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|

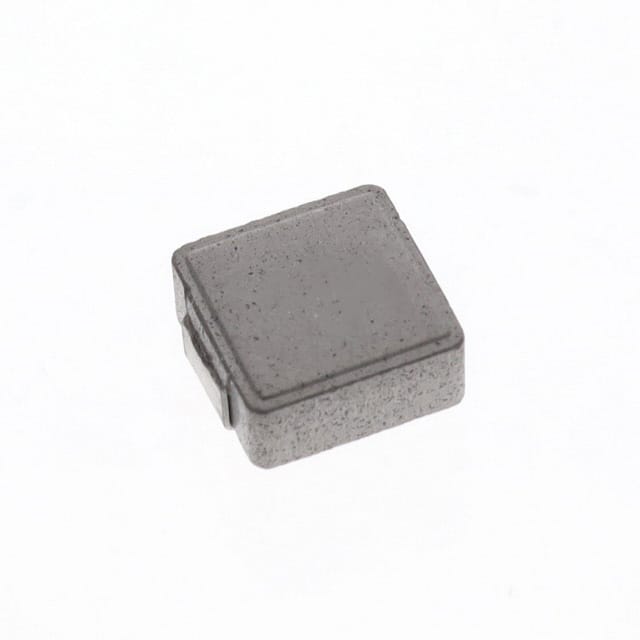

SRP6530A-R68MIND,7.1X6.6X3MM,0.68UH20%,17.5A, Bourns Inc. |
0 | - |
|
数据表 |
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 17.5 A | 28A | - | Shielded | 5.5mOhm Max | 680 nH | 8 @ 25.2MHz | 75MHz | Surface Mount | AEC-Q200 | 0.280" L x 0.260" W (7.10mm x 6.60mm) | - | -55°C ~ 155°C | 500 kHz | 0.118" (3.00mm) |
|
|
SPB0705-R15MIND POWER BEAD 150NH 43A SHLD Bourns Inc. |
0 | - |
|
数据表 |
SPB0705 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 43 A | 30A | - | Shielded | 0.35mOhm Max | 150 nH | - | - | Surface Mount | - | 0.232" L x 0.256" W (5.90mm x 6.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
SRP0412F-1R0MFIXED IND 1UH 5.3A 29.5 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SRP0412F | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 6.6 A | 8.2A | - | Shielded | 27mOhm Max | 1 µH | 10 @ 100kHz | 60MHz | Surface Mount | - | 0.169" L x 0.161" W (4.30mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
SRP7020TA-R68MIND 7X6.6X1.8MM 0.68UH20% 10.5A Bourns Inc. |
0 | - |
|
数据表 |
SRP7020TA | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | ±20% | 10.5 A | 16A | - | Shielded | 10mOhm Max | 680 nH | 15 @ 100kHz | 66MHz | Surface Mount | AEC-Q200 | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 150°C | 100 kHz | 0.079" (2.00mm) |
|
|
SRP7020TA-R47MIND 7X6.6X1.8MM 0.47UH20% 11.7A Bourns Inc. |
0 | - |
|
数据表 |
SRP7020TA | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | ±20% | 11.7 A | 20A | - | Shielded | 8.3mOhm Max | 470 nH | 15 @ 100kHz | 83MHz | Surface Mount | AEC-Q200 | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 150°C | 100 kHz | 0.079" (2.00mm) |
|

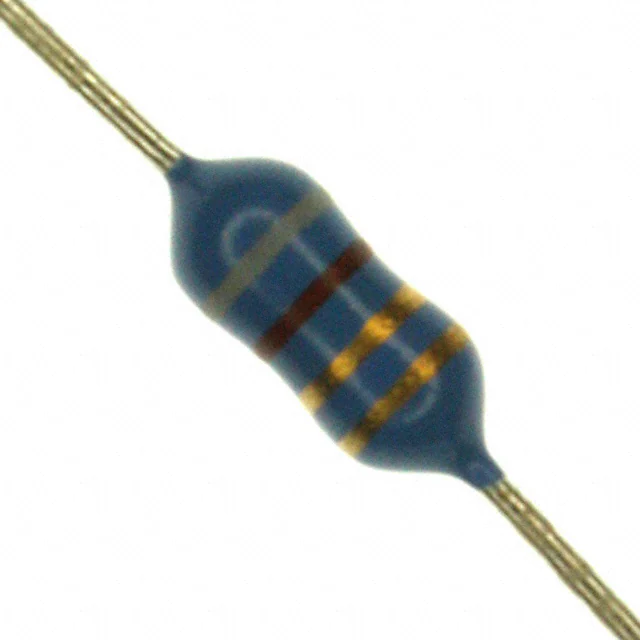

78F8R2J-RCFIXED IND 8.2UH 425MA 550MOHM TH Bourns Inc. |
21,121 | - |
|
数据表 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±5% | 425 mA | - | - | Unshielded | 550mOhm Max | 8.2 µH | 40 @ 7.9MHz | 20MHz | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
|
SRR1210A-100MFIXED IND 10UH 6.5A 18 MOHM SMD Bourns Inc. |
1,906 | - |
|
数据表 |
SRR1210A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 6.5 A | 6.5A | - | Shielded | 18mOhm Max | 10 µH | 16 @ 2.52MHz | 12MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.394" (10.00mm) |
