固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CI100505-8N2JFIXED IND 8.2NH 250MA 280MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 250 mA | - | 0402 (1005 Metric) | Unshielded | 280mOhm Max | 8.2 nH | 8 @ 100MHz | 3.6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.022" (0.55mm) |
|
|
CI100505-10NJFIXED IND 10NH 250MA 310MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 250 mA | - | 0402 (1005 Metric) | Unshielded | 310mOhm Max | 10 nH | 8 @ 100MHz | 3.2GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.022" (0.55mm) |
|
|
CI100505-22NJFIXED IND 22NH 200MA 600MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 200 mA | - | 0402 (1005 Metric) | Unshielded | 600mOhm Max | 22 nH | 8 @ 100MHz | 1.9GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.022" (0.55mm) |
|
|
CI100505-33NJFIXED IND 33NH 200MA 800MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 200 mA | - | 0402 (1005 Metric) | Unshielded | 800mOhm Max | 33 nH | 8 @ 100MHz | 1.3GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.022" (0.55mm) |
|
|
CI100505-47NJFIXED IND 47NH 100MA 1 OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 100 mA | - | 0402 (1005 Metric) | Unshielded | 1Ohm Max | 47 nH | 8 @ 100MHz | 1GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.022" (0.55mm) |
|
|
CI100505-68NJFIXED IND 68NH 100MA 1.2 OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 100 mA | - | 0402 (1005 Metric) | Unshielded | 1.2Ohm Max | 68 nH | 8 @ 100MHz | 700MHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.022" (0.55mm) |
|
|
CI100505-R10JFIXED IND 100NH 100MA 1.5OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 100 mA | - | 0402 (1005 Metric) | Unshielded | 1.5Ohm Max | 100 nH | 8 @ 100MHz | 550MHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.022" (0.55mm) |
|

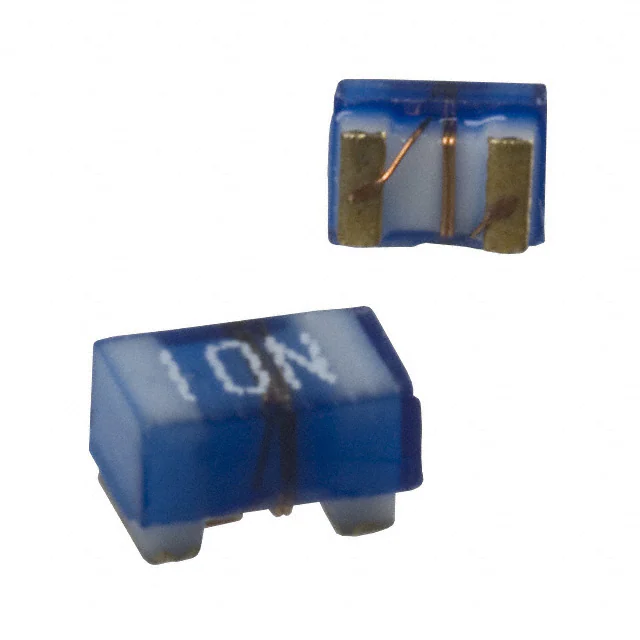

PM0603-15NJFIXED IND 15NH 700MA 170MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±5% | 700 mA | - | 0603 (1608 Metric) | Unshielded | 170mOhm | 15 nH | 35 @ 250MHz | 4GHz | Surface Mount | - | 0.065" L x 0.041" W (1.65mm x 1.05mm) | - | -40°C ~ 125°C | 250 MHz | 0.047" (1.20mm) |
|
|
PM0603-33NJFIXED IND 33NH 600MA 230MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±5% | 600 mA | - | 0603 (1608 Metric) | Unshielded | 230mOhm | 33 nH | 43 @ 250MHz | 2.3GHz | Surface Mount | - | 0.065" L x 0.041" W (1.65mm x 1.05mm) | - | -40°C ~ 125°C | 250 MHz | 0.047" (1.20mm) |
|
|
PM0603-39NJFIXED IND 39NH 600MA 250MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±5% | 600 mA | - | 0603 (1608 Metric) | Unshielded | 250mOhm | 39 nH | 43 @ 250MHz | 2.2GHz | Surface Mount | - | 0.065" L x 0.041" W (1.65mm x 1.05mm) | - | -40°C ~ 125°C | 250 MHz | 0.047" (1.20mm) |
