固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP0610-R47KFIXED IND 470NH 4.7A 41.2MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
SRP0610 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | ±10% | 4.7 A | 10.5A | - | Shielded | 41.2mOhm Max | 470 nH | 20 @ 25.2MHz | 70MHz | Surface Mount | - | 0.280" L x 0.264" W (7.10mm x 6.70mm) | - | -40°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|
PT91041LFIXED INDUCTOR TH Bourns Inc. |
0 | - |
|
数据表 |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PM12645S-1R2MFIXED IND 1.2UH 20A 2 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM12645S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 20 A | - | - | Shielded | 2mOhm Max | 1.2 µH | - | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | - | -40°C ~ 150°C | 100 kHz | 0.232" (5.90mm) |
|
|
PM12645S-1R8MFIXED IND 1.8UH 13A 3.5 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM12645S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 13 A | - | - | Shielded | 3.5mOhm Max | 1.8 µH | - | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | - | -40°C ~ 150°C | 100 kHz | 0.232" (5.90mm) |
|

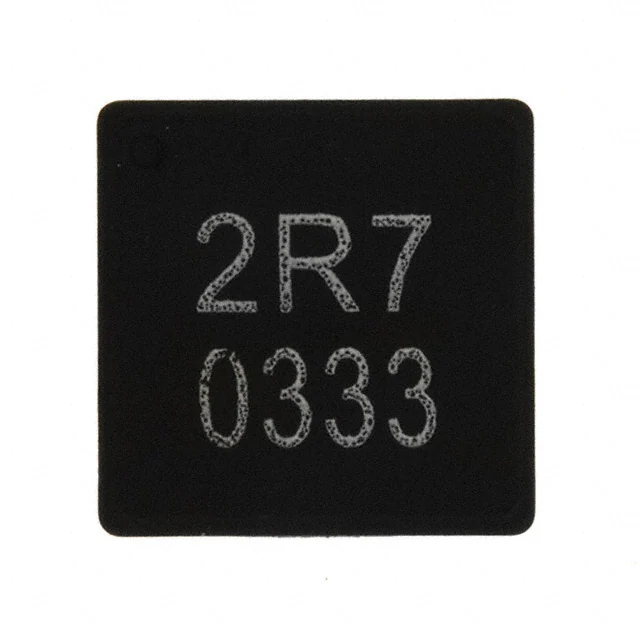

PM12645S-2R7MFIXED IND 2.7UH 12A 4.3 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM12645S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 12 A | - | - | Shielded | 4.3mOhm Max | 2.7 µH | - | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | - | -40°C ~ 150°C | 100 kHz | 0.232" (5.90mm) |
|
PM12651S-4R7MFIXED IND 4.7UH 12A 7.2 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM12651S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 12 A | - | - | Shielded | 7.2mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | - | -40°C ~ 150°C | 100 kHz | 0.232" (5.90mm) |
|
RLB1014-122KAPLFIXED IND TH Bourns Inc. |
0 | - |
|
数据表 |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PM13560S-6R0MFIXED IND 6UH 9.5A 10.7 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM13560S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | ±20% | 9.5 A | - | - | Shielded | 10.7mOhm Max | 6 µH | - | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | - | -40°C ~ 150°C | 100 kHz | 0.232" (5.90mm) |
|

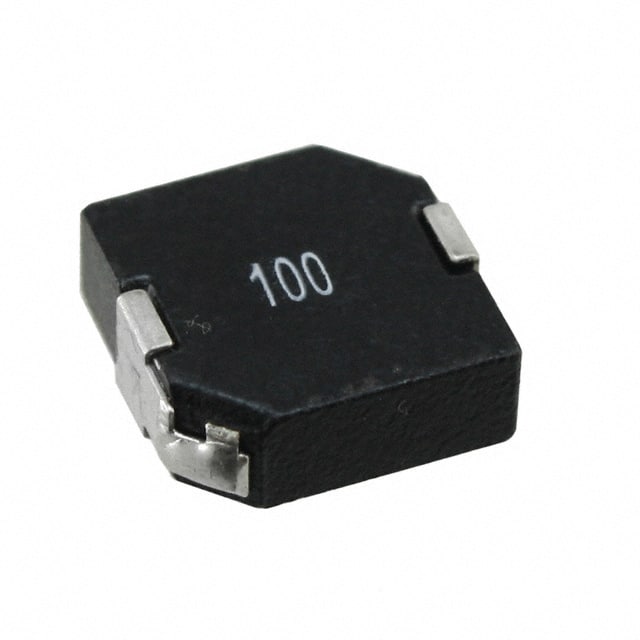

PM13560S-100MFIXED IND 10UH 7.5A 14.9MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM13560S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | ±20% | 7.5 A | - | - | Shielded | 14.9mOhm Max | 10 µH | - | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | - | -40°C ~ 150°C | 100 kHz | 0.232" (5.90mm) |
|
5721FIXED IND 250UH 8A 41 MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
5700 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | ±15% | 8 A | - | - | Unshielded | 41mOhm Max | 250 µH | - | - | Through Hole | - | 0.875" Dia x 0.437" W (22.22mm x 11.10mm) | - | -55°C ~ 105°C | 1 kHz | - |
