固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM40-561KFIXED IND 560UH 50MA 30 OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Ferrite | ±10% | 50 mA | - | 1812 | Unshielded | 30Ohm Max | 560 µH | 30 @ 796kHz | 2MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 125°C | 796 kHz | 0.126" (3.20mm) |
|
|
PM628S-3R0-RCFIXED IND 3UH 3A 28 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM628S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 3 A | 2.6A | - | Shielded | 28mOhm Max | 3 µH | 9 @ 7.96MHz | 45MHz | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
PM628S-3R9-RCFIXED IND 3.9UH 2.45A 32MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM628S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.45 A | 2.3A | - | Shielded | 32mOhm Max | 3.9 µH | 9 @ 7.96MHz | 47MHz | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
PM40-821KFIXED IND 820UH 30MA 45 OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Ferrite | ±10% | 30 mA | - | 1812 | Unshielded | 45Ohm Max | 820 µH | 30 @ 796kHz | 2MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 125°C | 796 kHz | 0.126" (3.20mm) |
|
|
PM628S-560-RCFIXED IND 56UH 850MA 260MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM628S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 850 mA | 650mA | - | Shielded | 260mOhm Max | 56 µH | 10 @ 796kHz | 15MHz | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
PM628S-5R0-RCFIXED IND 5UH 2.4A 36 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM628S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.4 A | 2.1A | - | Shielded | 36mOhm Max | 5 µH | 8 @ 2.52MHz | 50MHz | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

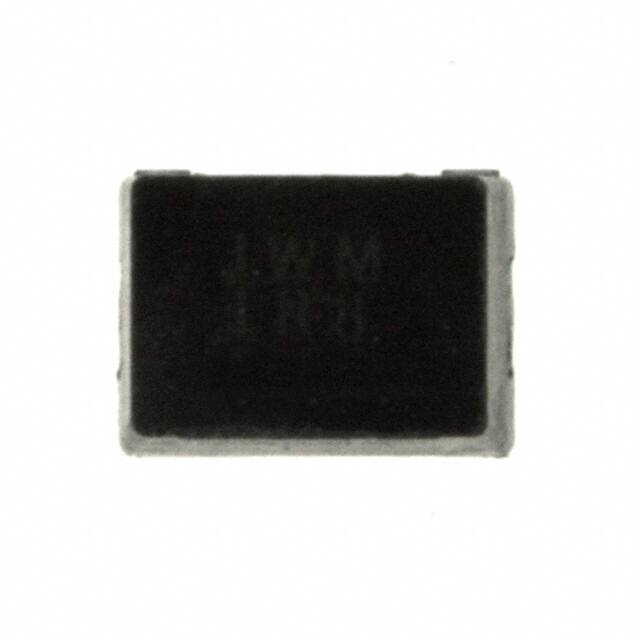

PM40-1R8KFIXED IND 1.8UH 390MA 650MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Iron Powder | ±10% | 390 mA | - | 1812 | Unshielded | 650mOhm Max | 1.8 µH | 50 @ 7.96MHz | 60MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 125°C | 7.96 MHz | 0.126" (3.20mm) |
|
|
PM628S-680-RCFIXED IND 68UH 800MA 300MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM628S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 800 mA | 600mA | - | Shielded | 300mOhm Max | 68 µH | 11 @ 796kHz | 10.5MHz | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
PM628S-6R0-RCFIXED IND 6UH 2.3A 40 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM628S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.3 A | 2A | - | Shielded | 40mOhm Max | 6 µH | 9 @ 7.96MHz | 48MHz | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
PM628S-7R3-RCFIXED IND 7.3UH 2.2A 52 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM628S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.2 A | 1.85A | - | Shielded | 52mOhm Max | 7.3 µH | 6 @ 7.96MHz | 38MHz | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
