固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

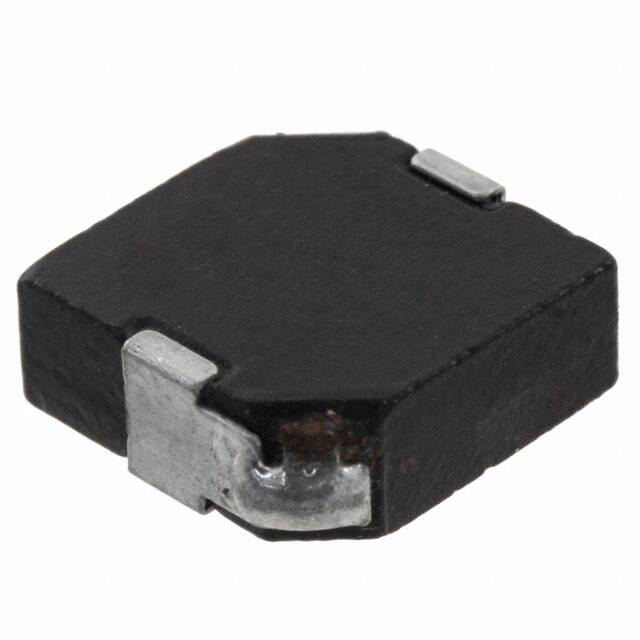

PM13666S-1R0MFIXED IND 1UH 25A 14.4 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM13666S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 25 A | - | - | Shielded | 14.4mOhm Max | 1 µH | - | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | - | -40°C ~ 150°C | 100 kHz | 0.232" (5.90mm) |
|
SRR1208-181YLFIXED IND 180UH 1.2A 270MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±15% | 1.2 A | 1.7A | - | Shielded | 270mOhm Max | 180 µH | 14 @ 796kHz | 2.5MHz | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | - | -40°C ~ 125°C | 1 kHz | 0.335" (8.50mm) |
|
CC453232A-151KLFIXED IND 150UH 220MA 6 OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
CC453232A | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 220 mA | 190mA | 1812 | Unshielded | 6Ohm Max | 150 µH | 30 @ 796kHz | 4.5MHz | Surface Mount | AEC-Q200 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -40°C ~ 150°C | 796 kHz | 0.134" (3.40mm) |
|
9230-94FIXED IND 100NH 1.1A 70 MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
9230 | Axial | Bulk | Obsolete | Molded | Phenolic | ±10% | 1.1 A | - | - | Unshielded | 70mOhm Max | 100 nH | 40 @ 25MHz | 690MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 105°C | 25 MHz | - |
|
|
9230-04FIXED IND 220NH 935MA 140MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
9230 | Axial | Bulk | Obsolete | Molded | Phenolic | ±10% | 935 mA | - | - | Unshielded | 140mOhm Max | 220 nH | 33 @ 25MHz | 510MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 105°C | 25 MHz | - |
|
|
9230-08FIXED IND 330NH 780MA 200MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
9230 | Axial | Bulk | Obsolete | Molded | Phenolic | ±10% | 780 mA | - | - | Unshielded | 200mOhm Max | 330 nH | 30 @ 25MHz | 410MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 105°C | 25 MHz | - |
|
|
9230-10FIXED IND 390NH 640MA 300MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
9230 | Axial | Bulk | Obsolete | Molded | Phenolic | ±10% | 640 mA | - | - | Unshielded | 300mOhm Max | 390 nH | 30 @ 25MHz | 380MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 105°C | 25 MHz | - |
|
|
9230-12FIXED IND 470NH 590MA 350MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
9230 | Axial | Bulk | Obsolete | Molded | Phenolic | ±10% | 590 mA | - | - | Unshielded | 350mOhm Max | 470 nH | 30 @ 25MHz | 340MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 105°C | 25 MHz | - |
|
|
9230-16FIXED IND 680NH 450MA 600MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
9230 | Axial | Bulk | Obsolete | Molded | Phenolic | ±10% | 450 mA | - | - | Unshielded | 600mOhm Max | 680 nH | 28 @ 25MHz | 275MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 105°C | 25 MHz | - |
|
|
9230-18FIXED IND 820NH 380MA 850MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
9230 | Axial | Bulk | Obsolete | Molded | Phenolic | ±10% | 380 mA | - | - | Unshielded | 850mOhm Max | 820 nH | 28 @ 25MHz | 250MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 105°C | 25 MHz | - |
