固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDR0906-330KLFIXED IND 33UH 1.25A 180MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SDR0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.25 A | 2A | - | Unshielded | 180mOhm Max | 33 µH | 35 @ 2.52MHz | 14MHz | Surface Mount | - | 0.492" L x 0.413" W (12.50mm x 10.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.248" (6.30mm) |
|
8230-94-RCFIXED IND 100NH 1.1A 70 MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
8230 | Axial | Bulk | Active | Wirewound | Phenolic | ±10% | 1.1 A | - | - | Unshielded | 70mOhm Max | 100 nH | 40 @ 25MHz | 690MHz | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - | -55°C ~ 105°C | 25 MHz | - |
|
8230-04-RCFIXED IND 220NH 935MA 140MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
8230 | Axial | Bulk | Active | Wirewound | Phenolic | ±10% | 935 mA | - | - | Unshielded | 140mOhm Max | 220 nH | 33 @ 25MHz | 510MHz | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - | -55°C ~ 105°C | 25 MHz | - |
|
8230-18-RCFIXED IND 820NH 380MA 850MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
8230 | Axial | Bulk | Active | Wirewound | Phenolic | ±10% | 380 mA | - | - | Unshielded | 850mOhm Max | 820 nH | 28 @ 25MHz | 250MHz | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - | -55°C ~ 105°C | 25 MHz | - |
|
8230-36-RCFIXED IND 4.7UH 320MA 1.2 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 320 mA | - | - | Unshielded | 1.2Ohm Max | 4.7 µH | 45 @ 7.9MHz | 75MHz | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
|
8230-52-RCFIXED IND 22UH 190MA 3.3 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 190 mA | - | - | Unshielded | 3.3Ohm Max | 22 µH | 50 @ 2.5MHz | 25MHz | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - | -55°C ~ 105°C | 2.5 MHz | - |
|
8230-54-RCFIXED IND 27UH 185MA 3.5 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 185 mA | - | - | Unshielded | 3.5Ohm Max | 27 µH | 50 @ 2.5MHz | 22MHz | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - | -55°C ~ 105°C | 2.5 MHz | - |
|
9250A-123-RCFIXED IND 12UH 200MA 2 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 200 mA | 200mA | - | Shielded | 2Ohm Max | 12 µH | 55 @ 2.5MHz | 44MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 2.5 MHz | - |
|
9250A-822-RCFIXED IND 8.2UH 250MA 1.32OHM TH Bourns Inc. |
0 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 250 mA | 250mA | - | Shielded | 1.32Ohm Max | 8.2 µH | 50 @ 7.9MHz | 50MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 7.9 MHz | - |
|

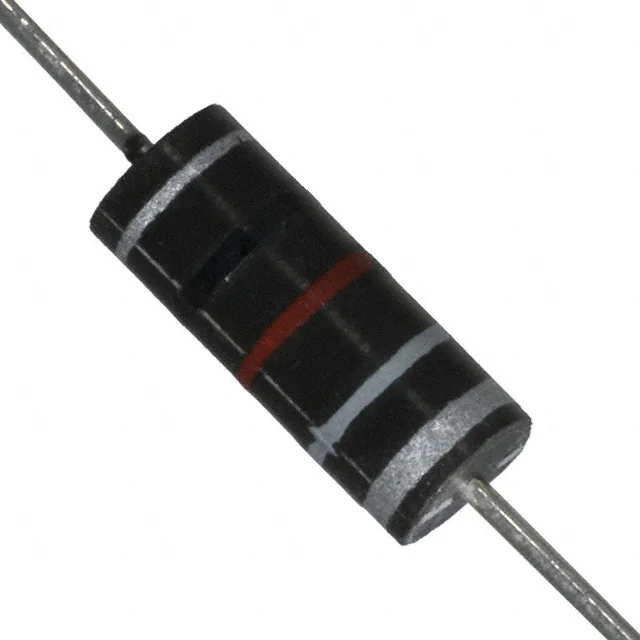

9250A-823-RCFIXED IND 82UH 180MA 2.44 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 180 mA | 140mA | - | Shielded | 2.44Ohm Max | 82 µH | 50 @ 2.5MHz | 10.5MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 2.5 MHz | - |
