固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM322522-100JLFIXED IND 10UH 140MA 2.1 OHM SMD Bourns Inc. |
4,434 | - |
|
数据表 |
CM322522 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 140 mA | - | - | Unshielded | 2.1Ohm Max | 10 µH | 30 @ 2.52MHz | 36MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.087" (2.20mm) |
|
SRP1038A-R39MFIXED IND 390NH 30A 1.3 MOHM SMD Bourns Inc. |
500 | - |
|
数据表 |
SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 30 A | 60A | - | Shielded | 1.3mOhm Max | 390 nH | 15 @ 100kHz | 100MHz | Surface Mount | AEC-Q200 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -40°C ~ 150°C | 100 kHz | 0.157" (4.00mm) |
|
5800-121-RCFIXED IND 120UH 700MA 300MOHM TH Bourns Inc. |
99 | - |
|
数据表 |
5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 700 mA | 1A | - | Unshielded | 300mOhm Max | 120 µH | - | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
SRP1038A-R56MFIXED IND 560NH 25A 1.8 MOHM SMD Bourns Inc. |
63 | - |
|
数据表 |
SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 25 A | 40A | - | Shielded | 1.8mOhm Max | 560 nH | 15 @ 100kHz | 70MHz | Surface Mount | AEC-Q200 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -40°C ~ 150°C | 100 kHz | 0.157" (4.00mm) |
|
|
5800-330-RCFIXED IND 33UH 1.3A 90 MOHM TH Bourns Inc. |
50 | - |
|
数据表 |
5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.3 A | 2A | - | Unshielded | 90mOhm Max | 33 µH | - | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
5800-470-RCFIXED IND 47UH 1A 136 MOHM TH Bourns Inc. |
35 | - |
|
数据表 |
5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 1 A | 1.7A | - | Unshielded | 136mOhm Max | 47 µH | - | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
SRR1210A-470MFIXED IND 47UH 3.8A 72 MOHM SMD Bourns Inc. |
79 | - |
|
数据表 |
SRR1210A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 3.8 A | 3.1A | - | Shielded | 72mOhm Max | 47 µH | 16 @ 2.52MHz | 4.5MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.394" (10.00mm) |
|
SRP1238A-R68MFIXED IND 680NH 28A 2.5 MOHM SMD Bourns Inc. |
79 | - |
|
数据表 |
SRP1238A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 28 A | 49A | - | Shielded | 2.5mOhm Max | 680 nH | 15 @ 100kHz | 50MHz | Surface Mount | AEC-Q200 | 0.531" L x 0.492" W (13.50mm x 12.50mm) | - | -40°C ~ 150°C | 100 kHz | 0.138" (3.50mm) |
-1,0.jpg)
|

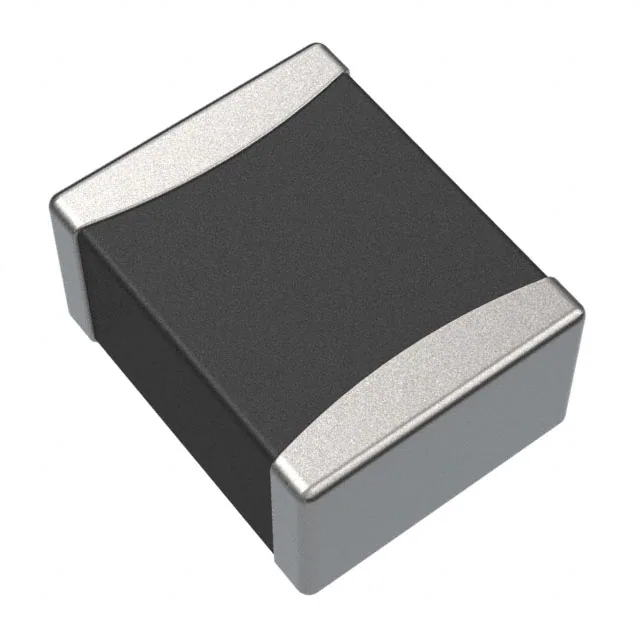

CVH201610A-2R2MFIXED IND 2.2UH 1.2A 137.5 MOHM Bourns Inc. |
2,097 | - |
|
数据表 |
CVH201610A | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | ±20% | 1.2 A | - | 0806 | Shielded | 137.5mOhm Max | 2.2 µH | - | 50MHz | Surface Mount | AEC-Q200 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -55°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|
|
CM322522-270KLFIXED IND 27UH 90MA 5 OHM SMD Bourns Inc. |
1,480 | - |
|
数据表 |
CM322522 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 90 mA | - | - | Unshielded | 5Ohm Max | 27 µH | 30 @ 2.52MHz | 22MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.087" (2.20mm) |
