固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

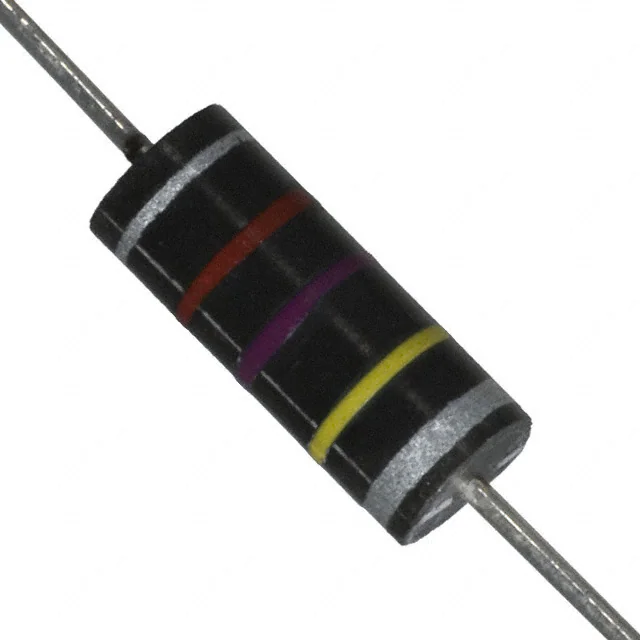

9250A-475-RCFIXED IND 4.7MH 31MA 81.6 OHM TH Bourns Inc. |
835 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 31 mA | 19mA | - | Shielded | 81.6Ohm Max | 4.7 mH | 45 @ 250kHz | 740kHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 250 kHz | - |
|
8230-20-RCFIXED IND 1UH 350MA 1 OHM TH Bourns Inc. |
552 | - |
|
数据表 |
8230 | Axial | Bulk | Active | Wirewound | Phenolic | ±10% | 350 mA | - | - | Unshielded | 1Ohm Max | 1 µH | 25 @ 25MHz | 230MHz | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - | -55°C ~ 105°C | 25 MHz | - |
|
8230-46-RCFIXED IND 12UH 210MA 2.7 OHM TH Bourns Inc. |
461 | - |
|
数据表 |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 210 mA | - | - | Unshielded | 2.7Ohm Max | 12 µH | 45 @ 2.5MHz | 40MHz | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - | -55°C ~ 105°C | 2.5 MHz | - |
|
8230-28-RCFIXED IND 2.2UH 550MA 400MOHM TH Bourns Inc. |
183 | - |
|
数据表 |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 550 mA | - | - | Unshielded | 400mOhm Max | 2.2 µH | 30 @ 7.9MHz | 115MHz | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
|
SRN2009T-2R2MFIXED IND 2.2UH 900MA 160MOHM SM Bourns Inc. |
2,633 | - |
|
数据表 |
SRN2009T | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 900 mA | 900mA | 0806 (2016 Metric) | Shielded | 160mOhm | 2.2 µH | 16 @ 1MHz | 150MHz | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -40°C ~ 125°C | 1 MHz | 0.037" (0.95mm) |
|
SRN4012T-4R7MFIXED IND 4.7UH 1.5A 95 MOHM SMD Bourns Inc. |
2,339 | - |
|
数据表 |
SRN4012T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.5 A | 1.2A | - | Shielded | 95mOhm | 4.7 µH | 6 @ 100kHz | 45MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
CM453232-102KLFIXED IND 1MH 30MA 40 OHM SMD Bourns Inc. |
1,743 | - |
|
数据表 |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 30 mA | - | 1812 | Unshielded | 40Ohm Max | 1 mH | 30 @ 252kHz | 2.5MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -40°C ~ 125°C | 252 kHz | 0.134" (3.40mm) |
|
8230-64-RCFIXED IND 68UH 135MA 6.7 OHM TH Bourns Inc. |
184 | - |
|
数据表 |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 135 mA | - | - | Unshielded | 6.7Ohm Max | 68 µH | 50 @ 2.5MHz | 15MHz | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - | -55°C ~ 105°C | 2.5 MHz | - |
|
SRN3012TA-4R7MFIXED IND 4.7UH 1.3A 130MOHM SMD Bourns Inc. |
3,835 | - |
|
数据表 |
SRN3012TA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.3 A | 1.05A | - | Shielded | 130mOhm | 4.7 µH | 18 @ 1MHz | 55MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
|
|
SRN3012TA-100MFIXED IND 10UH 890MA 245MOHM SMD Bourns Inc. |
3,554 | - |
|
数据表 |
SRN3012TA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 890 mA | 760mA | - | Shielded | 245mOhm | 10 µH | 20 @ 1MHz | 40MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
