固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBC8-471-112FIXED IND 470UH 1.1A 420 MOHM TH |
249 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.1 A | 1.6A | - | Unshielded | 420mOhm Max | 470 µH | - | - | Through Hole | - | 0.591" Dia (15.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.748" (19.00mm) |
|
LMLP13B3M100DTASFIXED IND 10UH 10A 16.8MOHM SMD |
185 | - |
|
数据表 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 10 A | 15.5A | - | Shielded | 16.8mOhm Max | 10 µH | - | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | - | -55°C ~ 155°C | 100 kHz | 0.256" (6.50mm) |
|
4604-RCFIXED IND 1.5UH 1.8A 93 MOHM TH |
2,618 | - |
|
数据表 |
4600 | Axial | Bulk | Active | Wirewound | Phenolic | ±10% | 1.8 A | - | - | Unshielded | 93mOhm Max | 1.5 µH | 58 @ 7.96MHz | 149MHz | Through Hole | - | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | - | -55°C ~ 125°C | 7.96 MHz | - |
|
FP1007R2-R22-RFIXED IND 215NH 51A 0.48MOHM SMD |
2,394 | - |
|
数据表 |
FLAT-PAC, FP1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 51 A | 50A | - | Unshielded | 0.48mOhm | 215 nH | - | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
|
4609-RCFIXED IND 5.5UH 850MA 670MOHM TH |
1,462 | - |
|
数据表 |
4600 | Axial | Bulk | Active | Wirewound | Phenolic | ±10% | 850 mA | - | - | Unshielded | 670mOhm Max | 5.5 µH | 57 @ 7.96MHz | 80MHz | Through Hole | - | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | - | -55°C ~ 125°C | 7.96 MHz | - |
|
7847709150FIXED IND 15UH 4.6A 36 MOHM SMD |
654 | - |
|
数据表 |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | ±20% | 4.6 A | 5.7A | 1280 | Shielded | 36mOhm Max | 15 µH | - | 22MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.406" (10.30mm) |
|
IHLP5050EZER3R0M5AFIXED IND 3UH 17.9A 6.31MOHM SMD |
350 | - |
|
数据表 |
IHLP-5050EZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 17.9 A | 18.5A | - | Shielded | 6.31mOhm Max | 3 µH | - | 20.4MHz | Surface Mount | AEC-Q200 | 0.530" L x 0.508" W (13.46mm x 12.90mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
IHLP5050FDERR33M01FIXED IND 330NH 46A 0.9 MOHM SMD |
257 | - |
|
数据表 |
IHLP-5050FD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 46 A | 65A | - | Shielded | 0.9mOhm Max | 330 nH | - | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | - | -55°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
|
IHLP5050FDERR40M01FIXED IND 400NH 44A 1 MOHM SMD |
215 | - |
|
数据表 |
IHLP-5050FD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 44 A | 64A | - | Shielded | 1mOhm Max | 400 nH | - | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | - | -55°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
2111-H-RCFIXED IND 68UH 3.3A 67 MOHM TH |
2,867 | - |
|
数据表 |
2100 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | ±15% | 3.3 A | - | - | Unshielded | 67mOhm Max | 68 µH | - | - | Through Hole | - | 0.860" Dia (21.84mm) | - | -55°C ~ 105°C | 1 kHz | 0.450" (11.43mm) |
|
|
2114-H-RCFIXED IND 150UH 3.4A 62 MOHM TH |
2,594 | - |
|
数据表 |
2100 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | ±15% | 3.4 A | - | - | Unshielded | 62mOhm Max | 150 µH | - | - | Through Hole | - | 0.860" Dia (21.84mm) | - | -55°C ~ 105°C | 1 kHz | 0.450" (11.43mm) |
|
74455047FIXED IND 4.7UH 1.5A 90 MOHM SMD |
6,691 | - |
|
数据表 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.5 A | 1.5A | - | Unshielded | 90mOhm Max | 4.7 µH | - | 37MHz | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | - | -40°C ~ 100°C | 100 kHz | 0.115" (2.92mm) |
|

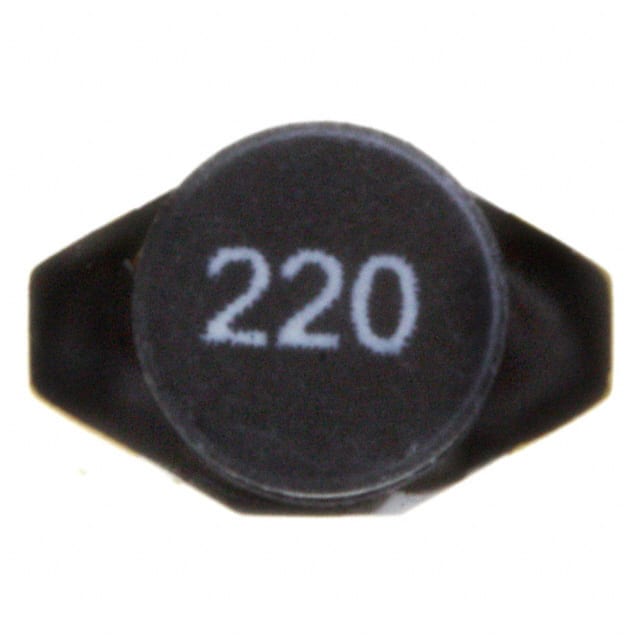

74455122FIXED IND 22UH 800MA 370MOHM SMD |
2,387 | - |
|
数据表 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 800 mA | 700mA | - | Unshielded | 370mOhm Max | 22 µH | - | 16MHz | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | - | -40°C ~ 100°C | 100 kHz | 0.115" (2.92mm) |
|

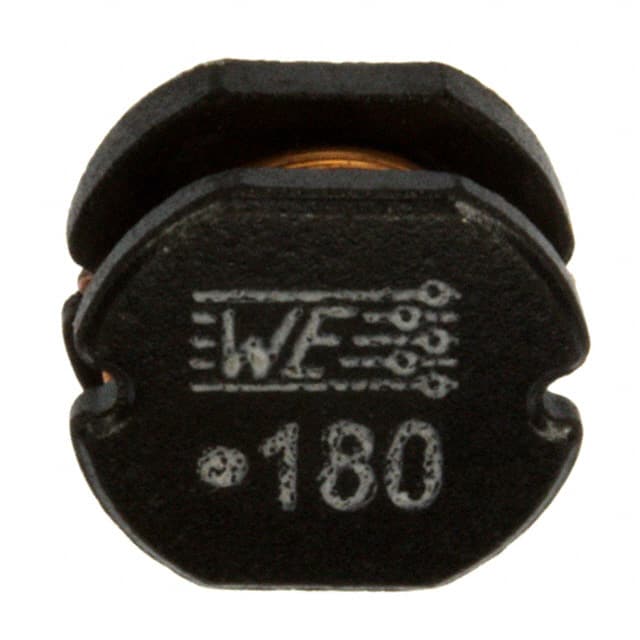

744776118FIXED IND 18UH 2.36A 90 MOHM SMD |
2,273 | - |
|
数据表 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.36 A | 2.43A | - | Unshielded | 90mOhm Max | 18 µH | - | 19MHz | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.232" (5.90mm) |
|
744776115FIXED IND 15UH 2.47A 80 MOHM SMD |
1,773 | - |
|
数据表 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.47 A | 2.88A | - | Unshielded | 80mOhm Max | 15 µH | - | 20MHz | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.232" (5.90mm) |
|
|
784771470FIXED IND 47UH 2.3A 77 MOHM SMD |
1,670 | - |
|
数据表 |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | ±20% | 2.3 A | 2.5A | 1260 | Shielded | 77mOhm Max | 47 µH | - | 10.1MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.248" (6.30mm) |
|
|
784771220FIXED IND 22UH 3.2A 40 MOHM SMD |
1,420 | - |
|
数据表 |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | ±20% | 3.2 A | 3.5A | 1260 | Shielded | 40mOhm Max | 22 µH | - | 14.9MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.248" (6.30mm) |
|
7445520FIXED IND 100UH 300MA 1.27OHM SM |
1,359 | - |
|
数据表 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 300 mA | 310mA | - | Unshielded | 1.27Ohm Max | 100 µH | - | 8MHz | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | - | -40°C ~ 100°C | 100 kHz | 0.115" (2.92mm) |
|

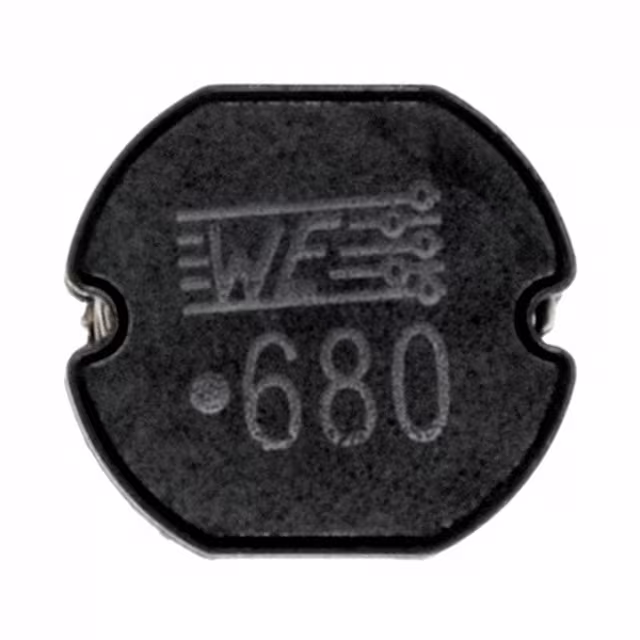

744776168FIXED IND 68UH 1.19A 220MOHM SMD |
1,239 | - |
|
数据表 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.19 A | 1.49A | - | Unshielded | 220mOhm Max | 68 µH | - | 9MHz | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.232" (5.90mm) |
|

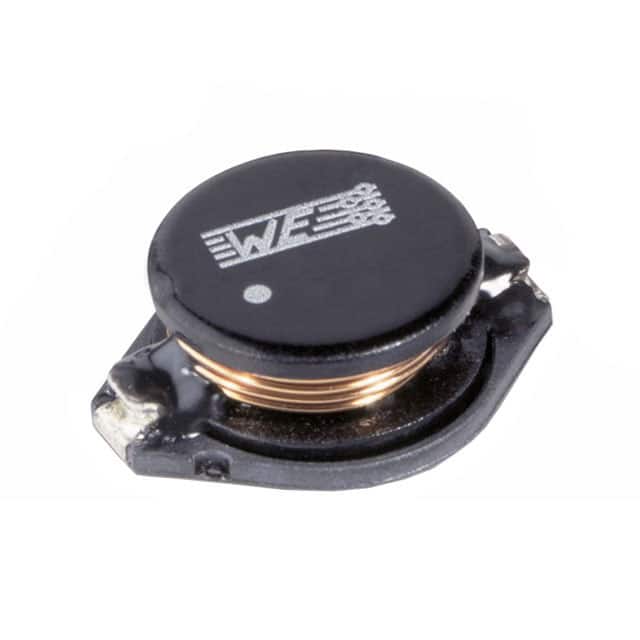

74455233330UH INDUCTOR 20% |
1,220 | - |
|
数据表 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 160 mA | 180mA | - | Unshielded | 5Ohm Max | 330 µH | - | 4MHz | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | - | -40°C ~ 125°C | 100 kHz | 0.115" (2.92mm) |
