固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744770015FIXED IND 1.5UH 10A 6 MOHM SMD |
497 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 10 A | 12A | - | Shielded | 6mOhm Max | 1.5 µH | - | 42MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.315" (8.00mm) |
|
74477008FIXED IND 750NH 19.8A 4 MOHM SMD |
473 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | -25%, +20% | 19.8 A | 21A | - | Shielded | 4mOhm Max | 750 nH | - | 110MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.315" (8.00mm) |
|

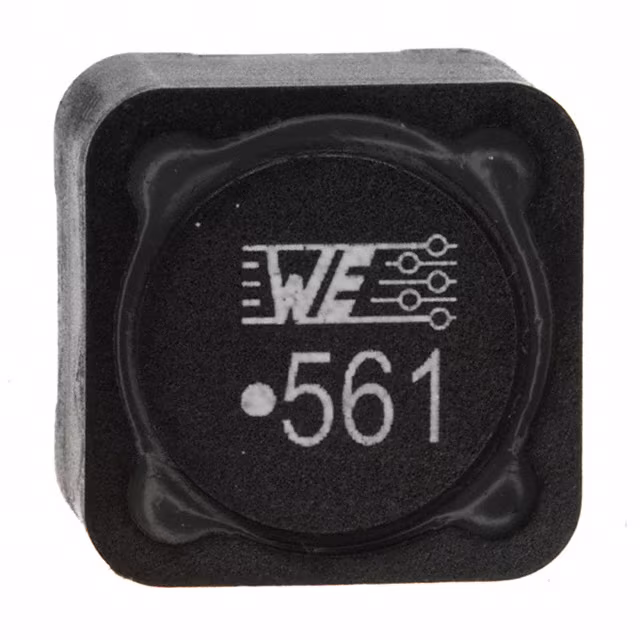

744770256FIXED IND 560UH 800MA 1.07OHM SM |
428 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 800 mA | 900mA | - | Shielded | 1.07Ohm Max | 560 µH | - | 2.5MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.315" (8.00mm) |
|
VLBS1007083T-R10LFIXED IND 100NH 70A 0.18MOHM SMD |
402 | - |
|
数据表 |
VLBS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±15% | 70 A | 115A | - | Shielded | 0.18mOhm | 100 nH | - | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.331" (8.40mm) |
|
IHLP5050EZER220M5AFIXED IND 22UH 6.9A 44.8MOHM SMD |
390 | - |
|
数据表 |
IHLP-5050EZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 6.9 A | 6.3A | - | Shielded | 44.8mOhm Max | 22 µH | - | 7.4MHz | Surface Mount | AEC-Q200 | 0.530" L x 0.508" W (13.46mm x 12.90mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
7443330068FIXED IND 680NH 20A 2.65MOHM SMD |
386 | - |
|
数据表 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 20 A | 38A | - | Shielded | 2.65mOhm Max | 680 nH | - | 140MHz | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.382" (9.70mm) |
|
|
74477007FIXED IND 7.6UH 7.4A 20 MOHM SMD |
361 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | -20%, +40% | 7.4 A | 8A | - | Shielded | 20mOhm Max | 7.6 µH | - | 21.3MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.315" (8.00mm) |
|
74477005FIXED IND 5.6UH 8A 17 MOHM SMD |
348 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | -20%, +40% | 8 A | 8.2A | - | Shielded | 17mOhm Max | 5.6 µH | - | 24MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.315" (8.00mm) |
|

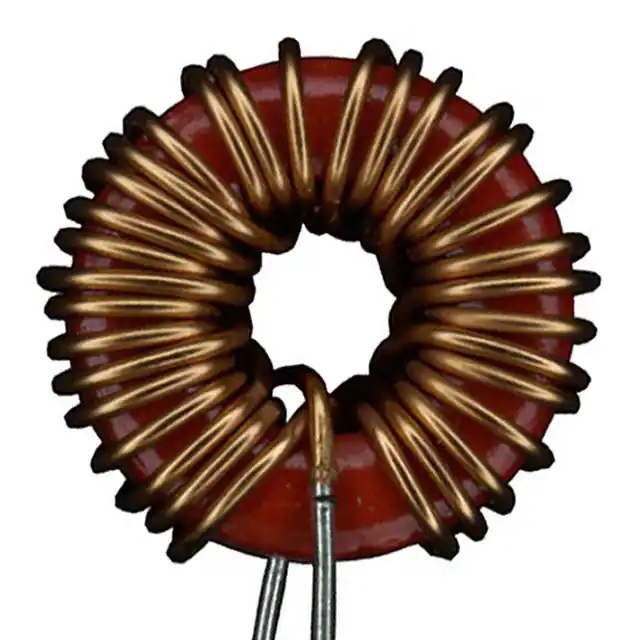

7447034FIXED IND 43UH 1A 60 MOHM TH |
243 | - |
|
数据表 |
WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | ±20% | 1 A | - | - | Unshielded | 60mOhm Max | 43 µH | - | - | Through Hole | - | 0.512" Dia x 0.256" W (13.00mm x 6.50mm) | - | -40°C ~ 105°C | 10 kHz | - |
|

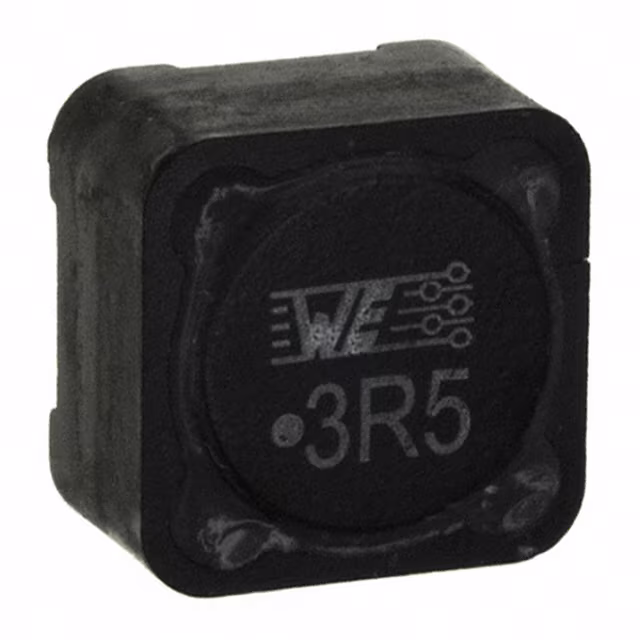

74477003FIXED IND 3.5UH 8.9A 14 MOHM SMD |
206 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | -20%, +40% | 8.9 A | 9.6A | - | Shielded | 14mOhm Max | 3.5 µH | - | 37.5MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.315" (8.00mm) |
|
744731471FIXED IND 470UH 600MA 1.3 OHM TH |
190 | - |
|
数据表 |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 600 mA | 400mA | - | Shielded | 1.3Ohm Max | 470 µH | - | 2.3MHz | Through Hole | - | 0.307" Dia (7.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.295" (7.50mm) |
|
|
744731332FIXED IND 3.3MH 180MA 8 OHM TH |
178 | - |
|
数据表 |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 180 mA | 150mA | - | Shielded | 8Ohm Max | 3.3 mH | - | 1MHz | Through Hole | - | 0.307" Dia (7.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.295" (7.50mm) |
|
|
7443330047FIXED IND 470NH 20.5A 1.85 MOHM |
139 | - |
|
数据表 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 20.5 A | 47A | - | Shielded | 1.85mOhm Max | 470 nH | - | 160MHz | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.382" (9.70mm) |
|
744731680FIXED IND 68UH 1.5A 200 MOHM TH |
137 | - |
|
数据表 |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.5 A | 1A | - | Shielded | 200mOhm Max | 68 µH | - | 6.3MHz | Through Hole | - | 0.307" Dia (7.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.295" (7.50mm) |
|
|
744731822FIXED IND 8.2MH 100MA 16 OHM TH |
133 | - |
|
数据表 |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 100 mA | 50mA | - | Shielded | 16Ohm Max | 8.2 mH | - | 600kHz | Through Hole | - | 0.307" Dia (7.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.295" (7.50mm) |
|
SBCP-11HY470HFIXED IND 47UH 2A 100 MOHM TH |
1,957 | - |
|
数据表 |
SBCP | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2 A | 4.4A | - | Unshielded | 100mOhm Max | 47 µH | - | - | Through Hole | - | 0.492" Dia (12.50mm) | - | -20°C ~ 105°C | 10 kHz | 0.472" (12.00mm) |
|
VLBU10060120T-R10LFIXED IND 100NH 83A 0.12MOHM SMD |
525 | - |
|
数据表 |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±15% | 83 A | 137A | - | Unshielded | 0.12mOhm | 100 nH | - | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.472" (12.00mm) |
|
MWLA1707S-680MTFIXED IND 68UH 80MOHM 8000MA |
490 | - |
|
数据表 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 7 A | 8A | - | Shielded | 80mOhm Max | 68 µH | - | - | Surface Mount | - | 0.689" L x 0.669" W (17.50mm x 17.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
|
IHLP5050FDER1R2M01FIXED IND 1.2UH 30A 2.5 MOHM SMD |
436 | - |
|
数据表 |
IHLP-5050FD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 30 A | 48A | - | Shielded | 2.5mOhm Max | 1.2 µH | - | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | - | -55°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
1536WFIXED IND 125UH 3.5A 80 MOHM TH |
427 | - |
|
数据表 |
1536 | Axial | Bulk | Active | Drum Core, Wirewound | Iron Powder | ±20% | 3.5 A | - | - | Unshielded | 80mOhm | 125 µH | - | 2.65MHz | Through Hole | - | 0.500" Dia x 1.250" L (12.70mm x 31.75mm) | - | - | 1 kHz | - |
