固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TYS80401R0N-10FIXED IND 1UH 6.3A 8 MOHM SMD Laird-Signal Integrity Products |
0 | - |
|
数据表 |
TYS8040 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 6.3 A | 9.85A | - | Shielded | 8mOhm Max | 1 µH | - | 89MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.165" (4.20mm) |
|

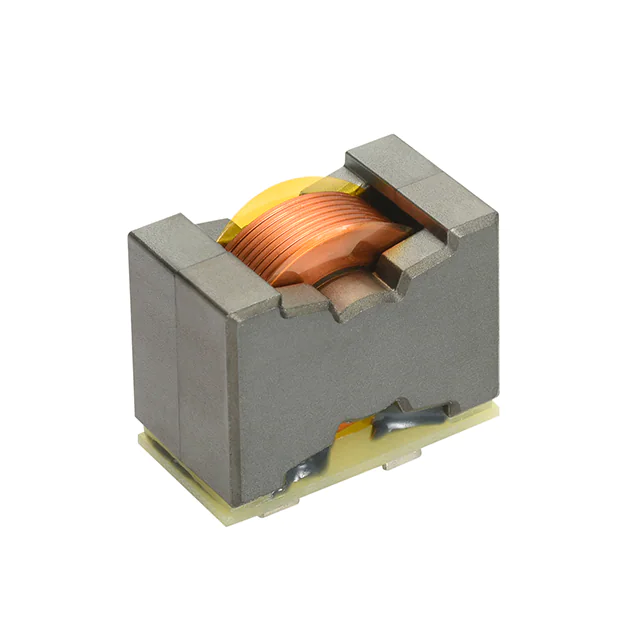

LDZ2817220K-10FIXED IND 22UH 26A 3 MOHM TH Laird-Signal Integrity Products |
0 | - |
|
数据表 |
LDZ2817 | Radial, Vertical, 4 Leads (Open) | Tray | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 26 A | 16.4A | - | Shielded | 3mOhm Max | 22 µH | - | - | Through Hole | - | 1.063" L x 0.669" W (27.00mm x 17.00mm) | - | -40°C ~ 125°C | 300 kHz | 0.906" (23.00mm) |
|
|
LDZ2817330K-10FIXED IND 33UH 26A 3 MOHM TH Laird-Signal Integrity Products |
0 | - |
|
数据表 |
LDZ2817 | Radial, Vertical, 4 Leads (Open) | Tray | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 26 A | 10.3A | - | Shielded | 3mOhm Max | 33 µH | - | - | Through Hole | - | 1.063" L x 0.669" W (27.00mm x 17.00mm) | - | -40°C ~ 125°C | 300 kHz | 0.906" (23.00mm) |
|
|
LDZ28176R8K-10FIXED IND 6.8UH 26A 3 MOHM TH Laird-Signal Integrity Products |
0 | - |
|
数据表 |
LDZ2817 | Radial, Vertical, 4 Leads (Open) | Tray | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 26 A | 56A | - | Shielded | 3mOhm Max | 6.8 µH | - | - | Through Hole | - | 1.063" L x 0.669" W (27.00mm x 17.00mm) | - | -40°C ~ 125°C | 300 kHz | 0.906" (23.00mm) |
|
MGV1004100M-12FIXED IND 10UH 7.5A 30 MOHM SMD Laird-Signal Integrity Products |
18 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 7.5 A | 12A | - | Shielded | 30mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.173" (4.40mm) |
|
|
MGV1004330M-10FIXED IND 33UH 3.5A 112MOHM SMD Laird-Signal Integrity Products |
3 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 3.5 A | 5A | - | Shielded | 112mOhm Max | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.173" (4.40mm) |
|
|
MGV10042R2M-10FIXED IND 2.2UH 12A 9 MOHM SMD Laird-Signal Integrity Products |
0 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 12 A | 25.6A | - | Shielded | 9mOhm Max | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.169" (4.30mm) |
|
|
MGV1004R47M-10FIXED IND 470NH 28.5A 1.6MOHM SM Laird-Signal Integrity Products |
0 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 28.5 A | 53A | - | Shielded | 1.6mOhm Max | 470 nH | - | - | Surface Mount | AEC-Q200 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.169" (4.30mm) |
|
|
MGV1004R56M-10FIXED IND 560NH 27.5A 1.8MOHM SM Laird-Signal Integrity Products |
0 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 27.5 A | 49A | - | Shielded | 1.8mOhm Max | 560 nH | - | - | Surface Mount | AEC-Q200 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.169" (4.30mm) |
|
|
MGV1004R19N-10FIXED IND 190NH 36A 0.9MOHM SMD Laird-Signal Integrity Products |
0 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±30% | 36 A | 70A | - | Shielded | 0.9mOhm Max | 190 nH | - | - | Surface Mount | AEC-Q200 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.173" (4.40mm) |
