固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MHE0603100M-10HIGH CURRENT LOW DCR POWER INDUC Laird-Signal Integrity Products |
3,451 | - |
|
数据表 |
MHE | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 4.7 A | 6A | - | Shielded | 62mOhm Max | 10 µH | - | 13.7MHz | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | - | -40°C ~ 150°C | 1 MHz | 0.118" (3.00mm) |
|
TYA201610R68M-10FIXED IND 680NH 2.5A 65MOHM SMD Laird-Signal Integrity Products |
15,891 | - |
|
数据表 |
TYA201610 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 2.5 A | 3.5A | 0806 | Shielded | 65mOhm Max | 680 nH | - | - | Surface Mount | AEC-Q200 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -40°C ~ 125°C | 1 MHz | 0.045" (1.15mm) |
|
|
TYA2520121R5M-10FIXED IND 1.5UH 2.4A 78 MOHM SMD Laird-Signal Integrity Products |
9,731 | - |
|
数据表 |
TYA252012 | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 2.4 A | 2.9A | 1007 | Shielded | 78mOhm Max | 1.5 µH | - | - | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.053" (1.35mm) |
|
|
TYA252010100M-10FIXED IND 10UH 650MA 740MOHM SMD Laird-Signal Integrity Products |
7,409 | - |
|
数据表 |
TYA252010 | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 650 mA | 900mA | 1007 | Shielded | 740mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.045" (1.15mm) |
|
|
TYA2520103R3M-10FIXED IND 3.3UH 1.2A 235MOHM SMD Laird-Signal Integrity Products |
2,707 | - |
|
数据表 |
TYA252010 | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 1.2 A | 1.6A | 1007 | Shielded | 235mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.045" (1.15mm) |
|
|
CPI0603G2R2R-10MULTILAYER FERRITE CHIP POWER IN Laird-Signal Integrity Products |
27,865 | - |
|
数据表 |
CPI0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | ±20% | 750 mA | - | 0603 | Unshielded | 380mOhm Max | 2.2 µH | - | 50MHz | Surface Mount | AEC-Q200 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 125°C | 1 MHz | 0.037" (0.95mm) |
|
|
TYA40203R3M-10FIXED IND 3.3UH 3.4A 88 MOHM SMD Laird-Signal Integrity Products |
3,539 | - |
|
数据表 |
TYA4020 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 3.4 A | 4.7A | - | Shielded | 88mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.083" (2.10mm) |
|
TYS40301R0N-10FIXED IND 1UH 4.15A 18.2MOHM SMD Laird-Signal Integrity Products |
98,262 | - |
|
数据表 |
TYS4030 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 4.15 A | 5.26A | - | Shielded | 18.2mOhm Max | 1 µH | - | 70MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

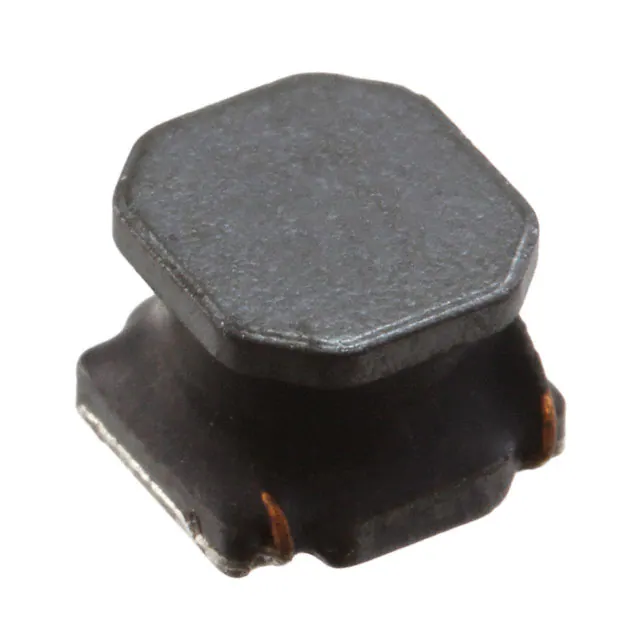

TYS5040100M-10FIXED IND 10UH 2.1A 64 MOHM SMD Laird-Signal Integrity Products |
9,056 | - |
|
数据表 |
TYS5040 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 2.1 A | 2.35A | - | Shielded | 64mOhm Max | 10 µH | - | 18MHz | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.165" (4.20mm) |
|

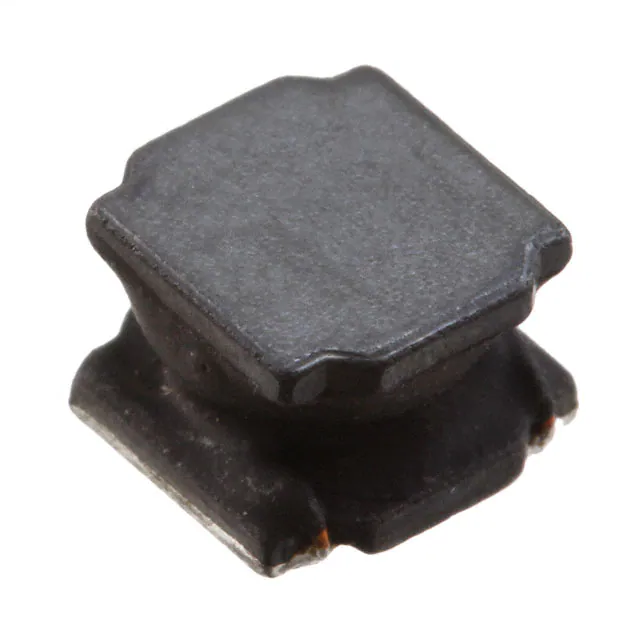

TYS6045680M-10FIXED IND 68UH 1A 289 MOHM SMD Laird-Signal Integrity Products |
90,197 | - |
|
数据表 |
TYS6045 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1 A | 1.2A | - | Shielded | 289mOhm | 68 µH | - | 6.4MHz | Surface Mount | AEC-Q200 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.185" (4.70mm) |
