固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MGV0402220M-10FIXED IND 22UH 1.2A 500MOHM SMD Laird-Signal Integrity Products |
0 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 1.2 A | 1.4A | - | Shielded | 500mOhm Max | 22 µH | - | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | - | -55°C ~ 125°C | 100 kHz | 0.094" (2.40mm) |
|
|
MGV04021R0M-12FIXED IND 1UH 5A 27 MOHM SMD Laird-Signal Integrity Products |
0 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 5 A | 8.5A | - | Shielded | 27mOhm Max | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.177" L x 0.161" W (4.50mm x 4.10mm) | - | -55°C ~ 125°C | 100 kHz | 0.094" (2.40mm) |
|
|
MGV12033R3M-10FIXED IND 3.3UH 12A 12 MOHM SMD Laird-Signal Integrity Products |
0 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | ±20% | 12 A | 27A | 0404 (1010 Metric) | Shielded | 12mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.150" (3.80mm) |
|

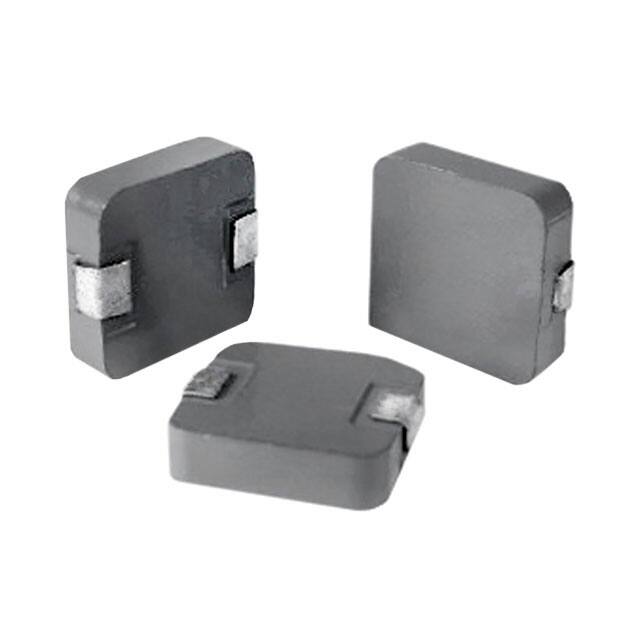

MGV12034R7M-10FIXED IND 4.7UH 10A 16 MOHM SMD Laird-Signal Integrity Products |
0 | - |
|
数据表 |
MGV | Nonstandard, 2 Lead | Tape & Reel (TR) | Obsolete | Molded | - | ±20% | 10 A | 24A | SMD | Shielded | 16mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.150" (3.80mm) |
|
1XC0236-1T0-10FIXED IND 4UH 8.5A 7 MOHM TH Laird-Signal Integrity Products |
0 | - |
|
数据表 |
- | Radial, Horizontal Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±25% | 8.5 A | - | - | Unshielded | 7mOhm | 4 µH | - | - | Through Hole | - | 0.382" Dia x 0.846" L (9.70mm x 21.50mm) | - | -40°C ~ 150°C | 10 kHz | - |
|
|
MGV0602R10N-10FIXED IND 100NH 21A 2.4MOHM SMD Laird-Signal Integrity Products |
0 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±30% | 21 A | 40A | - | Shielded | 2.4mOhm Max | 100 nH | - | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | - | -55°C ~ 125°C | 100 kHz | 0.094" (2.40mm) |
|
|
MGV0602R22N-10FIXED IND 220NH 15A 4 MOHM SMD Laird-Signal Integrity Products |
0 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±30% | 15 A | 32A | - | Shielded | 4mOhm Max | 220 nH | - | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | - | -55°C ~ 125°C | 100 kHz | 0.094" (2.40mm) |
|
|
MGV0602R56M-10FIXED IND 560NH 11A 9.3MOHM SMD Laird-Signal Integrity Products |
0 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 11 A | 18A | - | Shielded | 9.3mOhm Max | 560 nH | - | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | - | -55°C ~ 125°C | 100 kHz | 0.094" (2.40mm) |
|
|
MGV06021R2M-10FIXED IND 1.2UH 7.5A 23MOHM SMD Laird-Signal Integrity Products |
0 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 7.5 A | 13A | - | Shielded | 23mOhm Max | 1.2 µH | - | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | - | -55°C ~ 125°C | 100 kHz | 0.094" (2.40mm) |
|
|
MGV06026R8M-10FIXED IND 6.8UH 4A 73 MOHM SMD Laird-Signal Integrity Products |
0 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 4 A | 5.5A | - | Shielded | 73mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | - | -55°C ~ 125°C | 100 kHz | 0.094" (2.40mm) |
