固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MGV10044R7M-10FIXED IND 4.7UH 9.5A 16.5MOHM SM Laird-Signal Integrity Products |
335 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 9.5 A | 17A | - | Shielded | 16.5mOhm Max | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.169" (4.30mm) |
|
|
MGV1004220M-10FIXED IND 22UH 5A 74 MOHM SMD Laird-Signal Integrity Products |
175 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 5 A | 7A | - | Shielded | 74mOhm Max | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.173" (4.40mm) |
|
TYA252012100M-10FIXED IND 10UH 850MA 480MOHM SMD Laird-Signal Integrity Products |
9,868 | - |
|
数据表 |
TYA252012 | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 850 mA | 1.1A | 1007 | Shielded | 480mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.053" (1.35mm) |
|
TYS50402R2N-10FIXED IND 2.2UH 3.8A 19 MOHM SMD Laird-Signal Integrity Products |
396,138 | - |
|
数据表 |
TYS5040 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 3.8 A | 4.9A | - | Shielded | 19mOhm Max | 2.2 µH | - | 50MHz | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.165" (4.20mm) |
|
|
TYS5040220M-10FIXED IND 22UH 1.5A 129 MOHM SMD Laird-Signal Integrity Products |
150,633 | - |
|
数据表 |
TYS5040 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.5 A | 1.6A | - | Shielded | 129mOhm Max | 22 µH | - | 11MHz | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.165" (4.20mm) |
|
TYS6045101M-10FIXED IND 100UH 800MA 433MOHM SM Laird-Signal Integrity Products |
59,604 | - |
|
数据表 |
TYS6045 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 800 mA | 950mA | - | Shielded | 433mOhm | 100 µH | - | 4.2MHz | Surface Mount | AEC-Q200 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.185" (4.70mm) |
|
|
TYS5040150M-10FIXED IND 15UH 2A 86 MOHM SMD Laird-Signal Integrity Products |
20,993 | - |
|
数据表 |
TYS5040 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 2 A | 2A | - | Shielded | 86mOhm Max | 15 µH | - | 13MHz | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.165" (4.20mm) |
|
|
TYA3015150M-10FIXED IND 15UH 1.1A 610 MOHM SMD Laird-Signal Integrity Products |
12,384 | - |
|
数据表 |
TYA3015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 1.1 A | 1.45A | - | Shielded | 610mOhm Max | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.065" (1.65mm) |
-Top-MGV-Series.jpg)
|
MGV252012S2R2M-10FIXED IND 2.2UH 2.5A 89MOHM SMD Laird-Signal Integrity Products |
15,650 | - |
|
数据表 |
MGV | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | ±20% | 2.5 A | 3.5A | - | Shielded | 89mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
|

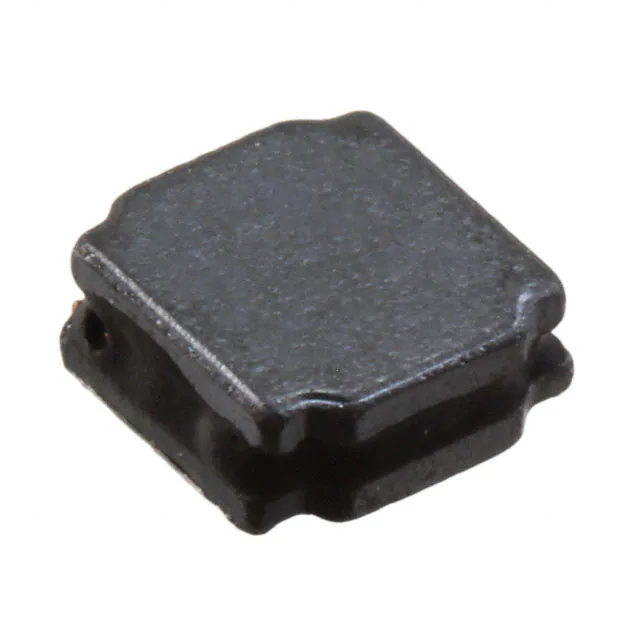

TYS40181R0N-10FIXED IND 1UH 2A 25 MOHM SMD Laird-Signal Integrity Products |
54,271 | - |
|
数据表 |
TYS4018 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 2 A | 4.8A | - | Shielded | 25mOhm Max | 1 µH | - | 80MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
