固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

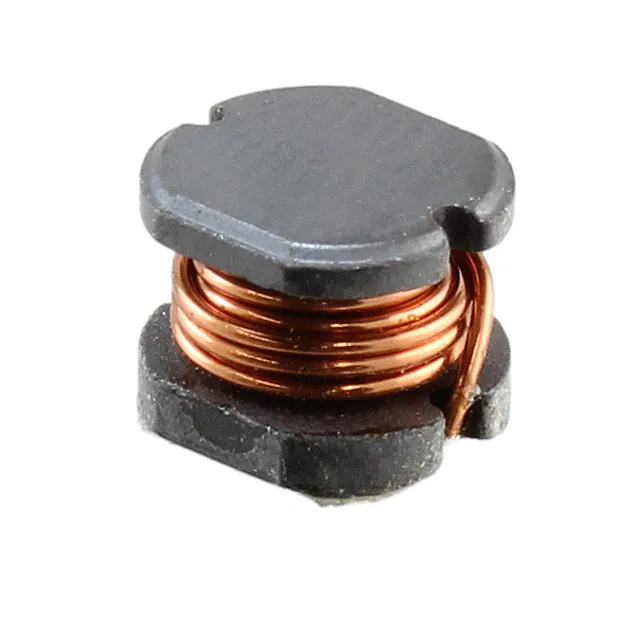

CD54NP-101KCFIXED IND 100UH 520MA 700MOHM SM Sumida America Components Inc. |
16,079 | - |
|
数据表 |
CD54 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 520 mA | - | - | Unshielded | 700mOhm Max | 100 µH | - | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | - | -40°C ~ 100°C | 1 kHz | 0.191" (4.85mm) |
|
104CDMCCDS-220MCFIXED IND 22UH 5A 66 MOHM SMD Sumida America Components Inc. |
71,111 | - |
|
数据表 |
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 5 A | 6.5A | SMD | Shielded | 66mOhm Max | 22 µH | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
104CDMCCDS-1R5MCFIXED IND 1.5UH 19A 4.2MOHM SMD Sumida America Components Inc. |
68,359 | - |
|
数据表 |
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 19 A | 29A | SMD | Shielded | 4.2mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
104CDMCCDS-470MCFIXED IND 47UH 3.2A 145MOHM SMD Sumida America Components Inc. |
40,988 | - |
|
数据表 |
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 3.2 A | 4.3A | SMD | Shielded | 145mOhm Max | 47 µH | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|

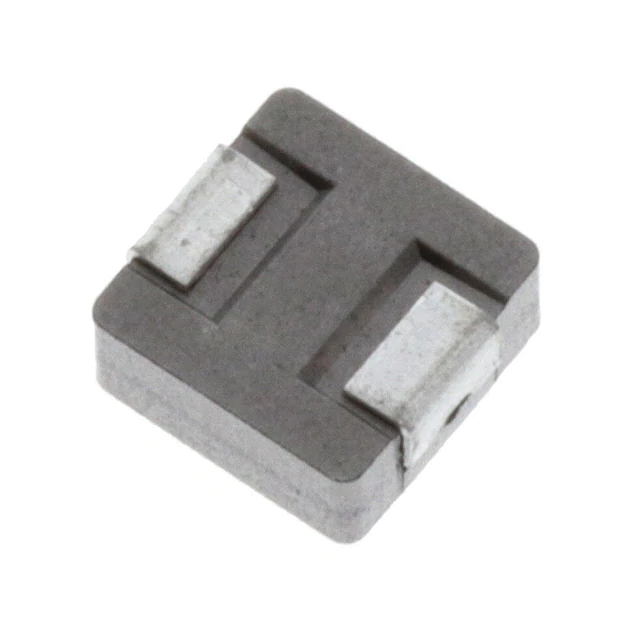

104CDMCCDS-100MCFIXED IND 10UH 7.5A 30 MOHM SMD Sumida America Components Inc. |
11,762 | - |
|
数据表 |
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 7.5 A | 10A | SMD | Shielded | 30mOhm Max | 10 µH | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|

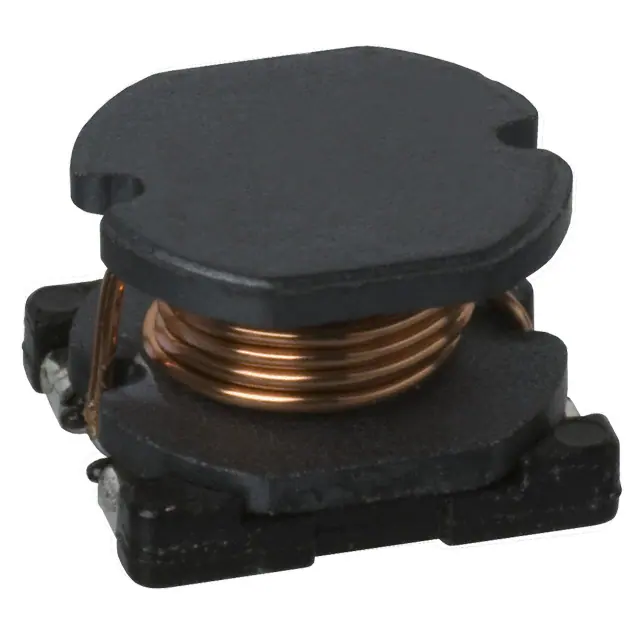

CR75NP-470KCFIXED IND 47UH 1.1A 180 MOHM SMD Sumida America Components Inc. |
71,482 | - |
|
数据表 |
CR75 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.1 A | - | - | Unshielded | 180mOhm Max | 47 µH | - | 13MHz | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 100°C | 2.52 MHz | 0.217" (5.50mm) |
|
CDRH2D18/HPNP-4R7NCFIXED IND 4.7UH 1.2A 140MOHM SMD Sumida America Components Inc. |
68,314 | - |
|
数据表 |
CDRH2D18/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 1.2 A | 1.2A | - | Shielded | 140mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
CDRH2D18/HPNP-2R2NCFIXED IND 2.2UH 1.9A 60 MOHM SMD Sumida America Components Inc. |
34,426 | - |
|
数据表 |
CDRH2D18/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 1.9 A | 1.6A | - | Shielded | 60mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
|
CDRH2D18/HPNP-100NCFIXED IND 10UH 900MA 245MOHM SMD Sumida America Components Inc. |
15,932 | - |
|
数据表 |
CDRH2D18/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 900 mA | 850mA | - | Shielded | 245mOhm Max | 10 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
|
CDRH2D14NP-2R2NCFIXED IND 2.2UH 1.6A 94 MOHM SMD Sumida America Components Inc. |
92,358 | - |
|
数据表 |
CDRH2D14 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 1.6 A | 1.5A | - | Shielded | 94mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 100°C | 100 kHz | 0.061" (1.55mm) |
