固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH3D16/HPNP-4R7NCFIXED IND 4.7UH 1.5A 116MOHM SMD Sumida America Components Inc. |
88,017 | - |
|
数据表 |
CDRH3D16/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 1.5 A | 1.2A | - | Shielded | 116mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.071" (1.80mm) |
|

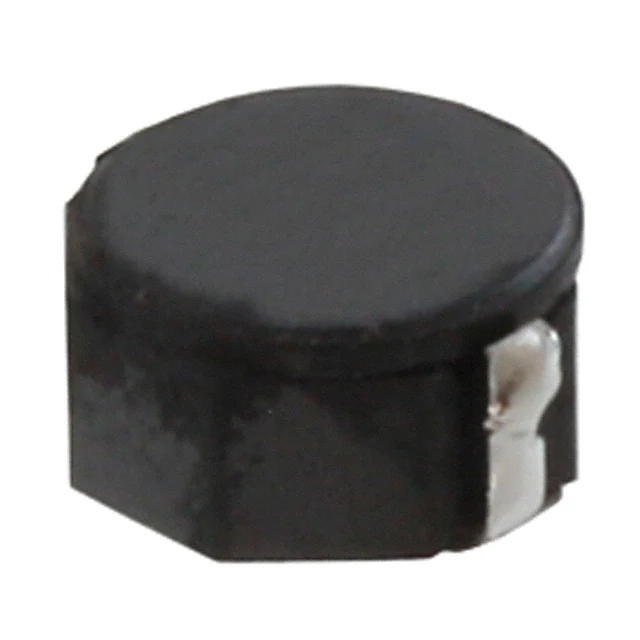

CDRH8D43NP-220NCFIXED IND 22UH 1.8A 75 MOHM SMD Sumida America Components Inc. |
46,227 | - |
|
数据表 |
CDRH8D43 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 1.8 A | 2.6A | - | Shielded | 75mOhm Max | 22 µH | - | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 100°C | 100 kHz | 0.177" (4.50mm) |
|
0630CDMCCDS-2R2MCFIXED IND 2.2UH 9.3A 15MOHM SMD Sumida America Components Inc. |
43,824 | - |
|
数据表 |
0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 9.3 A | 12.3A | SMD | Shielded | 15mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
CDRH4D28NP-100NCFIXED IND 10UH 1A 128.3 MOHM SMD Sumida America Components Inc. |
37,708 | - |
|
数据表 |
CDRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 1 A | - | - | Shielded | 128.3mOhm Max | 10 µH | - | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | - | -40°C ~ 100°C | 100 kHz | 0.118" (3.00mm) |
|
CDRH6D38NP-100NCFIXED IND 10UH 2A 38 MOHM SMD Sumida America Components Inc. |
23,512 | - |
|
数据表 |
CDRH6D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 2 A | - | - | Shielded | 38mOhm Max | 10 µH | - | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | - | -40°C ~ 100°C | 100 kHz | 0.157" (4.00mm) |
|
|
0630CDMCCDS-3R3MCFIXED IND 3.3UH 8.4A 22MOHM SMD Sumida America Components Inc. |
20,180 | - |
|
数据表 |
0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 8.4 A | 11.4A | SMD | Shielded | 22mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
0630CDMCCDS-4R7MCFIXED IND 4.7UH 6.3A 33MOHM SMD Sumida America Components Inc. |
5,577 | - |
|
数据表 |
0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 6.3 A | 6.8A | SMD | Shielded | 33mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
0630CDMCCDS-100MCFIXED IND 10UH 4A 67 MOHM SMD Sumida America Components Inc. |
5,708 | - |
|
数据表 |
0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 4 A | 5.5A | SMD | Shielded | 67mOhm Max | 10 µH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

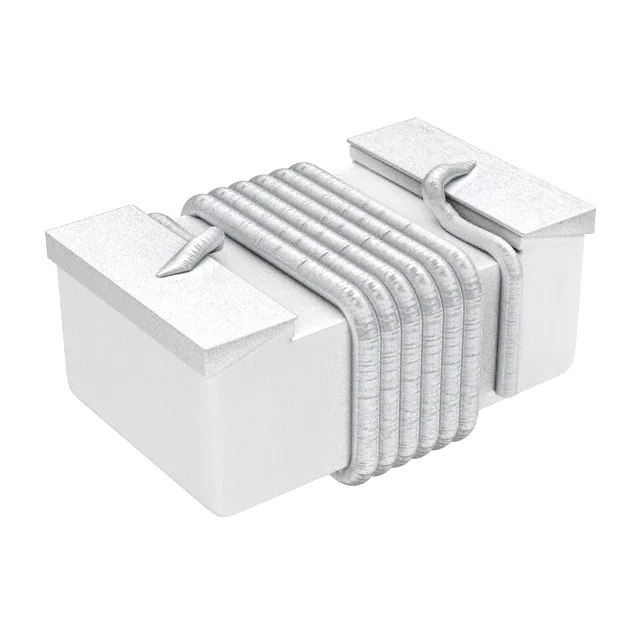

55082713400FIXED IND 270NH 180MA 1 OHM SMD Sumida America Components Inc. |
5,602 | - |
|
数据表 |
5508 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 180 mA | - | 0805 (2012 Metric) | Unshielded | 1Ohm Max | 270 nH | 35 @ 100MHz | 870MHz | Surface Mount | - | 0.087" L x 0.055" W (2.20mm x 1.40mm) | - | -55°C ~ 125°C | 100 MHz | 0.056" (1.42mm) |
|
CD54NP-100MCFIXED IND 10UH 1.44A 100MOHM SMD Sumida America Components Inc. |
13,646 | - |
|
数据表 |
CD54 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 1.44 A | - | - | Unshielded | 100mOhm Max | 10 µH | - | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | - | -40°C ~ 100°C | 2.52 MHz | 0.191" (4.85mm) |
