固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

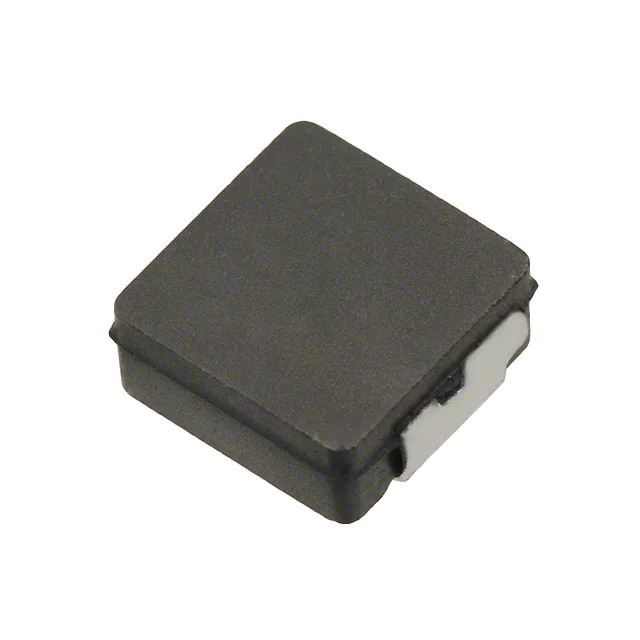

CDMC6D28NP-4R7MCFIXED IND 4.7UH 3.7A 46.4MOHM SM Sumida America Components Inc. |
37,103 | - |
|
数据表 |
CDMC6D28 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 3.7 A | 4.3A | - | Shielded | 46.4mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.285" L x 0.256" W (7.25mm x 6.50mm) | - | -40°C ~ 125°C | 1 MHz | 0.118" (3.00mm) |
|
RCH110NP-101KFIXED IND 100UH 1.7A 160 MOHM TH Sumida America Components Inc. |
5,587 | - |
|
数据表 |
RCH-110 | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.7 A | - | - | Unshielded | 160mOhm Max | 100 µH | - | 5.7MHz | Through Hole | - | 0.394" Dia (10.00mm) | - | -40°C ~ 100°C | 1 kHz | 0.413" (10.50mm) |
|
|
CDMC6D28NP-1R0MCFIXED IND 1UH 9.5A 8.8 MOHM SMD Sumida America Components Inc. |
3,796 | - |
|
数据表 |
CDMC6D28 | Nonstandard | Tape & Reel (TR) | Last Time Buy | - | Metal Composite | ±20% | 9.5 A | 8.8A | - | Shielded | 8.8mOhm Max | 1 µH | - | - | Surface Mount | - | 0.285" L x 0.256" W (7.25mm x 6.50mm) | - | -40°C ~ 125°C | 1 MHz | 0.118" (3.00mm) |
|
CDRH8D43NP-4R7NCFIXED IND 4.7UH 4.1A 22 MOHM SMD Sumida America Components Inc. |
584 | - |
|
数据表 |
CDRH8D43 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 4.1 A | 5.6A | - | Shielded | 22mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 100°C | 100 kHz | 0.177" (4.50mm) |
|
CDRH8D43NP-330NCFIXED IND 33UH 1.4A 125 MOHM SMD Sumida America Components Inc. |
2,865 | - |
|
数据表 |
CDRH8D43 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 1.4 A | 2.2A | - | Shielded | 125mOhm Max | 33 µH | - | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 100°C | 100 kHz | 0.177" (4.50mm) |
|
CDRH104RNP-151NCFIXED IND 150UH 1.15A 506MOHM SM Sumida America Components Inc. |
6,783 | - |
|
数据表 |
CDRH104R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 1.15 A | 1.12A | - | Shielded | 506mOhm Max | 150 µH | - | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -40°C ~ 100°C | 100 kHz | 0.157" (4.00mm) |
|
CDRH3D16NP-100NCFIXED IND 10UH 550MA 210MOHM SMD Sumida America Components Inc. |
28,997 | - |
|
数据表 |
CDRH3D16 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 550 mA | - | - | Shielded | 210mOhm Max | 10 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 100°C | 100 kHz | 0.071" (1.80mm) |
|
CDRH127L125NP-220MCFIXED IND 22UH 4.6A 36.7MOHM SMD Sumida America Components Inc. |
6,933 | - |
|
数据表 |
CDRH127/L125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | ±20% | 4.6 A | 5.6A | - | Shielded | 36.7mOhm Max | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
|
CDRH3D16NP-3R3NCFIXED IND 3.3UH 1.1A 85 MOHM SMD Sumida America Components Inc. |
6,391 | - |
|
数据表 |
CDRH3D16 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 1.1 A | - | - | Shielded | 85mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 100°C | 100 kHz | 0.071" (1.80mm) |
|
CDRH127L125NP-470MCFIXED IND 47UH 3.1A 83.2MOHM SMD Sumida America Components Inc. |
5,000 | - |
|
数据表 |
CDRH127/L125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | ±20% | 3.1 A | 3.9A | - | Shielded | 83.2mOhm Max | 47 µH | - | - | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
