固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH125L125NP-3R9NCFIXED IND 3.9UH 6.8A 15MOHM SMD Sumida America Components Inc. |
466 | - |
|
数据表 |
CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 6.8 A | 8.2A | - | Shielded | 15mOhm Max | 3.9 µH | - | - | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.236" (6.00mm) |
|
CDRH127L125NP-6R2NCFIXED IND 6.2UH 7.5A 14.6MOHM SM Sumida America Components Inc. |
428 | - |
|
数据表 |
CDRH127/L125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | ±30% | 7.5 A | 10.2A | - | Shielded | 14.6mOhm Max | 6.2 µH | - | - | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|

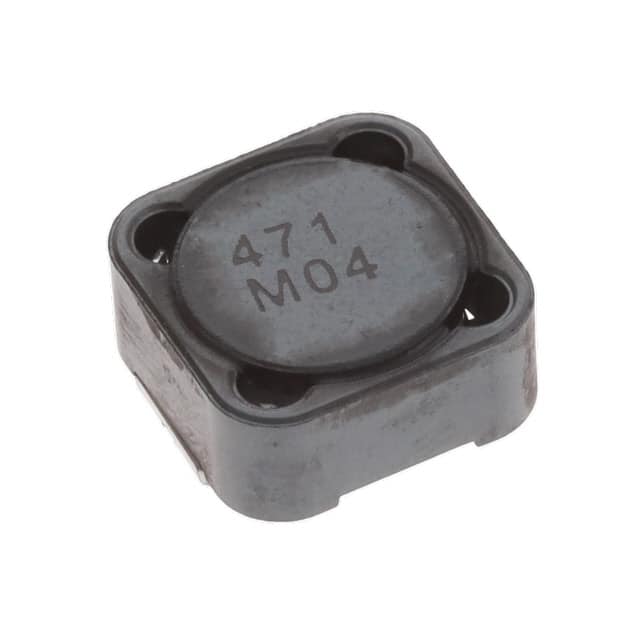

CDRH125L125NP-471MCFIXED IND 470UH 810MA 858MOHM SM Sumida America Components Inc. |
404 | - |
|
数据表 |
CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 810 mA | 750mA | - | Shielded | 858mOhm Max | 470 µH | - | - | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.236" (6.00mm) |
|
CDRH125L125NP-101MCFIXED IND 100UH 1.82A 166MOHM SM Sumida America Components Inc. |
367 | - |
|
数据表 |
CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 1.82 A | 1.7A | - | Shielded | 166mOhm Max | 100 µH | - | - | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.236" (6.00mm) |
|

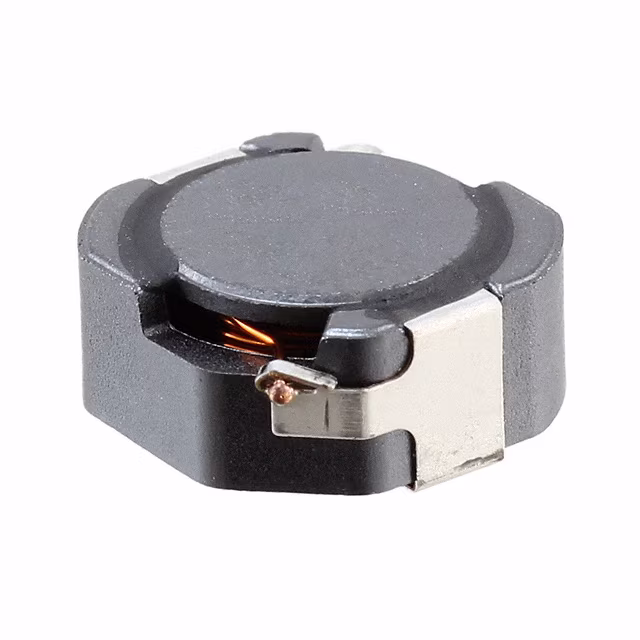

CDR6D28MNNP-100NCFIXED IND 10UH 1.8A 88.8MOHM SMD Sumida America Components Inc. |
285 | - |
|
数据表 |
CDR6D28MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 1.8 A | 2.5A | - | Shielded | 88.8mOhm Max | 10 µH | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | - | -40°C ~ 105°C | 100 kHz | 0.118" (3.00mm) |
|
CDRH125/LDNP-101MCFIXED IND 100UH 1.6A 187MOHM SMD Sumida America Components Inc. |
551 | - |
|
数据表 |
CDRH125/LD | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.6 A | - | - | Shielded | 187mOhm Max | 100 µH | - | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | - | 100 kHz | 0.236" (6.00mm) |
|
CDRH124NP-220MCFIXED IND 22UH 2.9A 66 MOHM SMD Sumida America Components Inc. |
324 | - |
|
数据表 |
CDRH124 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 2.9 A | - | - | Shielded | 66mOhm Max | 22 µH | - | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 100°C | 100 kHz | 0.177" (4.50mm) |
|
0320CDMCCDS-R47MCFIXED IND 470NH 7.5A 15.6MOHM SM Sumida America Components Inc. |
2,795 | - |
|
数据表 |
0320CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 7.5 A | 5.2A | - | Shielded | 15.6mOhm Max | 470 nH | - | - | Surface Mount | - | 0.134" L x 0.126" W (3.40mm x 3.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
0315CDMCCDS-R56MCFIXED IND 560NH 5.5A 25MOHM SMD Sumida America Components Inc. |
2,000 | - |
|
数据表 |
0315CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 5.5 A | 5.2A | - | Shielded | 25mOhm Max | 560 nH | - | - | Surface Mount | - | 0.134" L x 0.126" W (3.40mm x 3.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
CDR7D28MNNP-151NCFIXED IND 150UH 520MA 950MOHM SM Sumida America Components Inc. |
124 | - |
|
数据表 |
CDR7D28MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 520 mA | 600mA | - | Shielded | 950mOhm Max | 150 µH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 105°C | 100 kHz | 0.118" (3.00mm) |
