固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH103RNP-100NC-BFIXED IND 10UH 2.8A 59 MOHM SMD Sumida America Components Inc. |
2,580 | - |
|
数据表 |
CDRH103R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 2.8 A | 3.18A | - | Shielded | 59mOhm Max | 10 µH | - | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -40°C ~ 100°C | 100 kHz | 0.122" (3.10mm) |
|

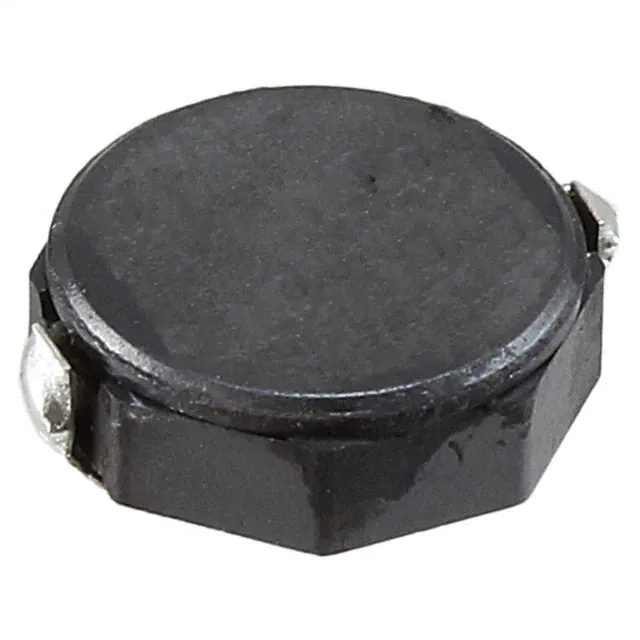

CDRH8D28HPNP-4R7NCFIXED IND 4.7UH 3.6A 40 MOHM SMD Sumida America Components Inc. |
465 | - |
|
数据表 |
CDRH8D28/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 3.6 A | 4.5A | - | Shielded | 40mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 100°C | 100 kHz | 0.118" (3.00mm) |
|

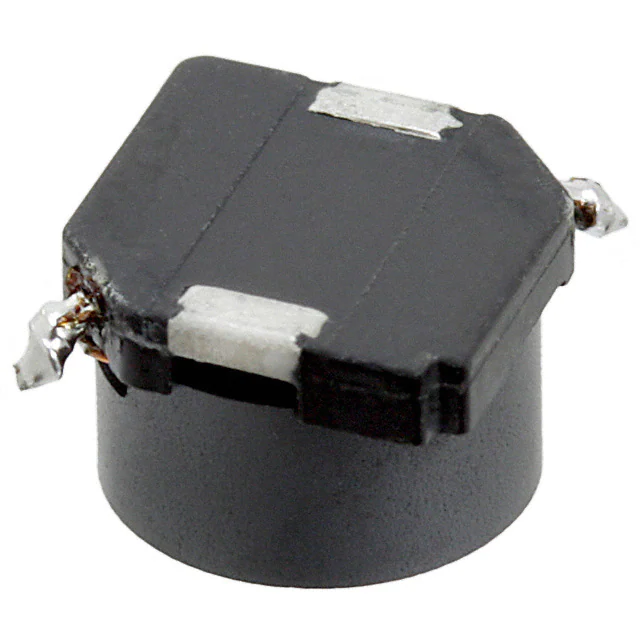

CDRR75NP-331MCFIXED IND 330UH 450MA 1.05OHM SM Sumida America Components Inc. |
3,850 | - |
|
数据表 |
CDRR | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 450 mA | 250mA | - | Shielded | 1.05Ohm Max | 330 µH | - | - | Surface Mount | - | 0.272" L x 0.272" W (6.90mm x 6.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|
CDRH80D65BT150NP-150MCFIXED IND 15UH 3.16A 35MOHM SMD Sumida America Components Inc. |
998 | - |
|
数据表 |
CDRH80D65B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 3.16 A | 3.55A | - | Shielded | 35mOhm | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.339" L x 0.323" W (8.60mm x 8.20mm) | - | -55°C ~ 150°C | 100 kHz | 0.268" (6.80mm) |
|
0830CDMCCDS-R22MCFIXED IND 220NH 27A 2.3 MOHM SMD Sumida America Components Inc. |
2,000 | - |
|
数据表 |
0830CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 27 A | 36A | - | Shielded | 2.3mOhm Max | 220 nH | - | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
0830CDMCCDS-220MCFIXED IND 22UH 3A 145 MOHM SMD Sumida America Components Inc. |
1,028 | - |
|
数据表 |
0830CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 3 A | 3.9A | - | Shielded | 145mOhm Max | 22 µH | - | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
CDRH60D45BT150NP-221MCFIXED IND 220UH 570MA 864MOHM SM Sumida America Components Inc. |
1,651 | - |
|
数据表 |
CDRH60D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 570 mA | 620mA | - | Shielded | 864mOhm | 220 µH | - | - | Surface Mount | AEC-Q200 | 0.260" L x 0.248" W (6.60mm x 6.30mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
|
0830CDMCCDS-2R2MCFIXED IND 2.2UH 10A 13 MOHM SMD Sumida America Components Inc. |
1,611 | - |
|
数据表 |
0830CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 10 A | 11.7A | - | Shielded | 13mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
0830CDMCCDS-3R3MCFIXED IND 3.3UH 9.5A 19 MOHM SMD Sumida America Components Inc. |
1,002 | - |
|
数据表 |
0830CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 9.5 A | 9.5A | - | Shielded | 19mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
0830CDMCCDS-1R0MCFIXED IND 1UH 17A 5.4 MOHM SMD Sumida America Components Inc. |
776 | - |
|
数据表 |
0830CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 17 A | 17A | - | Shielded | 5.4mOhm Max | 1 µH | - | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
