固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

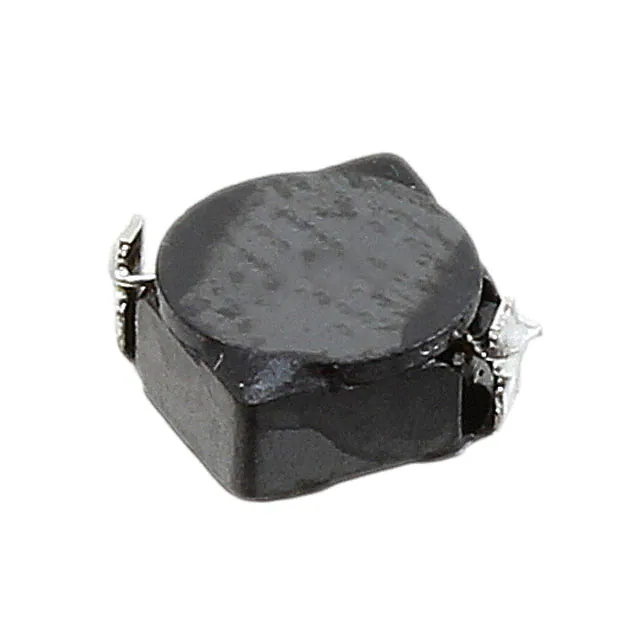

CDRH4D22HPNP-560MCFIXED IND 56UH 480MA 810MOHM SMD Sumida America Components Inc. |
1,975 | - |
|
数据表 |
CDRH4D22/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 480 mA | 650mA | - | Shielded | 810mOhm Max | 56 µH | - | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | - | -40°C ~ 100°C | 100 kHz | 0.094" (2.40mm) |
|

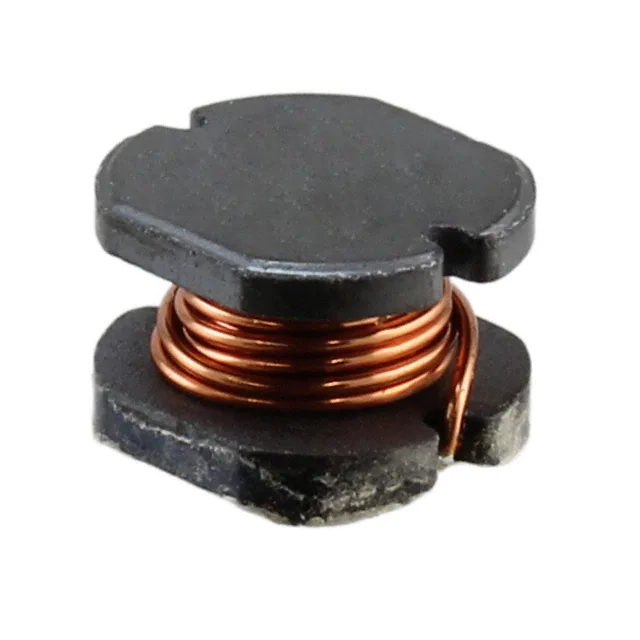

CD75NP-150KCFIXED IND 15UH 1.8A 90 MOHM SMD Sumida America Components Inc. |
1,575 | - |
|
数据表 |
CD75 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 1.8 A | - | - | Unshielded | 90mOhm Max | 15 µH | - | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 100°C | 2.52 MHz | 0.217" (5.50mm) |
|
0518CDMCCDS-R68MCFIXED IND 680NH 9.5A 12.1MOHM SM Sumida America Components Inc. |
1,496 | - |
|
数据表 |
0518CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 9.5 A | 11.5A | SMD | Shielded | 12.1mOhm Max | 680 nH | - | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
CD54NP-390LCFIXED IND 39UH 800MA 320MOHM SMD Sumida America Components Inc. |
18,685 | - |
|
数据表 |
CD54 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±15% | 800 mA | - | - | Unshielded | 320mOhm Max | 39 µH | - | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | - | -40°C ~ 100°C | 2.52 MHz | 0.191" (4.85mm) |
|

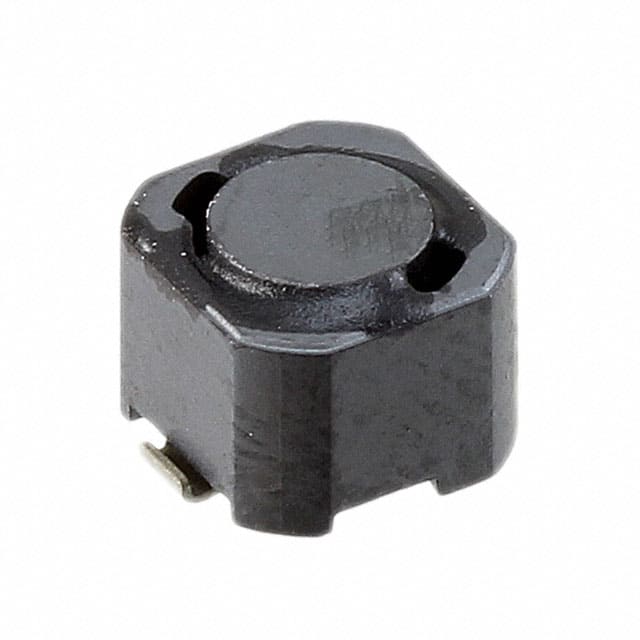

CDRH64BNP-471MC-BFIXED IND 470UH 200MA 3.93OHM SM Sumida America Components Inc. |
3,175 | - |
|
数据表 |
CDRH64B | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 200 mA | - | - | Shielded | 3.93Ohm Max | 470 µH | - | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | - | -40°C ~ 100°C | 1 kHz | 0.197" (5.00mm) |
|

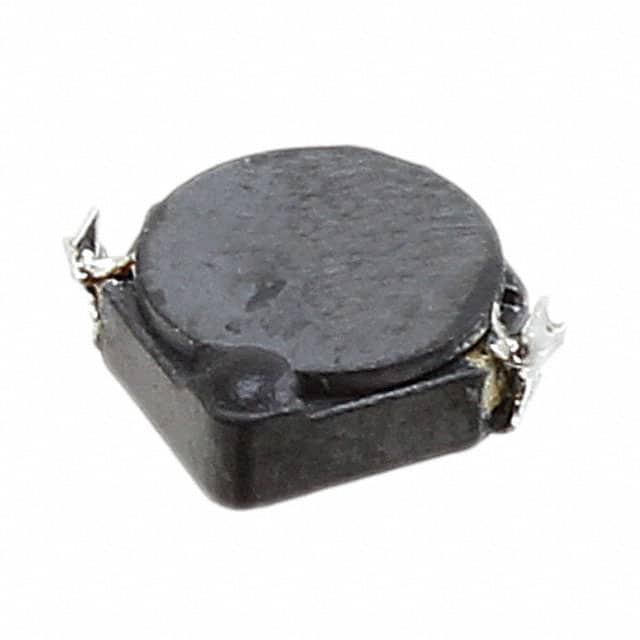

CDRH4D16NP-4R7NCFIXED IND 4.7UH 1.65A 75MOHM SMD Sumida America Components Inc. |
2,733 | - |
|
数据表 |
CDRH4D16 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±25% | 1.65 A | 1.4A | - | Shielded | 75mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | - | -40°C ~ 100°C | 100 kHz | 0.071" (1.80mm) |
|
CR43NP-150MCFIXED IND 15UH 850MA 235MOHM SMD Sumida America Components Inc. |
2,175 | - |
|
数据表 |
CR43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 850 mA | - | - | Unshielded | 235mOhm Max | 15 µH | - | 28MHz | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | - | -40°C ~ 100°C | 2.52 MHz | 0.138" (3.50mm) |
|
0618CDMCCDS-R12MCFIXED IND 120NH 25A 2.4MOHM SMD Sumida America Components Inc. |
1,450 | - |
|
数据表 |
0618CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 25 A | 30A | - | Shielded | 2.4mOhm Max | 120 nH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
0618CDMCCDS-R22MCFIXED IND 220NH 18A 3.6MOHM SMD Sumida America Components Inc. |
1,435 | - |
|
数据表 |
0618CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 18 A | 23A | - | Shielded | 3.6mOhm Max | 220 nH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
0618CDMCCDS-R15MCFIXED IND 150NH 25A 2.4MOHM SMD Sumida America Components Inc. |
1,358 | - |
|
数据表 |
0618CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 25 A | 27A | - | Shielded | 2.4mOhm Max | 150 nH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
