固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLPPI05-15-1R5M-TRHI POWER IND 1.50UH 28.0 MOHM Signal Transformer |
0 | - |
|
数据表 |
SLPPI05 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 5 A | 8.2A | - | Shielded | 34mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | - | -55°C ~ 125°C | 1 MHz | 0.059" (1.50mm) |
|
|
SLPPI05-18-6R8M-TRHI POWER IND 6.8UH 71.5 MOHM 3. Signal Transformer |
0 | - |
|
数据表 |
SLPPI05 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 2.8 A | 3A | - | Shielded | 86mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | - | -55°C ~ 125°C | 1 MHz | 0.071" (1.80mm) |
|
|
SLPPI05-18-4R7M-TRHI POWER IND 4.70UH 61.8MOHM 4 Signal Transformer |
0 | - |
|
数据表 |
SLPPI05 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 3 A | 4A | - | Shielded | 72.8mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | - | -55°C ~ 125°C | 1 MHz | 0.071" (1.80mm) |
|

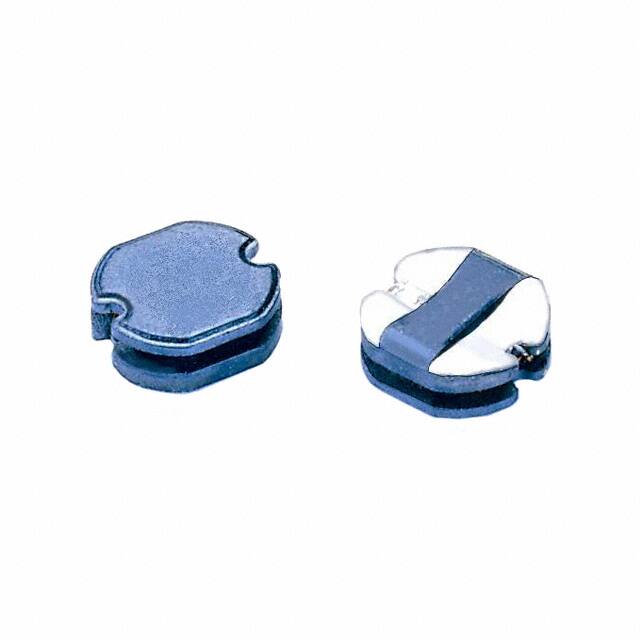

SC104-100FIXED IND 10UH 3.5A 53 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC104 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 3.5 A | 2.38A | - | Unshielded | 53mOhm Max | 10 µH | - | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.169" (4.30mm) |
|
|
SC104-101FIXED IND 100UH 1.12A 344MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SC104 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.12 A | 740mA | - | Unshielded | 344mOhm Max | 100 µH | - | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.169" (4.30mm) |
|
|
SC104-120FIXED IND 12UH 3.1A 61 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC104 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 3.1 A | 2.13A | - | Unshielded | 61mOhm Max | 12 µH | - | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.169" (4.30mm) |
|
|
SC104-121FIXED IND 120UH 1.05A 396MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SC104 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.05 A | 690mA | - | Unshielded | 396mOhm Max | 120 µH | - | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.169" (4.30mm) |
|
|
SC104-150FIXED IND 15UH 2.9A 70 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC104 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 2.9 A | 1.87A | - | Unshielded | 70mOhm Max | 15 µH | - | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.169" (4.30mm) |
|
|
SC104-151FIXED IND 150UH 980MA 544MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SC104 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 980 mA | 610mA | - | Unshielded | 544mOhm Max | 150 µH | - | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.169" (4.30mm) |
|
|
SC104-180FIXED IND 18UH 2.7A 81 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC104 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 2.7 A | 1.73A | - | Unshielded | 81mOhm Max | 18 µH | - | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.169" (4.30mm) |
