固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC52LC-2R2FIXED IND 2.2UH 3A 59 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC52LC | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 3 A | 1.63A | - | Shielded | 59mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.209" L x 0.209" W (5.30mm x 5.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
|
SC52LC-2R5FIXED IND 2.5UH 2.1A 73 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC52LC | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 2.1 A | 1.34A | - | Shielded | 73mOhm Max | 2.5 µH | - | - | Surface Mount | - | 0.209" L x 0.209" W (5.30mm x 5.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
|
SC52LC-330FIXED IND 33UH 780MA 455MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC52LC | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 780 mA | 440mA | - | Shielded | 455mOhm Max | 33 µH | - | - | Surface Mount | - | 0.209" L x 0.209" W (5.30mm x 5.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
|
SC52LC-470FIXED IND 47UH 600MA 730MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC52LC | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 600 mA | 360mA | - | Shielded | 730mOhm Max | 47 µH | - | - | Surface Mount | - | 0.209" L x 0.209" W (5.30mm x 5.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
|
SC52LC-680FIXED IND 68UH 480MA 1.13OHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC52LC | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 480 mA | 300mA | - | Shielded | 1.13Ohm Max | 68 µH | - | - | Surface Mount | - | 0.209" L x 0.209" W (5.30mm x 5.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
|
SC52LC-6R8FIXED IND 6.8UH 1.6A 105MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC52LC | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 1.6 A | 950mA | - | Shielded | 105mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.209" L x 0.209" W (5.30mm x 5.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|

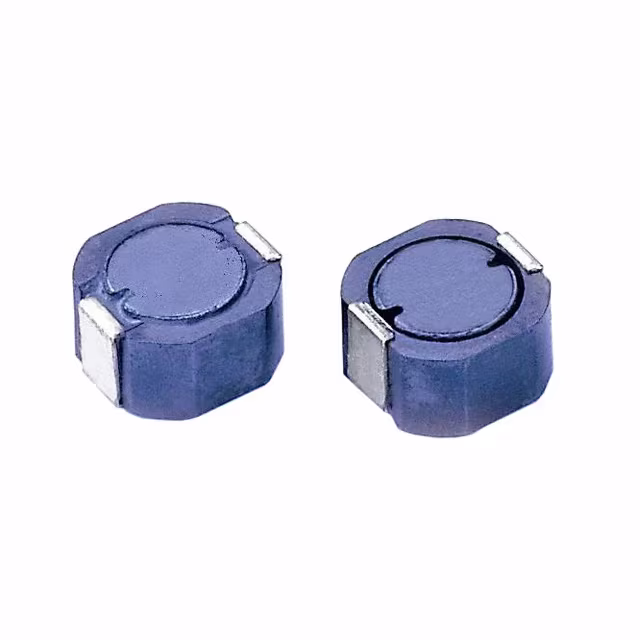

SC63CB-100FIXED IND 10UH 2.56A 50 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC63CB | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 2.56 A | 1.49A | - | Shielded | 50mOhm Max | 10 µH | - | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.138" (3.50mm) |
|
|
SC63CB-101FIXED IND 100UH 860MA 496MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SC63CB | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 860 mA | 450mA | - | Shielded | 496mOhm Max | 100 µH | - | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.138" (3.50mm) |
|
|
SC63CB-120FIXED IND 12UH 2.43A 65 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC63CB | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 2.43 A | 1.28A | - | Shielded | 65mOhm Max | 12 µH | - | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.138" (3.50mm) |
|
|
SC63CB-150FIXED IND 15UH 2.18A 80 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC63CB | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 2.18 A | 1.1A | - | Shielded | 80mOhm Max | 15 µH | - | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.138" (3.50mm) |
