固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F1A2-383812-8R2NFIXED IND 8.2UH 770MA 265 MOHM Signal Transformer |
0 | - |
|
数据表 |
F1A2-3838 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 770 mA | 840mA | - | Shielded | 265mOhm Max | 8.2 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
|
F1A2-383812-220MFIXED IND 22.0UH 480MA 650 MOHM Signal Transformer |
0 | - |
|
数据表 |
F1A2-3838 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 480 mA | 450mA | - | Shielded | 650mOhm Max | 22 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
|
F1A2-383815-5R6NFIXED IND 5.6UH 950MA 150 MOHM Signal Transformer |
0 | - |
|
数据表 |
F1A2-3838 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 950 mA | 1.2A | - | Shielded | 150mOhm Max | 5.6 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
|
F1A2-383815-3R3NFIXED IND 3.3UH 1.10A 120 MOHM Signal Transformer |
0 | - |
|
数据表 |
F1A2-3838 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 1.1 A | 1.5A | - | Shielded | 120mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
|
F1A2-383818-5R6NFIXED IND 5.6UH 1.00A 170 MOHM Signal Transformer |
0 | - |
|
数据表 |
F1A2-3838 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 1 A | 1.6A | - | Shielded | 170mOhm Max | 5.6 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
|
F1A2-383812-270MFIXED IND 27.0UH 420MA 820 MOHM Signal Transformer |
0 | - |
|
数据表 |
F1A2-3838 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 420 mA | 380mA | - | Shielded | 820mOhm Max | 27 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
HCTI-560-3.6FIXED IND 560UH 3.6A 140 MOHM TH Signal Transformer |
0 | - |
|
数据表 |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | ±15% | 3.6 A | - | - | Shielded | 140mOhm Max | 560 µH | - | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
HCTI-820-2.6FIXED IND 820UH 2.6A 270 MOHM TH Signal Transformer |
0 | - |
|
数据表 |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | ±15% | 2.6 A | - | - | Shielded | 270mOhm Max | 820 µH | - | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - | -55°C ~ 105°C | 1 kHz | - |
|

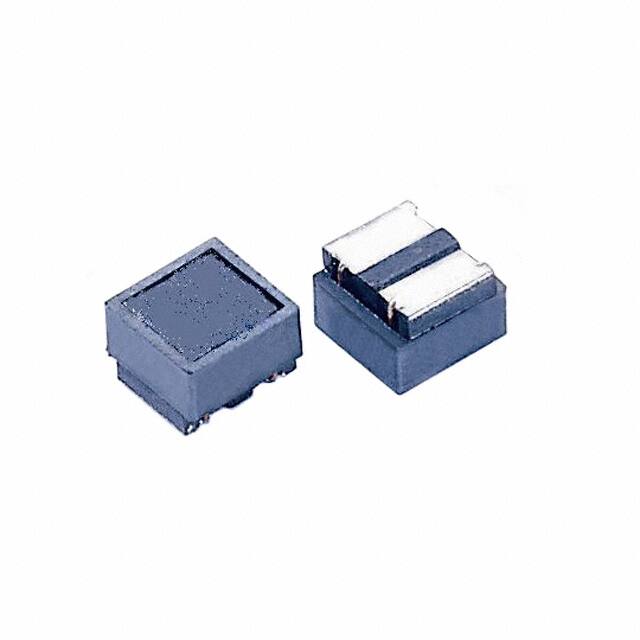

SC1212-102FIXED IND 1MH 145MA 12 OHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC1212 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±30% | 145 mA | 30mA | - | Shielded | 12Ohm Max | 1 mH | - | - | Surface Mount | - | 0.138" L x 0.138" W (3.50mm x 3.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.091" (2.30mm) |
|
|
SC1212-222FIXED IND 2.2MH 110MA 23.5OHM SM Signal Transformer |
0 | - |
|
数据表 |
SC1212 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±30% | 110 mA | 20mA | - | Shielded | 23.5Ohm Max | 2.2 mH | - | - | Surface Mount | - | 0.138" L x 0.138" W (3.50mm x 3.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.091" (2.30mm) |
