固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

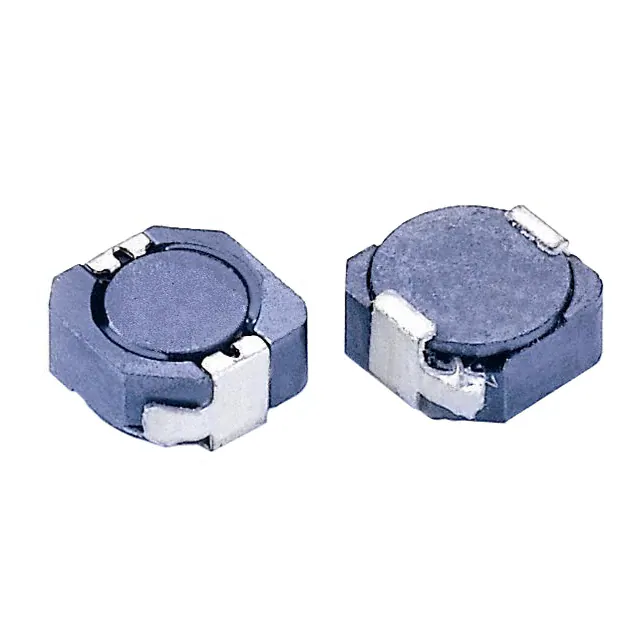

SCRH5D28R-101FIXED IND 100UH 780MA 520MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SCRH5D28R | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 780 mA | 400mA | - | Shielded | 520mOhm Max | 100 µH | - | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SCRH5D28R-120FIXED IND 12UH 2.18A 71.6MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SCRH5D28R | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 2.18 A | 1.2A | - | Shielded | 71.6mOhm Max | 12 µH | - | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SCRH5D28R-150FIXED IND 15UH 1.96A 82.4MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SCRH5D28R | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 1.96 A | 1.1A | - | Shielded | 82.4mOhm Max | 15 µH | - | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SCRH5D28R-180FIXED IND 18UH 1.76A 101.5 MOHM Signal Transformer |
0 | - |
|
数据表 |
SCRH5D28R | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 1.76 A | 1.05A | - | Shielded | 101.5mOhm Max | 18 µH | - | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SCRH5D28R-220FIXED IND 22UH 1.58A 119MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH5D28R | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 1.58 A | 950mA | - | Shielded | 119mOhm Max | 22 µH | - | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SCRH5D28R-270FIXED IND 27UH 1.5A 146 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH5D28R | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 1.5 A | 850mA | - | Shielded | 146mOhm Max | 27 µH | - | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SCRH5D28R-2R5FIXED IND 2.5UH 4.4A 17.6MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SCRH5D28R | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 4.4 A | 2.6A | - | Shielded | 17.6mOhm Max | 2.5 µH | - | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SCRH5D28R-330FIXED IND 33UH 1.35A 182.5 MOHM Signal Transformer |
0 | - |
|
数据表 |
SCRH5D28R | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 1.35 A | 760mA | - | Shielded | 182.5mOhm Max | 33 µH | - | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SCRH5D28R-390FIXED IND 39UH 1.21A 209.5 MOHM Signal Transformer |
0 | - |
|
数据表 |
SCRH5D28R | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 1.21 A | 680mA | - | Shielded | 209.5mOhm Max | 39 µH | - | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SCRH5D28R-3R3FIXED IND 3.3UH 4.18A 20.3 MOHM Signal Transformer |
0 | - |
|
数据表 |
SCRH5D28R | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 4.18 A | 2.3A | - | Shielded | 20.3mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
