固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

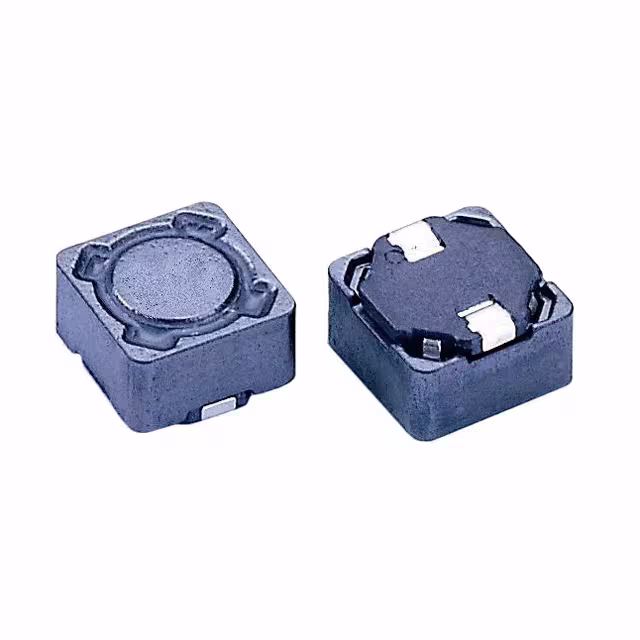

SCRH74B-120FIXED IND 12UH 1.71A 67 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH74B | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.71 A | 1.71A | - | Shielded | 67mOhm Max | 12 µH | - | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.177" (4.50mm) |
|
|
SCRH74B-121FIXED IND 120UH 520MA 660MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SCRH74B | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 520 mA | 520mA | - | Shielded | 660mOhm Max | 120 µH | - | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.177" (4.50mm) |
|
|
SCRH74B-150FIXED IND 15UH 1.47A 81 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH74B | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.47 A | 1.47A | - | Shielded | 81mOhm Max | 15 µH | - | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.177" (4.50mm) |
|
|
SCRH74B-151FIXED IND 150UH 460MA 880MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SCRH74B | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 460 mA | 460mA | - | Shielded | 880mOhm Max | 150 µH | - | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.177" (4.50mm) |
|
|
SCRH74B-180FIXED IND 18UH 1.31A 110MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH74B | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.31 A | 1.31A | - | Shielded | 110mOhm Max | 18 µH | - | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.177" (4.50mm) |
|
|
SCRH74B-181FIXED IND 180UH 420MA 980MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SCRH74B | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 420 mA | 420mA | - | Shielded | 980mOhm Max | 180 µH | - | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.177" (4.50mm) |
|
|
SCRH74B-220FIXED IND 22UH 1.23A 130MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH74B | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.23 A | 1.23A | - | Shielded | 130mOhm Max | 22 µH | - | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.177" (4.50mm) |
|
|
SCRH74B-221FIXED IND 220UH 360MA 1.17OHM SM Signal Transformer |
0 | - |
|
数据表 |
SCRH74B | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 360 mA | 360mA | - | Shielded | 1.17Ohm Max | 220 µH | - | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.177" (4.50mm) |
|
|
SCRH74B-270FIXED IND 27UH 1.12A 150MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH74B | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.12 A | 1.12A | - | Shielded | 150mOhm Max | 27 µH | - | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.177" (4.50mm) |
|
|
SCRH74B-271FIXED IND 270UH 340MA 1.64OHM SM Signal Transformer |
0 | - |
|
数据表 |
SCRH74B | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 340 mA | 340mA | - | Shielded | 1.64Ohm Max | 270 µH | - | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.177" (4.50mm) |
