固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

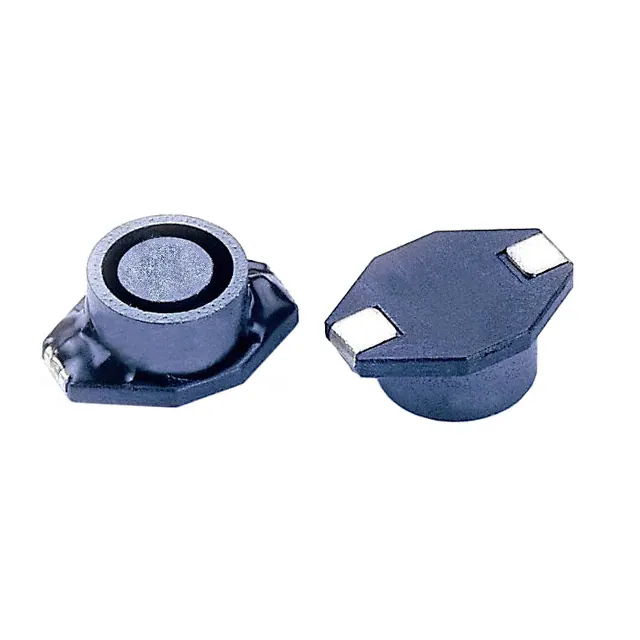

SC3316C-150FIXED IND 15UH 1.87A 150MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC3316C | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.87 A | 2A | - | Shielded | 150mOhm Max | 15 µH | - | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.200" (5.08mm) |
|
|
SC3316C-151FIXED IND 150UH 490MA 1.29OHM SM Signal Transformer |
0 | - |
|
数据表 |
SC3316C | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 490 mA | 700mA | - | Shielded | 1.29Ohm Max | 150 µH | - | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.200" (5.08mm) |
|
|
SC3316C-1R0FIXED IND 1UH 6A 21 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC3316C | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 6 A | 5.6A | - | Shielded | 21mOhm Max | 1 µH | - | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.200" (5.08mm) |
|
|
SC3316C-1R5FIXED IND 1.5UH 5.7A 22 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC3316C | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 5.7 A | 5.2A | - | Shielded | 22mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.200" (5.08mm) |
|
|
SC3316C-220FIXED IND 22UH 1.49A 207MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC3316C | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.49 A | 1.6A | - | Shielded | 207mOhm Max | 22 µH | - | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.200" (5.08mm) |
|
|
SC3316C-221FIXED IND 220UH 390MA 2.2OHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC3316C | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 390 mA | 500mA | - | Shielded | 2.2Ohm Max | 220 µH | - | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.200" (5.08mm) |
|
|
SC3316C-2R2FIXED IND 2.2UH 4.59A 32MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC3316C | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 4.59 A | 5A | - | Shielded | 32mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.200" (5.08mm) |
|
|
SC3316C-330FIXED IND 33UH 1.2A 334 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC3316C | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.2 A | 1.4A | - | Shielded | 334mOhm Max | 33 µH | - | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.200" (5.08mm) |
|
|
SC3316C-331FIXED IND 330UH 310MA 2.5OHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC3316C | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 310 mA | 380mA | - | Shielded | 2.5Ohm Max | 330 µH | - | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.200" (5.08mm) |
|
|
SC3316C-471FIXED IND 470UH 280MA 3.7OHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC3316C | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 280 mA | 350mA | - | Shielded | 3.7Ohm Max | 470 µH | - | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.200" (5.08mm) |
