固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCEP134S-R90FIXED IND 900NH 17A 3.2 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCEP134S | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 17 A | 21.6A | - | Shielded | 3.2mOhm Max | 900 nH | - | - | Surface Mount | - | 0.547" L x 0.547" W (13.90mm x 13.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.193" (4.90mm) |
|
|
SCEP134S-1R6FIXED IND 1.6UH 16A 4 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCEP134S | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 16 A | 16A | - | Shielded | 4mOhm Max | 1.6 µH | - | - | Surface Mount | - | 0.547" L x 0.547" W (13.90mm x 13.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.193" (4.90mm) |
|
|
SCEP134S-2R5FIXED IND 2.5UH 12.5A 6.6MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SCEP134S | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 12.5 A | 12.8A | - | Shielded | 6.6mOhm Max | 2.5 µH | - | - | Surface Mount | - | 0.547" L x 0.547" W (13.90mm x 13.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.193" (4.90mm) |
|
|
SCEP134S-3R6FIXED IND 3.6UH 10.8A 10.8 MOHM Signal Transformer |
0 | - |
|
数据表 |
SCEP134S | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 10.8 A | 10.9A | - | Shielded | 10.8mOhm Max | 3.6 µH | - | - | Surface Mount | - | 0.547" L x 0.547" W (13.90mm x 13.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.193" (4.90mm) |
|
|
SCEP134S-4R8FIXED IND 4.8UH 9.8A 12 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCEP134S | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 9.8 A | 9.3A | - | Shielded | 12mOhm Max | 4.8 µH | - | - | Surface Mount | - | 0.547" L x 0.547" W (13.90mm x 13.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.193" (4.90mm) |
|

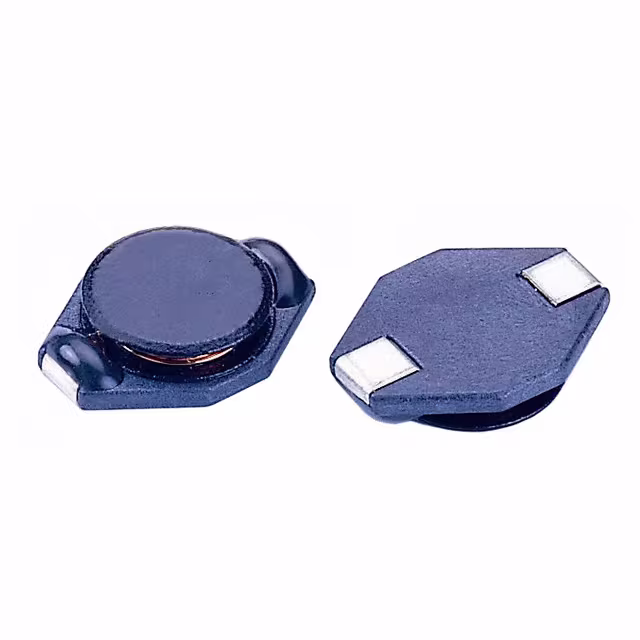

SC3308F-150FIXED IND 15UH 2.1A 150 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC3308F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 2.1 A | 2A | - | Unshielded | 150mOhm Max | 15 µH | - | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SC3308F-220FIXED IND 22UH 1.64A 230MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC3308F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.64 A | 1.6A | - | Unshielded | 230mOhm Max | 22 µH | - | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SC3308F-330FIXED IND 33UH 1.3A 300 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC3308F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.3 A | 1.4A | - | Unshielded | 300mOhm Max | 33 µH | - | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SC3308F-331FIXED IND 330UH 380MA 2.7OHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC3308F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 380 mA | 400mA | - | Unshielded | 2.7Ohm Max | 330 µH | - | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SC3308F-471FIXED IND 470UH 280MA 4 OHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC3308F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 280 mA | 300mA | - | Unshielded | 4Ohm Max | 470 µH | - | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
