固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

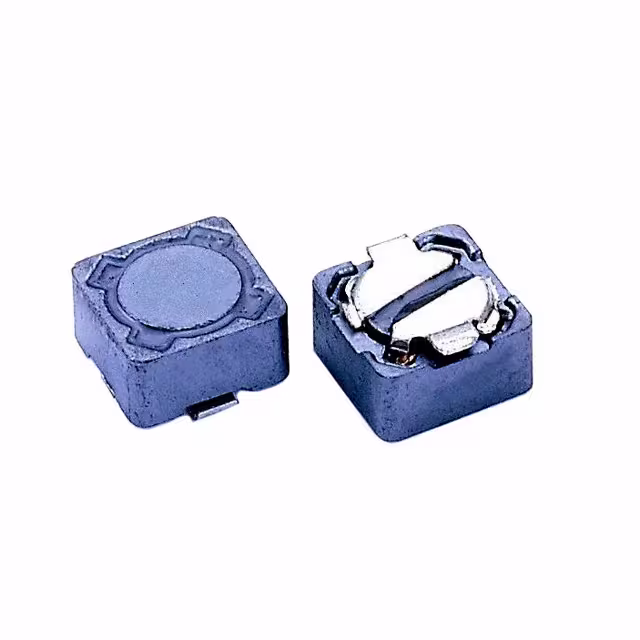

SCRH74-560FIXED IND 56UH 750MA 350MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH74 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 750 mA | 750mA | - | Shielded | 350mOhm Max | 56 µH | - | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.177" (4.50mm) |
|
|
SCRH74-681FIXED IND 680UH 220MA 4.63OHM SM Signal Transformer |
0 | - |
|
数据表 |
SCRH74 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 220 mA | 220mA | - | Shielded | 4.63Ohm Max | 680 µH | - | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.177" (4.50mm) |
|
|
SCRH74-820FIXED IND 82UH 610MA 430MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH74 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 610 mA | 610mA | - | Shielded | 430mOhm Max | 82 µH | - | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.177" (4.50mm) |
|
|
SCRH74-821FIXED IND 820UH 200MA 5.2OHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH74 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 200 mA | 200mA | - | Shielded | 5.2Ohm Max | 820 µH | - | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.177" (4.50mm) |
|

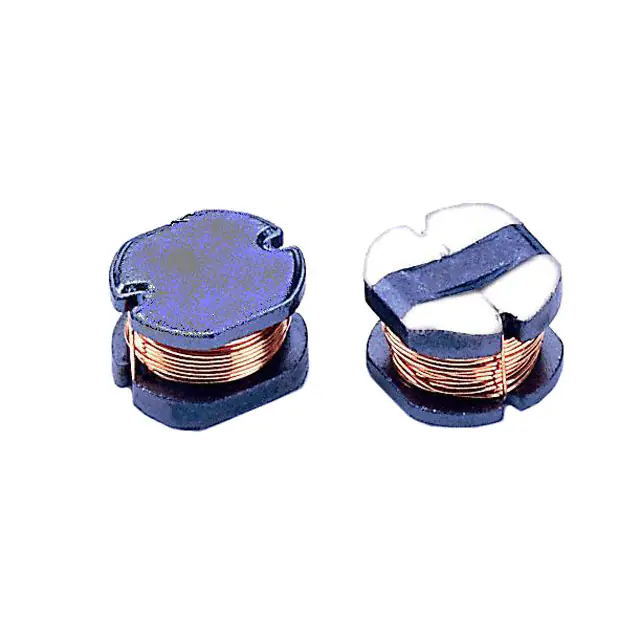

SC32-2R2FIXED IND 2.2UH 1.7A 84 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC32 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.7 A | 1.6A | - | Unshielded | 84mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.150" L x 0.130" W (3.80mm x 3.30mm) | - | -40°C ~ 125°C | 7.96 MHz | 0.094" (2.40mm) |
|
SLPPI04-15-2R2M-TRHI POWER IND 2.2UH 53.0 MOHM 5. Signal Transformer |
0 | - |
|
数据表 |
SLPPI04 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 3 A | 4.5A | - | Shielded | 62.5mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.173" L x 0.157" W (4.40mm x 4.00mm) | - | -55°C ~ 125°C | 1 MHz | 0.059" (1.50mm) |
|
SCRH105R-100FIXED IND 10UH 4.5A 26 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH105R | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 4.5 A | 3.45A | - | Shielded | 26mOhm Max | 10 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
|
SCRH105R-150FIXED IND 15UH 4A 41 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH105R | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 4 A | 2.83A | - | Shielded | 41mOhm Max | 15 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
|
SCRH105R-220FIXED IND 22UH 3.4A 61 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH105R | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 3.4 A | 2.44A | - | Shielded | 61mOhm Max | 22 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
|
SCRH105R-330FIXED IND 33UH 2.7A 84 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH105R | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 2.7 A | 1.88A | - | Shielded | 84mOhm Max | 33 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
