固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCIH1040HC-R56MFIXED IND 560NH 25A 1.8 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCIH1040HC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 25 A | 40A | - | Shielded | 1.8mOhm Max | 560 nH | - | - | Surface Mount | - | 0.453" L x 0.402" W (11.50mm x 10.20mm) | - | -55°C ~ 125°C | 200 kHz | 0.157" (4.00mm) |
|

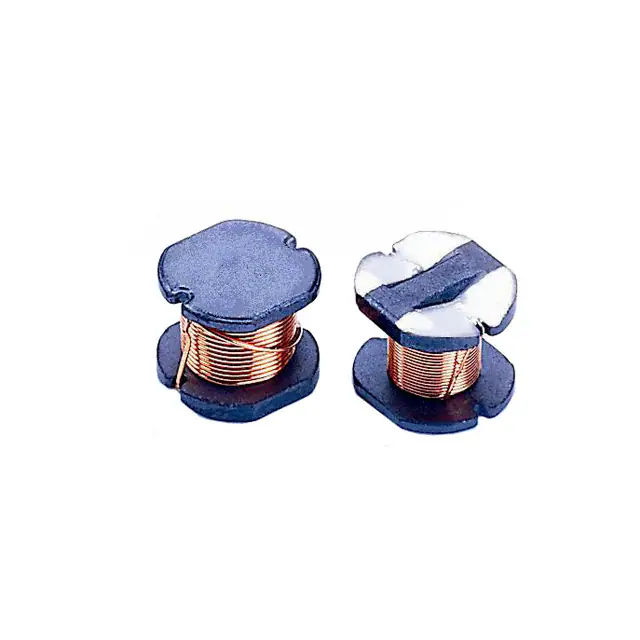

SC108-271FIXED IND 270UH 930MA 550MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SC108 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 930 mA | 950mA | - | Unshielded | 550mOhm Max | 270 µH | - | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.327" (8.30mm) |
|
|
SCIH1040HC-R68MFIXED IND 680NH 22A 2.4 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCIH1040HC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 22 A | 30A | - | Shielded | 2.4mOhm Max | 680 nH | - | - | Surface Mount | - | 0.453" L x 0.402" W (11.50mm x 10.20mm) | - | -55°C ~ 125°C | 200 kHz | 0.157" (4.00mm) |
|
|
SCIH1040HC-1R0MFIXED IND 1UH 20A 3.4 OHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCIH1040HC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 20 A | 25A | - | Shielded | 3.4Ohm Max | 1 µH | - | - | Surface Mount | - | 0.453" L x 0.402" W (11.50mm x 10.20mm) | - | -55°C ~ 125°C | 200 kHz | 0.157" (4.00mm) |
|
|
SCIH1040HC-1R2MFIXED IND 1.2UH 18A 3.8 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCIH1040HC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 18 A | 25A | - | Shielded | 3.8mOhm Max | 1.2 µH | - | - | Surface Mount | - | 0.453" L x 0.402" W (11.50mm x 10.20mm) | - | -55°C ~ 125°C | 200 kHz | 0.157" (4.00mm) |
|
|
SCIH1040HC-1R5MFIXED IND 1.5UH 14A 4.2 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCIH1040HC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 14 A | 20A | - | Shielded | 4.2mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.453" L x 0.402" W (11.50mm x 10.20mm) | - | -55°C ~ 125°C | 200 kHz | 0.157" (4.00mm) |
|
|
SC108-330FIXED IND 33UH 3.2A 80 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC108 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 3.2 A | 2.4A | - | Unshielded | 80mOhm Max | 33 µH | - | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.327" (8.30mm) |
|
|
SC108-331FIXED IND 330UH 900MA 600MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SC108 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 900 mA | 900mA | - | Unshielded | 600mOhm Max | 330 µH | - | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.327" (8.30mm) |
|
|
SC108-390FIXED IND 39UH 2.9A 90 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC108 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 2.9 A | 2.2A | - | Unshielded | 90mOhm Max | 39 µH | - | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.327" (8.30mm) |
|
|
SC108-391FIXED IND 390UH 800MA 670MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SC108 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 800 mA | 800mA | - | Unshielded | 670mOhm Max | 390 µH | - | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.327" (8.30mm) |
