固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

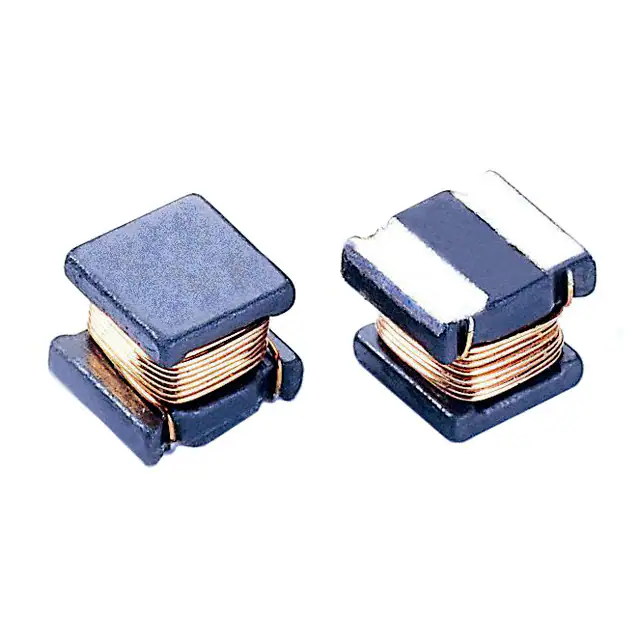

SC2220-4R7FIXED IND 4.7UH 2.8A 63 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC2220 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 2.8 A | 2.7A | - | Unshielded | 63mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.236" L x 0.209" W (6.00mm x 5.30mm) | - | -40°C ~ 125°C | 1 MHz | 0.197" (5.00mm) |
|
SC53-6R2FIXED IND 6.2UH 2.2A 85 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC53 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 2.2 A | 1.75A | - | Unshielded | 85mOhm Max | 6.2 µH | - | - | Surface Mount | - | 0.240" L x 0.217" W (6.10mm x 5.50mm) | - | -40°C ~ 125°C | 7.96 MHz | 0.130" (3.30mm) |
|
|
SC2220-680FIXED IND 68UH 680MA 938MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC2220 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 680 mA | 640mA | - | Unshielded | 938mOhm Max | 68 µH | - | - | Surface Mount | - | 0.236" L x 0.209" W (6.00mm x 5.30mm) | - | -40°C ~ 125°C | 1 MHz | 0.197" (5.00mm) |
|
|
SC53-820FIXED IND 82UH 620MA 720MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC53 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 620 mA | 480mA | - | Unshielded | 720mOhm Max | 82 µH | - | - | Surface Mount | - | 0.240" L x 0.217" W (6.10mm x 5.50mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.130" (3.30mm) |
|
|
SC53-821FIXED IND 820UH 180MA 7.8OHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC53 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 180 mA | 150mA | - | Unshielded | 7.8Ohm Max | 820 µH | - | - | Surface Mount | - | 0.240" L x 0.217" W (6.10mm x 5.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.130" (3.30mm) |
|
|
SC2220-681FIXED IND 680UH 190MA 11.34 OHM Signal Transformer |
0 | - |
|
数据表 |
SC2220 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 190 mA | 190mA | - | Unshielded | 11.34Ohm Max | 680 µH | - | - | Surface Mount | - | 0.236" L x 0.209" W (6.00mm x 5.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
SC2220-6R8FIXED IND 6.8UH 2.38A 104MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SC2220 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 2.38 A | 2A | - | Unshielded | 104mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.236" L x 0.209" W (6.00mm x 5.30mm) | - | -40°C ~ 125°C | 1 MHz | 0.197" (5.00mm) |
|
|
SC2220-R24FIXED IND 240NH 6.6A 14 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC2220 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 6.6 A | 5.3A | - | Unshielded | 14mOhm Max | 240 nH | - | - | Surface Mount | - | 0.236" L x 0.209" W (6.00mm x 5.30mm) | - | -40°C ~ 125°C | 1 MHz | 0.197" (5.00mm) |
|
|
SC2220-R42FIXED IND 420NH 5.4A 18.2MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SC2220 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 5.4 A | 4.8A | - | Unshielded | 18.2mOhm Max | 420 nH | - | - | Surface Mount | - | 0.236" L x 0.209" W (6.00mm x 5.30mm) | - | -40°C ~ 125°C | 1 MHz | 0.197" (5.00mm) |
|
SCRH124-120FIXED IND 12UH 3.9A 38 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH124 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 3.9 A | 4A | - | Shielded | 38mOhm Max | 12 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
