固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC2220-470FIXED IND 47UH 760MA 630MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC2220 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 760 mA | 800mA | - | Unshielded | 630mOhm Max | 47 µH | - | - | Surface Mount | - | 0.236" L x 0.209" W (6.00mm x 5.30mm) | - | -40°C ~ 125°C | 1 MHz | 0.197" (5.00mm) |
|

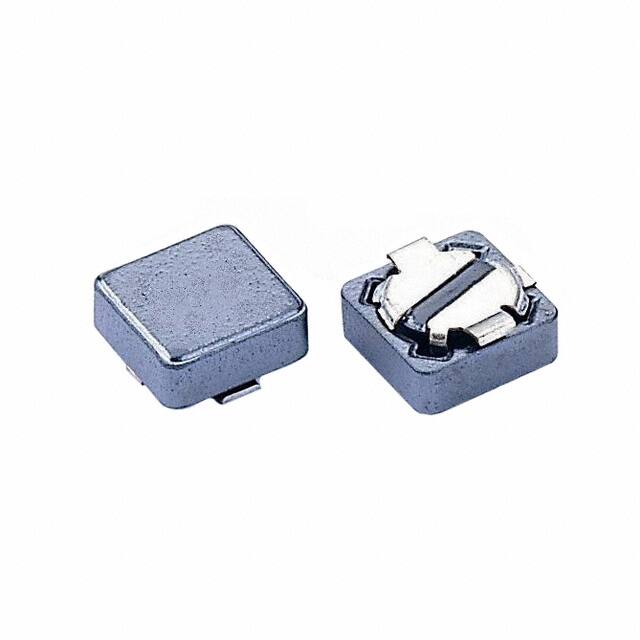

SCPH73-100FIXED IND 10UH 2A 90 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCPH73 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 2 A | 1.4A | - | Shielded | 90mOhm Max | 10 µH | - | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.142" (3.60mm) |
|
|
SCPH73-101FIXED IND 100UH 680MA 700MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SCPH73 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 680 mA | 460mA | - | Shielded | 700mOhm Max | 100 µH | - | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.142" (3.60mm) |
|
|
SCPH73-120FIXED IND 12UH 1.8A 100 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCPH73 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.8 A | 1.3A | - | Shielded | 100mOhm Max | 12 µH | - | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.142" (3.60mm) |
|
|
SCPH73-121FIXED IND 120UH 610MA 820MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SCPH73 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 610 mA | 420mA | - | Shielded | 820mOhm Max | 120 µH | - | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.142" (3.60mm) |
|
|
SCPH73-150FIXED IND 15UH 1.62A 130MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCPH73 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.62 A | 1.2A | - | Shielded | 130mOhm Max | 15 µH | - | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.142" (3.60mm) |
|
|
SCPH73-151FIXED IND 150UH 540MA 1.35OHM SM Signal Transformer |
0 | - |
|
数据表 |
SCPH73 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 540 mA | 370mA | - | Shielded | 1.35Ohm Max | 150 µH | - | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.142" (3.60mm) |
|
|
SCPH73-180FIXED IND 18UH 1.54A 150MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCPH73 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.54 A | 1.1A | - | Shielded | 150mOhm Max | 18 µH | - | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.142" (3.60mm) |
|
|
SCPH73-181FIXED IND 180UH 480MA 1.5OHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCPH73 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 480 mA | 330mA | - | Shielded | 1.5Ohm Max | 180 µH | - | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.142" (3.60mm) |
|
|
SCPH73-220FIXED IND 22UH 1.38A 170MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCPH73 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.38 A | 1A | - | Shielded | 170mOhm Max | 22 µH | - | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.142" (3.60mm) |
