固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCIHP1350-2R2MFIXED IND 2.2UH 17A 6.3 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCIHP1350 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 17 A | 28A | - | Shielded | 6.3mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | - | -55°C ~ 125°C | 200 kHz | 0.197" (5.00mm) |
|
|
SCIHP1350-4R7MFIXED IND 4.7UH 11A 15 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCIHP1350 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 11 A | 21A | - | Shielded | 15mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | - | -55°C ~ 125°C | 200 kHz | 0.197" (5.00mm) |
|
|
SCIHP1350-5R6MFIXED IND 5.6UH 10.5A 17.6 MOHM Signal Transformer |
0 | - |
|
数据表 |
SCIHP1350 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 10.5 A | 19A | - | Shielded | 17.6mOhm Max | 5.6 µH | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | - | -55°C ~ 125°C | 200 kHz | 0.197" (5.00mm) |
|
|
SCIHP1350-6R8MFIXED IND 6.8UH 10A 19.8MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCIHP1350 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 10 A | 18A | - | Shielded | 19.8mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | - | -55°C ~ 125°C | 200 kHz | 0.197" (5.00mm) |
|
|
SCIHP1367-2R2MFIXED IND 2.2UH 20A 4.2 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCIHP1367 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 20 A | 33A | - | Shielded | 4.2mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | - | -55°C ~ 125°C | 200 kHz | 0.264" (6.70mm) |
|
|
SCIHP1367-4R7MFIXED IND 4.7UH 13.5A 11.2 MOHM Signal Transformer |
0 | - |
|
数据表 |
SCIHP1367 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 13.5 A | 25A | - | Shielded | 11.2mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | - | -55°C ~ 125°C | 200 kHz | 0.264" (6.70mm) |
|
|
SCIHP1367-5R6MFIXED IND 5.6UH 12A 11.5 MOHM Signal Transformer |
0 | - |
|
数据表 |
SCIHP1367 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 12 A | 24A | - | Shielded | 11.5mOhm Max | 5.6 µH | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | - | -55°C ~ 125°C | 200 kHz | 0.264" (6.70mm) |
|
|
SCIHP1367-6R8MFIXED IND 6.8UH 11.5A 14.9 MOHM Signal Transformer |
0 | - |
|
数据表 |
SCIHP1367 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 11.5 A | 16.5A | - | Shielded | 14.9mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | - | -55°C ~ 125°C | 200 kHz | 0.264" (6.70mm) |
|
|
SCIHP1367-8R2MFIXED IND 8.2UH 10.5A 16.6 MOHM Signal Transformer |
0 | - |
|
数据表 |
SCIHP1367 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 10.5 A | 16A | - | Shielded | 16.6mOhm Max | 8.2 µH | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | - | -55°C ~ 125°C | 200 kHz | 0.264" (6.70mm) |
|

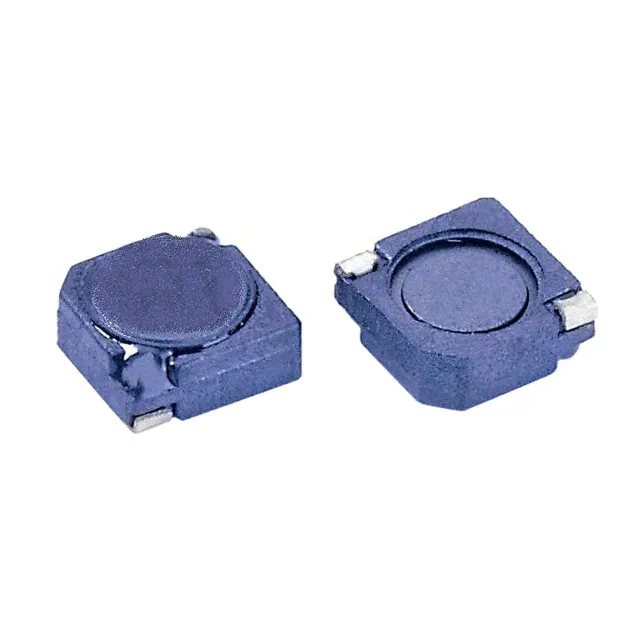

SCC5D23-150FIXED IND 15UH 1.3A 166 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCC5D23 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.3 A | 820mA | - | Shielded | 166mOhm Max | 15 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.098" (2.50mm) |
