固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

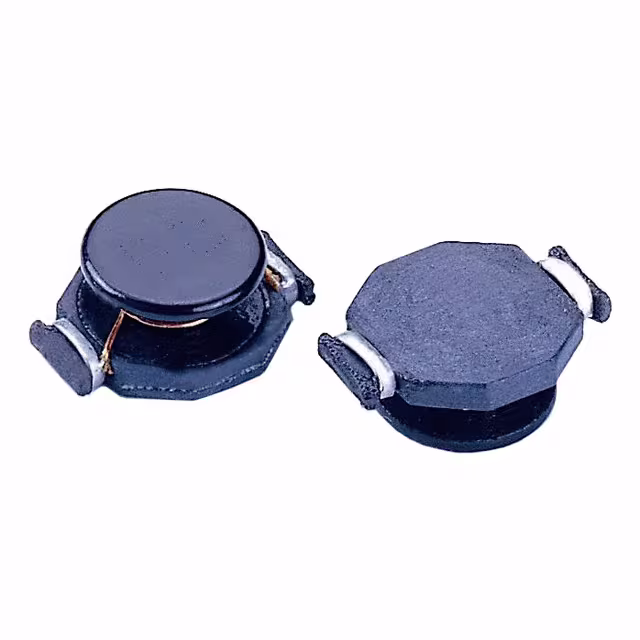

SC3316FH-6R8FIXED IND 6.8UH 4.5A 22 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC3316FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 4.5 A | 5A | - | Unshielded | 22mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.512" L x 0.394" W (13.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.250" (6.35mm) |
|
|
SC3316FH-R27FIXED IND 270NH 17.8A 2 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC3316FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 17.8 A | 20A | - | Unshielded | 2mOhm Max | 270 nH | - | - | Surface Mount | - | 0.512" L x 0.394" W (13.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.250" (6.35mm) |
|
|
SC3316FH-R56FIXED IND 560NH 11.5A 5 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC3316FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 11.5 A | 13A | - | Unshielded | 5mOhm Max | 560 nH | - | - | Surface Mount | - | 0.512" L x 0.394" W (13.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.250" (6.35mm) |
|
HCLC-390-3.8TOR IND LOW CORE LOSS 390UH 3.8A Signal Transformer |
0 | - |
|
数据表 |
HCLC | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | ±15% | 3.8 A | - | - | Shielded | 84mOhm Max | 390 µH | - | - | Through Hole | - | 1.100" Dia x 0.550" W (27.94mm x 13.97mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
|
HCLC-560-3.5TOR IND LOW CORE LOSS 560UH 3.5A Signal Transformer |
0 | - |
|
数据表 |
HCLC | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | ±15% | 3.5 A | - | - | Shielded | 101mOhm Max | 560 µH | - | - | Through Hole | - | 1.100" Dia x 0.550" W (27.94mm x 13.97mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
|
HCLC-470-3.7TOR IND LOW CORE LOSS 470UH 3.7A Signal Transformer |
0 | - |
|
数据表 |
HCLC | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | ±15% | 3.7 A | - | - | Shielded | 92mOhm Max | 470 µH | - | - | Through Hole | - | 1.100" Dia x 0.550" W (27.94mm x 13.97mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
SCEP104L-1R4FIXED IND 1.4UH 13.5A 5.9MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SCEP104L | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 13.5 A | 12.2A | - | Shielded | 5.9mOhm Max | 1.4 µH | - | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
SCEP104L-2R2FIXED IND 2.2UH 10.5A 11.8 MOHM Signal Transformer |
0 | - |
|
数据表 |
SCEP104L | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 10.5 A | 9.8A | - | Shielded | 11.8mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
SCEP104L-3R2FIXED IND 3.2UH 8A 18.6 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCEP104L | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 8 A | 8.1A | - | Shielded | 18.6mOhm Max | 3.2 µH | - | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
SCEP104L-4R3FIXED IND 4.3UH 7.2A 21.8MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SCEP104L | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 7.2 A | 7A | - | Shielded | 21.8mOhm Max | 4.3 µH | - | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
