固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

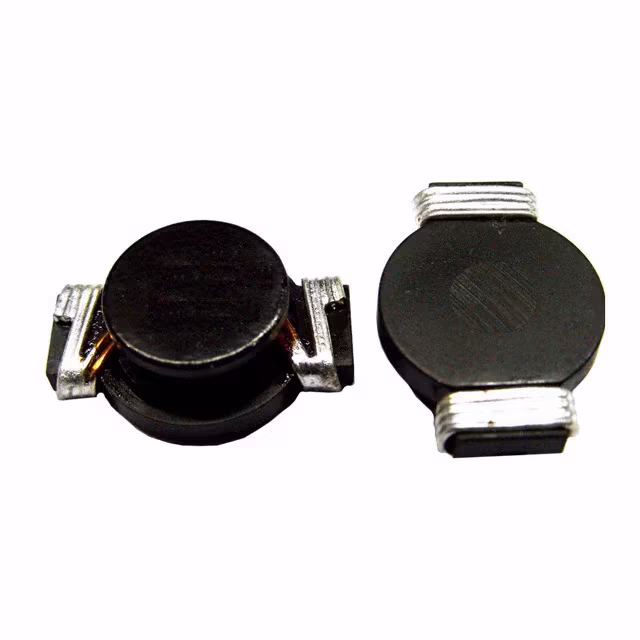

SC5022FH-220FIXED IND 22UH 3.6A 50 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 3.6 A | 7.6A | - | Unshielded | 50mOhm Max | 22 µH | - | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
|
SC5022FH-2R2FIXED IND 2.2UH 12A 6.1 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 12 A | 20A | - | Unshielded | 6.1mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
|
SC5022FH-2R7FIXED IND 2.7UH 10A 8 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 10 A | 18A | - | Unshielded | 8mOhm Max | 2.7 µH | - | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
|
SC5022FH-3R3FIXED IND 3.3UH 9.4A 9 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 9.4 A | 17A | - | Unshielded | 9mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
|
SC5022FH-3R9FIXED IND 3.9UH 9A 10 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 9 A | 15A | - | Unshielded | 10mOhm Max | 3.9 µH | - | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
|
SC5022FH-4R7FIXED IND 4.7UH 8A 14 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 8 A | 13A | - | Unshielded | 14mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
|
SC5022FH-6R8FIXED IND 6.8UH 6.5A 18 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 6.5 A | 12A | - | Unshielded | 18mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
|
SC5022FH-R47FIXED IND 470NH 20A 2 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 20 A | 40A | - | Unshielded | 2mOhm Max | 470 nH | - | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
|
SC5022FH-R82FIXED IND 820NH 17A 2.6 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 17 A | 30A | - | Unshielded | 2.6mOhm Max | 820 nH | - | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|

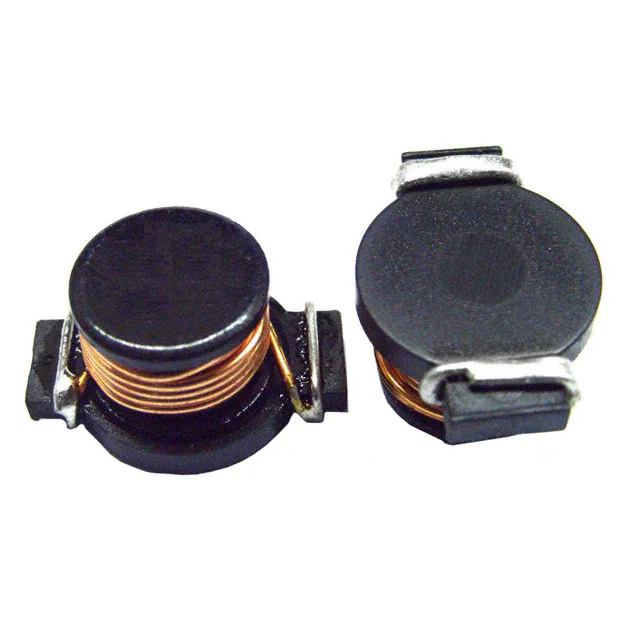

SC5040FH-120FIXED IND 12UH 8.5A 15.5MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC5040FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 8.5 A | 15.9A | - | Unshielded | 15.5mOhm Max | 12 µH | - | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | - | -40°C ~ 125°C | 100 kHz | 0.484" (12.30mm) |
