固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCLC-180-4.7TOR IND LOW CORE LOSS 180UH 4.7A Signal Transformer |
0 | - |
|
数据表 |
HCLC | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | ±15% | 4.7 A | - | - | Shielded | 57mOhm Max | 180 µH | - | - | Through Hole | - | 1.100" Dia x 0.550" W (27.94mm x 13.97mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
SC3316F-101FIXED IND 100UH 1.3A 280MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC3316F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.3 A | 1.2A | - | Unshielded | 280mOhm Max | 100 µH | - | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.205" (5.21mm) |
|
|
F1A1-303015-8R2NFIXED IND 8.2UH 720MA 572 MOHM Signal Transformer |
0 | - |
|
数据表 |
F1A1-303015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | ±30% | 720 mA | 480mA | - | Shielded | 572Ohm Max | 8.2 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.059" (1.50mm) |
|
|
F1A1-303015-120MFIXED IND 12.0UH 650MA 702MHOM Signal Transformer |
0 | - |
|
数据表 |
F1A1-303015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | ±20% | 650 mA | 400mA | - | Shielded | 702Ohm Max | 12 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.059" (1.50mm) |
|
|
F1A1-303015-150MFIXED IND 15.0UH 500MA 949 MOHM Signal Transformer |
0 | - |
|
数据表 |
F1A1-303015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | ±20% | 500 mA | 350mA | - | Shielded | 949Ohm Max | 15 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.059" (1.50mm) |
|
|
F1A1-303015-180MFIXED IND 18.0UH 400MA 1090 MOHM Signal Transformer |
0 | - |
|
数据表 |
F1A1-303015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | ±20% | 400 mA | 300mA | - | Shielded | 1.09kOhm Max | 18 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.059" (1.50mm) |
|
|
F1A1-303015-4R7NFIXED IND 4.7UH 850MA 338 MOHM Signal Transformer |
0 | - |
|
数据表 |
F1A1-303015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | ±30% | 850 mA | 600mA | - | Shielded | 338Ohm Max | 4.7 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.059" (1.50mm) |
|

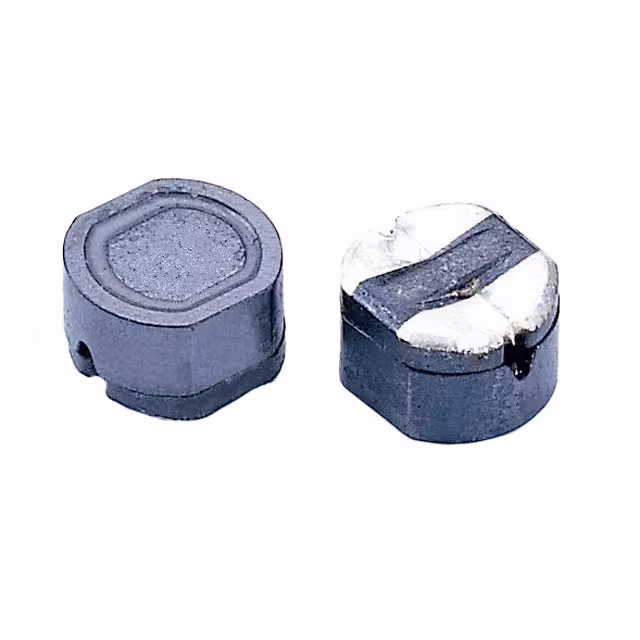

SCR74B-100FIXED IND 10UH 3.3A 70 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCR74B | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 3.3 A | 1.65A | - | Shielded | 70mOhm Max | 10 µH | - | - | Surface Mount | - | 0.327" L x 0.295" W (8.30mm x 7.50mm) | - | -40°C ~ 125°C | 2.52 kHz | 0.197" (5.00mm) |
|
|
SLPPI03-10-R15MHI POWER IND 0.15UH 9.3MOHM 12. Signal Transformer |
0 | - |
|
数据表 |
SLPPI03 | Nonstandard | Bulk | Active | Molded | - | ±20% | 7 A | 10A | - | Shielded | 12mOhm Max | 150 nH | - | - | Surface Mount | - | 0.134" L x 0.118" W (3.40mm x 3.00mm) | - | -55°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|
SCRH125-221FIXED IND 220UH 1.29A 400MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SCRH125 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.29 A | 800mA | - | Shielded | 400mOhm Max | 220 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.236" (6.00mm) |
