固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

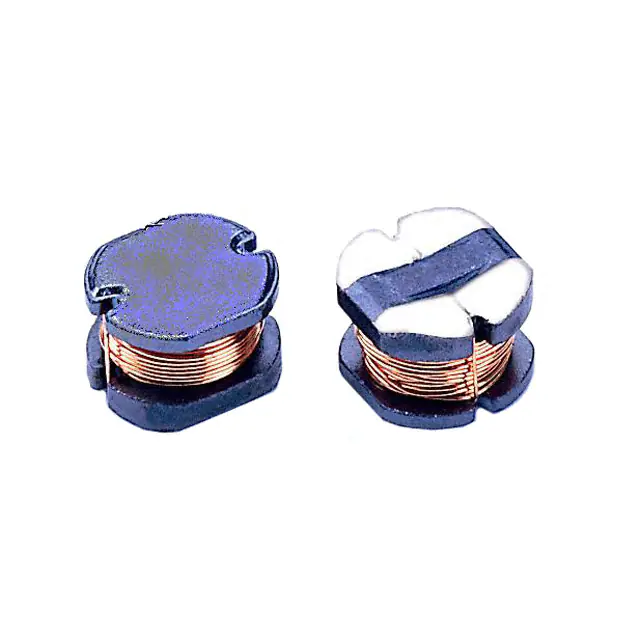

SC105-151FIXED IND 150UH 1.05A 470MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SC105 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.05 A | 780mA | - | Unshielded | 470mOhm Max | 150 µH | - | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.224" (5.70mm) |
|
|
SC105-470FIXED IND 47UH 1.8A 170 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC105 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.8 A | 1.28A | - | Unshielded | 170mOhm Max | 47 µH | - | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.224" (5.70mm) |
|
SC32-101FIXED IND 100UH 290MA 3.2OHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC32 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 290 mA | 220mA | - | Unshielded | 3.2Ohm Max | 100 µH | - | - | Surface Mount | - | 0.150" L x 0.130" W (3.80mm x 3.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.094" (2.40mm) |
|
|
SC32-120FIXED IND 12UH 720MA 397MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC32 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 720 mA | 650mA | - | Unshielded | 397mOhm Max | 12 µH | - | - | Surface Mount | - | 0.150" L x 0.130" W (3.80mm x 3.30mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.094" (2.40mm) |
|
|
SC32-121FIXED IND 120UH 250MA 4.1OHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC32 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 250 mA | 200mA | - | Unshielded | 4.1Ohm Max | 120 µH | - | - | Surface Mount | - | 0.150" L x 0.130" W (3.80mm x 3.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.094" (2.40mm) |
|
|
SC32-151FIXED IND 150UH 230MA 4.78OHM SM Signal Transformer |
0 | - |
|
数据表 |
SC32 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 230 mA | 170mA | - | Unshielded | 4.78Ohm Max | 150 µH | - | - | Surface Mount | - | 0.150" L x 0.130" W (3.80mm x 3.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.094" (2.40mm) |
|
|
SC32-180FIXED IND 18UH 640MA 592MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC32 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 640 mA | 520mA | - | Unshielded | 592mOhm Max | 18 µH | - | - | Surface Mount | - | 0.150" L x 0.130" W (3.80mm x 3.30mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.094" (2.40mm) |
|
|
SC32-181FIXED IND 180UH 200MA 7.65OHM SM Signal Transformer |
0 | - |
|
数据表 |
SC32 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 200 mA | 150mA | - | Unshielded | 7.65Ohm Max | 180 µH | - | - | Surface Mount | - | 0.150" L x 0.130" W (3.80mm x 3.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.094" (2.40mm) |
|
|
SC32-1R0FIXED IND 1UH 2.6A 43 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC32 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 2.6 A | 2.34A | - | Unshielded | 43mOhm Max | 1 µH | - | - | Surface Mount | - | 0.150" L x 0.130" W (3.80mm x 3.30mm) | - | -40°C ~ 125°C | 7.96 MHz | 0.094" (2.40mm) |
|
|
SC32-1R4FIXED IND 1.4UH 2.3A 50 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC32 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 2.3 A | 2.04A | - | Unshielded | 50mOhm Max | 1.4 µH | - | - | Surface Mount | - | 0.150" L x 0.130" W (3.80mm x 3.30mm) | - | -40°C ~ 125°C | 7.96 MHz | 0.094" (2.40mm) |
