固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

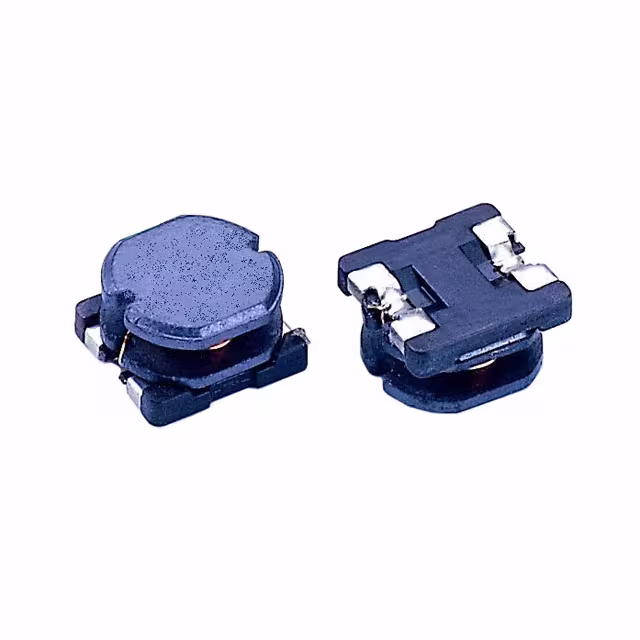

SC73B-820FIXED IND 82UH 960MA 470MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 960 mA | 540mA | - | Unshielded | 470mOhm Max | 82 µH | - | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.177" (4.50mm) |
|
SCIHP1338-1R0MFIXED IND 1UH 22A 3.5 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCIHP1338 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 22 A | 38A | - | Shielded | 3.5mOhm Max | 1 µH | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | - | -55°C ~ 125°C | 200 kHz | 0.150" (3.80mm) |
|
|
SCIHP1338-2R2MFIXED IND 2.2UH 16A 8 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCIHP1338 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 16 A | 25A | - | Shielded | 8mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | - | -55°C ~ 125°C | 200 kHz | 0.150" (3.80mm) |
|
|
SCIHP1338-3R3MFIXED IND 3.3UH 12A 12 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCIHP1338 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 12 A | 22A | - | Shielded | 12mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | - | -55°C ~ 125°C | 200 kHz | 0.150" (3.80mm) |
|
|
SCIHP1338-4R7MFIXED IND 4.7UH 10A 15 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCIHP1338 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 10 A | 18A | - | Shielded | 15mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | - | -55°C ~ 125°C | 200 kHz | 0.150" (3.80mm) |
|
|
SCIHP1338-5R6MFIXED IND 5.6UH 9.5A 18 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCIHP1338 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 9.5 A | 16A | - | Shielded | 18mOhm Max | 5.6 µH | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | - | -55°C ~ 125°C | 200 kHz | 0.150" (3.80mm) |
|
|
SCIHP1338-6R8MFIXED IND 6.8UH 9A 22 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCIHP1338 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 9 A | 14A | - | Shielded | 22mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | - | -55°C ~ 125°C | 200 kHz | 0.150" (3.80mm) |
|
|
SCIHP1338-R47MFIXED IND 470NH 25A 2 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCIHP1338 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 25 A | 48A | - | Shielded | 2mOhm Max | 470 nH | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | - | -55°C ~ 125°C | 200 kHz | 0.150" (3.80mm) |
|
|
SCIHP1338-R56MFIXED IND 560NH 24A 2.3 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCIHP1338 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 24 A | 47A | - | Shielded | 2.3mOhm Max | 560 nH | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | - | -55°C ~ 125°C | 200 kHz | 0.150" (3.80mm) |
|
|
SCIHP1338-R82MFIXED IND 820NH 23A 3 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCIHP1338 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 23 A | 39A | - | Shielded | 3mOhm Max | 820 nH | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | - | -55°C ~ 125°C | 200 kHz | 0.150" (3.80mm) |
