固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AISC-Q1008-12NG-TFIXED IND 12NH 1A 0.09OHM SMD Abracon LLC |
0 | - |
|
数据表 |
AISC-Q1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±2% | 1 A | - | 1008 | Unshielded | 90mOhm Max | 12 nH | 50 @ 500MHz | 3.3GHz | Surface Mount | AEC-Q200 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | - | -40°C ~ 125°C | 50 MHz | 0.115" (2.92mm) |
|
|
AISC-Q1008-1R2G-TFIXED IND 1.2UH 310MA 2OHM SMD Abracon LLC |
0 | - |
|
数据表 |
AISC-Q1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±2% | 310 mA | - | 1008 | Unshielded | 2Ohm Max | 1.2 µH | 35 @ 50MHz | 250MHz | Surface Mount | AEC-Q200 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | - | -40°C ~ 125°C | 7.9 MHz | 0.115" (2.92mm) |
|
|
AISC-Q1008-R62G-TFIXED IND 620NH 300MA 1.4OHM SMD Abracon LLC |
0 | - |
|
数据表 |
AISC-Q1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±2% | 300 mA | - | 1008 | Unshielded | 1.4Ohm Max | 620 nH | 45 @ 100MHz | 375MHz | Surface Mount | AEC-Q200 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | - | -40°C ~ 125°C | 25 MHz | 0.115" (2.92mm) |
|

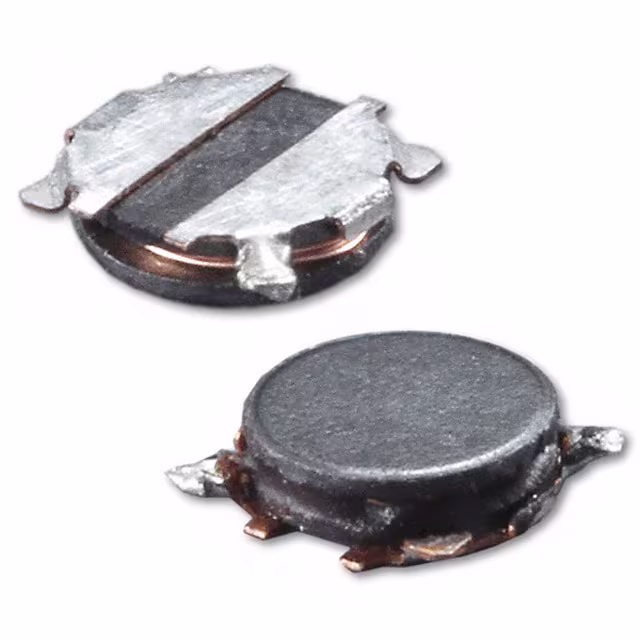

ASPI-0309-2R2M-T4FIXED IND 2.2UH 1A 170 MOHM SMD Abracon LLC |
0 | - |
|
数据表 |
ASPI-0309 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | ±20% | 1 A | 980mA | - | Unshielded | 170mOhm | 2.2 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -30°C ~ 100°C | 100 kHz | 0.035" (0.90mm) |
|
|
ASPI-0309-330M-T4FIXED IND 33UH 250MA 2.6 OHM SMD Abracon LLC |
0 | - |
|
数据表 |
ASPI-0309 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | ±20% | 250 mA | 250mA | - | Unshielded | 2.6Ohm | 33 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -30°C ~ 100°C | 100 kHz | 0.035" (0.90mm) |
|
|
ASPI-0309-470M-T4FIXED IND 47UH 220MA 3.3 OHM SMD Abracon LLC |
0 | - |
|
数据表 |
ASPI-0309 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | ±20% | 220 mA | 210mA | - | Unshielded | 3.3Ohm | 47 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -30°C ~ 100°C | 100 kHz | 0.035" (0.90mm) |
|
|
ASPI-0418FS-1R5N-T3FIXED IND 1UH 4.0A 32MOHM Abracon LLC |
0 | - |
|
数据表 |
ASPI-0418FS | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±30% | 2.95 A | 3.6A | 1616 | Shielded | 37mOhm Max | 1.5 µH | - | 70MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
|
ASPI-0418FS-1R0N-T3FIXED IND 1UH 4.0A 32MOHM Abracon LLC |
0 | - |
|
数据表 |
ASPI-0418FS | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±30% | 3.2 A | 4A | 1616 | Shielded | 32mOhm Max | 1 µH | - | 90MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
|
AISC-Q1008-123G-TFIXED IND 12UH 130MA 10.5OHM SMD Abracon LLC |
0 | - |
|
数据表 |
AISC-Q1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±2% | 130 mA | - | 1008 | Unshielded | 10.5Ohm Max | 12 µH | 15 @ 7.96MHz | 18MHz | Surface Mount | AEC-Q200 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.115" (2.92mm) |
|
ATCA-01-200M-HFIXED IND 20UH 3A 21 MOHM TH Abracon LLC |
0 | - |
|
数据表 |
ATCA | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | ±20% | 3 A | - | - | Unshielded | 21mOhm Max | 20 µH | - | - | Through Hole | - | 0.709" Dia (18.00mm) | - | -40°C ~ 105°C | 1 kHz | 0.453" (11.50mm) |
