固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPI-0602S-470M-TFIXED IND 47UH 800MA 238MOHM SMD Abracon LLC |
0 | - |
|
数据表 |
ASPI-0602S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 800 mA | - | - | Shielded | 238mOhm Max | 47 µH | - | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | - | -40°C ~ 85°C | 10 kHz | 0.118" (3.00mm) |
|
|
ASPI-0602S-560M-TFIXED IND 56UH 730MA 277MOHM SMD Abracon LLC |
0 | - |
|
数据表 |
ASPI-0602S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 730 mA | - | - | Shielded | 277mOhm Max | 56 µH | - | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | - | -40°C ~ 85°C | 10 kHz | 0.118" (3.00mm) |
|
|
ASPI-0602S-680M-TFIXED IND 68UH 650MA 304MOHM SMD Abracon LLC |
0 | - |
|
数据表 |
ASPI-0602S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 650 mA | - | - | Shielded | 304mOhm Max | 68 µH | - | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | - | -40°C ~ 85°C | 10 kHz | 0.118" (3.00mm) |
|
|
ASPI-0602S-820M-TFIXED IND 82UH 600MA 390MOHM SMD Abracon LLC |
0 | - |
|
数据表 |
ASPI-0602S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 600 mA | - | - | Shielded | 390mOhm Max | 82 µH | - | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | - | -40°C ~ 85°C | 10 kHz | 0.118" (3.00mm) |
|
|
ASPI-0602S-101M-TFIXED IND 100UH 540MA 535MOHM SM Abracon LLC |
0 | - |
|
数据表 |
ASPI-0602S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 540 mA | - | - | Shielded | 535mOhm Max | 100 µH | - | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | - | -40°C ~ 85°C | 10 kHz | 0.118" (3.00mm) |
|
ASPI-8040S-6R8N-TFIXED IND 6.8UH 3.6A 24 MOHM SMD Abracon LLC |
0 | - |
|
数据表 |
ASPI-8040S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 3.6 A | 4.55A | - | Shielded | 24mOhm | 6.8 µH | - | 20MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.165" (4.20mm) |
|

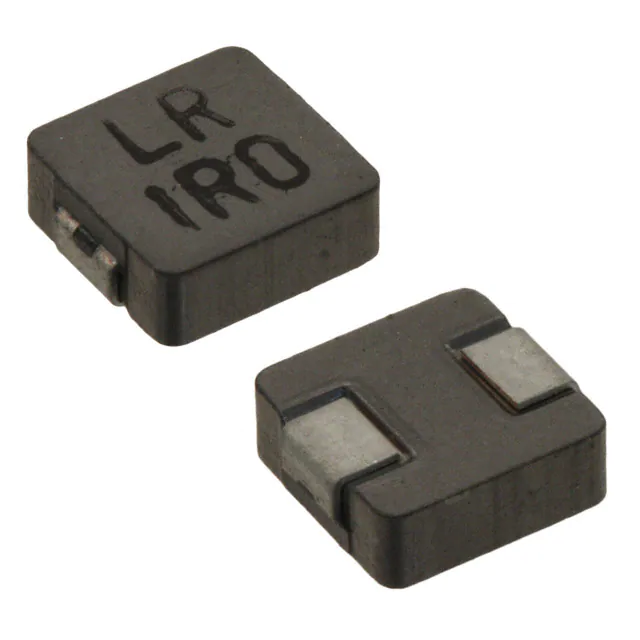

ASPI-0520LR-5R6M-T2FIXED IND 5.6UH 3.5A 75 MOHM SMD Abracon LLC |
0 | - |
|
数据表 |
ASPI-0520LR | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 3.5 A | 3.3A | - | Unshielded | 75mOhm Max | 5.6 µH | - | - | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|
ASPI-0530LR-2R2M-T2FIXED IND 2.2UH 7A 26 MOHM SMD Abracon LLC |
0 | - |
|
数据表 |
ASPI-0530LR | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 7 A | 5.5A | - | Shielded | 26mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
ASPI-0530LR-5R6M-T2FIXED IND 5.6UH 4.5A 65 MOHM SMD Abracon LLC |
0 | - |
|
数据表 |
ASPI-0530LR | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 4.5 A | 4A | - | Shielded | 65mOhm Max | 5.6 µH | - | - | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
AMPLA5030Q-4R7MTFIXED IND 4.7UH 4.6A 53 MOHM SMD Abracon LLC |
0 | - |
|
数据表 |
AMPLA5030Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | ±20% | 4.6 A | 6A | - | Shielded | 53mOhm Max | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.224" L x 0.205" W (5.70mm x 5.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
