固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

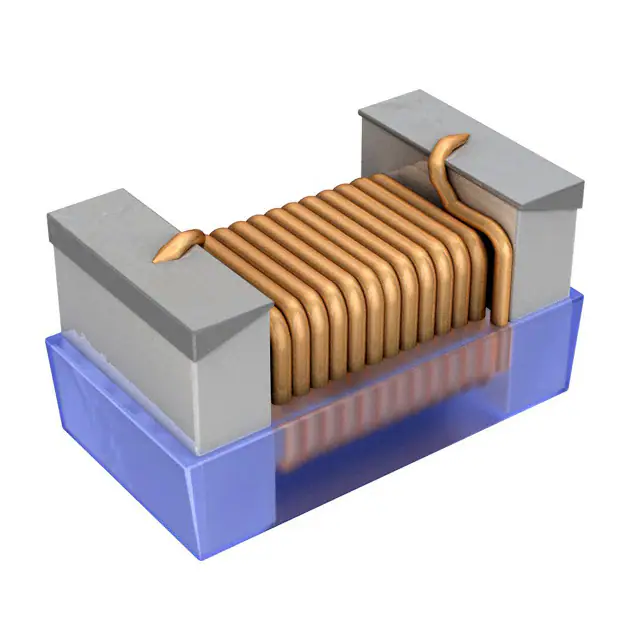

AISC-0402F-48NJ-TFIXED IND 48NH 1.1A 78 MOHM SMD Abracon LLC |
0 | - |
|
数据表 |
AISC-0402F | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 1.1 A | - | 0402 | Unshielded | 78mOhm Max | 48 nH | - | 1.4GHz | Surface Mount | - | 0.043" L x 0.024" W (1.10mm x 0.60mm) | - | -40°C ~ 85°C | 100 MHz | 0.028" (0.70mm) |
|
|
AISC-0402F-R13J-TFIXED IND 130NH 640MA 230MOHM SM Abracon LLC |
0 | - |
|
数据表 |
AISC-0402F | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 640 mA | - | 0402 | Unshielded | 230mOhm Max | 130 nH | - | 1GHz | Surface Mount | - | 0.043" L x 0.024" W (1.10mm x 0.60mm) | - | -40°C ~ 85°C | 100 MHz | 0.028" (0.70mm) |
|
AISC-0603HP-R15J-TFIXED IND 150NH 390MA 820MOHM SM Abracon LLC |
0 | - |
|
数据表 |
AISC-0603HP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 390 mA | - | - | Unshielded | 820mOhm Max | 150 nH | 30 @ 150MHz | 1.15GHz | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | - | -40°C ~ 125°C | 150 MHz | 0.040" (1.02mm) |
|
AISC-Q1008-R56J-TFIXED IND 560NH 580MA 1.33OHM SM Abracon LLC |
0 | - |
|
数据表 |
AISC-Q1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±5% | 580 mA | - | 1008 | Unshielded | 1.33Ohm Max | 560 nH | 45 @ 100MHz | 415MHz | Surface Mount | AEC-Q200 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | - | -40°C ~ 125°C | 25 MHz | 0.115" (2.92mm) |
|
|
AISC-Q1008-R18J-TFIXED IND 180NH 620MA 0.77OHM SM Abracon LLC |
0 | - |
|
数据表 |
AISC-Q1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±5% | 620 mA | - | 1008 | Unshielded | 770mOhm Max | 180 nH | 45 @ 100MHz | 750MHz | Surface Mount | AEC-Q200 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | - | -40°C ~ 125°C | 25 MHz | 0.115" (2.92mm) |
|
|
AISC-Q1008-4R7J-TFIXED IND 4.7UH 260MA 4OHM SMD Abracon LLC |
0 | - |
|
数据表 |
AISC-Q1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±5% | 260 mA | - | 1008 | Unshielded | 4Ohm Max | 4.7 µH | 18 @ 25MHz | 90MHz | Surface Mount | AEC-Q200 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | - | -40°C ~ 125°C | 7.9 MHz | 0.115" (2.92mm) |
|
|
AISC-Q1008-R47J-TFIXED IND 470NH 470MA 1.19OHM SM Abracon LLC |
0 | - |
|
数据表 |
AISC-Q1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±5% | 470 mA | - | 1008 | Unshielded | 1.19Ohm Max | 470 nH | 45 @ 100MHz | 450MHz | Surface Mount | AEC-Q200 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | - | -40°C ~ 125°C | 25 MHz | 0.115" (2.92mm) |
|
|
AISC-Q1008-R15J-TFIXED IND 150NH 800MA 0.7OHM SMD Abracon LLC |
0 | - |
|
数据表 |
AISC-Q1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±5% | 800 mA | - | 1008 | Unshielded | 700mOhm Max | 150 nH | 45 @ 100MHz | 850MHz | Surface Mount | AEC-Q200 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | - | -40°C ~ 125°C | 25 MHz | 0.115" (2.92mm) |
|
|
AISC-Q1008-22NJ-TFIXED IND 22NH 1A 0.12OHM SMD Abracon LLC |
0 | - |
|
数据表 |
AISC-Q1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±5% | 1 A | - | 1008 | Unshielded | 120mOhm Max | 22 nH | 55 @ 350MHz | 2.4GHz | Surface Mount | AEC-Q200 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | - | -40°C ~ 125°C | 50 MHz | 0.115" (2.92mm) |
|
|
AISC-Q1008-12NJ-TFIXED IND 12NH 1A 0.09OHM SMD Abracon LLC |
0 | - |
|
数据表 |
AISC-Q1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±5% | 1 A | - | 1008 | Unshielded | 90mOhm Max | 12 nH | 50 @ 500MHz | 3.3GHz | Surface Mount | AEC-Q200 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | - | -40°C ~ 125°C | 50 MHz | 0.115" (2.92mm) |
