固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AISC-0603F-R25J-TFIXED IND 250NH 690MA 170MOHM SM Abracon LLC |
0 | - |
|
数据表 |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 690 mA | - | 0603 (1608 Metric) | Unshielded | 170mOhm Max | 250 nH | - | 910MHz | Surface Mount | - | 0.063" L x 0.039" W (1.60mm x 1.00mm) | - | -40°C ~ 85°C | 7.9 MHz | 0.047" (1.20mm) |
|
|
AISC-0603F-R62J-TFIXED IND 620NH 390MA 480MOHM SM Abracon LLC |
0 | - |
|
数据表 |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 390 mA | - | 0603 (1608 Metric) | Unshielded | 480mOhm Max | 620 nH | - | 570MHz | Surface Mount | - | 0.063" L x 0.039" W (1.60mm x 1.00mm) | - | -40°C ~ 85°C | 7.9 MHz | 0.047" (1.20mm) |
|
|
AISC-0603F-R65J-TFIXED IND 650NH 350MA 610MOHM SM Abracon LLC |
0 | - |
|
数据表 |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 350 mA | - | 0603 (1608 Metric) | Unshielded | 610mOhm Max | 650 nH | - | 550MHz | Surface Mount | - | 0.063" L x 0.039" W (1.60mm x 1.00mm) | - | -40°C ~ 85°C | 7.9 MHz | 0.047" (1.20mm) |
|
|
AISC-0603F-R78J-TFIXED IND 780NH 300MA 830MOHM SM Abracon LLC |
0 | - |
|
数据表 |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 300 mA | - | 0603 (1608 Metric) | Unshielded | 830mOhm Max | 780 nH | - | 480MHz | Surface Mount | - | 0.063" L x 0.039" W (1.60mm x 1.00mm) | - | -40°C ~ 85°C | 7.9 MHz | 0.047" (1.20mm) |
|
|
AISC-0603F-R82J-TFIXED IND 820NH 290MA 880MOHM SM Abracon LLC |
0 | - |
|
数据表 |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 290 mA | - | 0603 (1608 Metric) | Unshielded | 880mOhm Max | 820 nH | - | 500MHz | Surface Mount | - | 0.063" L x 0.039" W (1.60mm x 1.00mm) | - | -40°C ~ 85°C | 7.9 MHz | 0.047" (1.20mm) |
|
|
AISC-0603F-2R7J-TFIXED IND 2.7UH 210MA 1.6OHM SMD Abracon LLC |
0 | - |
|
数据表 |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 210 mA | - | 0603 (1608 Metric) | Unshielded | 1.6Ohm Max | 2.7 µH | - | 70MHz | Surface Mount | - | 0.063" L x 0.039" W (1.60mm x 1.00mm) | - | -40°C ~ 85°C | 7.9 MHz | 0.047" (1.20mm) |
|
|
AISC-0603F-7R8J-TFIXED IND 7.8UH 120MA 4.4OHM SMD Abracon LLC |
0 | - |
|
数据表 |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 120 mA | - | 0603 (1608 Metric) | Unshielded | 4.4Ohm Max | 7.8 µH | - | 40MHz | Surface Mount | - | 0.063" L x 0.039" W (1.60mm x 1.00mm) | - | -40°C ~ 85°C | 7.9 MHz | 0.047" (1.20mm) |
|
|
AISC-0603F-R50J-TFIXED IND 500NH 410MA 450MOHM SM Abracon LLC |
0 | - |
|
数据表 |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 410 mA | - | 0603 (1608 Metric) | Unshielded | 450mOhm Max | 500 nH | - | 610MHz | Surface Mount | - | 0.063" L x 0.039" W (1.60mm x 1.00mm) | - | -40°C ~ 85°C | 7.9 MHz | 0.047" (1.20mm) |
|

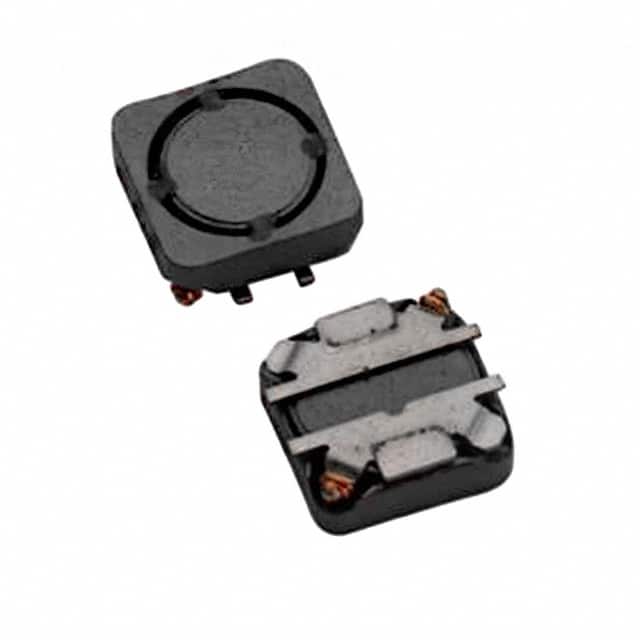

ASPI-0418S -6R8N-T3FIXED IND 6.8UH 1.13A 155MOHM SM Abracon LLC |
0 | - |
|
数据表 |
ASPI-0418S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 1.13 A | 1A | - | Shielded | 155mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | - | -25°C ~ 100°C | 100 kHz | 0.071" (1.80mm) |
|
|
ASPI-0418S-151M-T3FIXED IND 150UH 419 MOHM SMD Abracon LLC |
0 | - |
|
数据表 |
ASPI-0418S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | - | - | - | Shielded | 419mOhm | 150 µH | - | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | - | -25°C ~ 100°C | 100 kHz | 0.071" (1.80mm) |
