固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AISC-0805F-150G-TFIXED IND 15UH 80MA 6.5 OHM SMD Abracon LLC |
1,479 | - |
|
数据表 |
AISC-0805F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±2% | 80 mA | - | 0805 | Unshielded | 6.5Ohm Max | 15 µH | 10 @ 2.5MHz | 23MHz | Surface Mount | - | 0.090" L x 0.068" W (2.29mm x 1.73mm) | - | -40°C ~ 125°C | 2.5 MHz | 0.061" (1.55mm) |
|
AISC-0603F-5R6J-TFIXED IND 5.6UH 150MA 3 OHM SMD Abracon LLC |
5,990 | - |
|
数据表 |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 150 mA | - | 0603 (1608 Metric) | Unshielded | 3Ohm Max | 5.6 µH | - | 40MHz | Surface Mount | - | 0.063" L x 0.039" W (1.60mm x 1.00mm) | - | -40°C ~ 85°C | 7.9 MHz | 0.047" (1.20mm) |
|
ATFC-0402-15NG-TFIXED IND 15NH 130MA 1.75OHM SMD Abracon LLC |
32,513 | - |
|
数据表 |
ATFC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±2% | 130 mA | - | 0402 (1005 Metric) | Unshielded | 1.75Ohm Max | 15 nH | 13 @ 500MHz | 3.3GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -45°C ~ 85°C | 500 MHz | 0.015" (0.37mm) |
|
AISC-1206-R33J-TFIXED IND 330NH 590MA 700MOHM SM Abracon LLC |
1,930 | - |
|
数据表 |
AISC-1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 590 mA | - | - | Unshielded | 700mOhm Max | 330 nH | 45 @ 150MHz | 650MHz | Surface Mount | - | 0.140" L x 0.085" W (3.56mm x 2.16mm) | - | -40°C ~ 125°C | 50 MHz | 0.060" (1.52mm) |
|
AIAP-01-101K-TFIXED IND 100UH 550MA 670MOHM TH Abracon LLC |
11,773 | - |
|
数据表 |
AIAP-01 | Axial | Tape & Reel (TR) | Active | Wirewound | - | ±10% | 550 mA | - | - | Unshielded | 670mOhm Max | 100 µH | - | 3.9MHz | Through Hole | - | 0.130" Dia x 0.360" L (3.30mm x 9.14mm) | - | -40°C ~ 105°C | 1 kHz | - |
|
|
AIAP-01-390K-TFIXED IND 39UH 880MA 260 MOHM TH Abracon LLC |
9,971 | - |
|
数据表 |
AIAP-01 | Axial | Tape & Reel (TR) | Active | Wirewound | - | ±10% | 880 mA | - | - | Unshielded | 260mOhm Max | 39 µH | - | 7.1MHz | Through Hole | - | 0.130" Dia x 0.360" L (3.30mm x 9.14mm) | - | -40°C ~ 105°C | 1 kHz | - |
|
AIML-0603-3R3K-TFIXED IND 3.3UH 15MA 1.55OHM SMD Abracon LLC |
28,346 | - |
|
数据表 |
AIML-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | ±10% | 15 mA | - | 0603 (1608 Metric) | Shielded | 1.55Ohm Max | 3.3 µH | 35 @ 10MHz | 70MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 10 MHz | 0.037" (0.95mm) |
|
|
AIAP-01-392K-TFIXED IND 3.9MH 77MA 34 OHM TH Abracon LLC |
9,727 | - |
|
数据表 |
AIAP-01 | Axial | Tape & Reel (TR) | Active | Wirewound | - | ±10% | 77 mA | - | - | Unshielded | 34Ohm Max | 3.9 mH | - | 480kHz | Through Hole | - | 0.130" Dia x 0.360" L (3.30mm x 9.14mm) | - | -40°C ~ 105°C | 1 kHz | - |
|

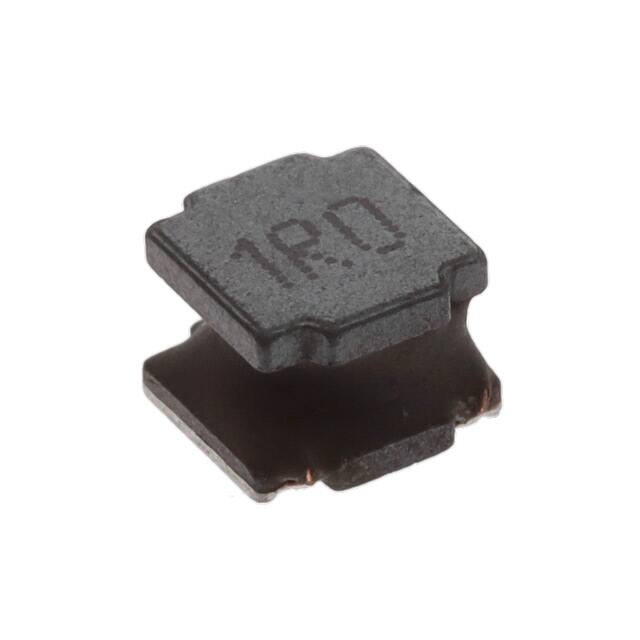

ASPI-6045T-1R0N-TIND 1UH 5.14A 14M Abracon LLC |
5,769 | - |
|
数据表 |
ASPI-6045T | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±30% | 5.14 A | 9.85A | - | Shielded | 14mOhm Max | 1 µH | - | 100MHz | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
ATFC-0402-2N5B-TFIXED IND 2.5NH 440MA 350MOHM SM Abracon LLC |
26,253 | - |
|
数据表 |
ATFC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.1nH | 440 mA | - | 0402 (1005 Metric) | Unshielded | 350mOhm Max | 2.5 nH | 13 @ 500MHz | 8GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -45°C ~ 85°C | 500 MHz | 0.015" (0.37mm) |
