固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L0603CR39JRMSTFIXED IND 390NH 150MA 2.3OHM SMD KEMET |
0 | - |
|
数据表 |
L-RMS | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 150 mA | - | 0603 (1608 Metric) | Unshielded | 2.3Ohm Max | 390 nH | 13 @ 100MHz | 410MHz | Surface Mount | - | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | -40°C ~ 85°C | 100 MHz | 0.028" (0.71mm) |
|
MPXV1D1040LR47FIXED IND 470NH 26.4A 2.4MOHM SM KEMET |
25 | - |
|
数据表 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 26.4 A | 42A | - | Shielded | 2.4mOhm Max | 470 nH | - | 65MHz | Surface Mount | AEC-Q200 | 0.425" L x 0.394" W (10.80mm x 10.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.157" (4.00mm) |
|
|
L0603CR47JRMSTFIXED IND 470NH 150MA 2.6OHM SMD KEMET |
0 | - |
|
数据表 |
L-RMS | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 150 mA | - | 0603 (1608 Metric) | Unshielded | 2.6Ohm Max | 470 nH | 13 @ 100MHz | 360MHz | Surface Mount | - | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | -40°C ~ 85°C | 100 MHz | 0.028" (0.71mm) |
|
MPLCG0630L2R2FIXED IND 2.2UH 8.2A 0.019OHM SM KEMET |
0 | - |
|
数据表 |
MPLCG | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 8.2 A | 7.8A | - | Shielded | 19mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.295" L x 0.264" W (7.50mm x 6.70mm) | Low DCR, Low Loss | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
MPLCG0630LR47FIXED IND 470NH 15.8A 0.005OHM KEMET |
0 | - |
|
数据表 |
MPLCG | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 15.8 A | 15.6A | - | Shielded | 5mOhm Max | 470 nH | - | - | Surface Mount | - | 0.295" L x 0.264" W (7.50mm x 6.70mm) | Low DCR, Low Loss | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
MPX1D0840L6R8FIXED IND 6.8UH 7.3A 33.4MOHM SM KEMET |
1 | - |
|
数据表 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 7.3 A | 9A | - | Shielded | 33.4mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.157" (4.00mm) |
|
SBC8-472-391FIXED IND 4.7MH 390MA 3.2 OHM TH KEMET |
0 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 390 mA | 530mA | - | Unshielded | 3.2Ohm Max | 4.7 mH | - | - | Through Hole | - | 0.591" Dia (15.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.886" (22.50mm) |
|
|
SBC2-331-341FIXED IND 330UH 340MA 1.4 OHM TH KEMET |
10 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 340 mA | 370mA | - | Unshielded | 1.4Ohm Max | 330 µH | - | - | Through Hole | - | 0.276" Dia (7.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.413" (10.50mm) |
|

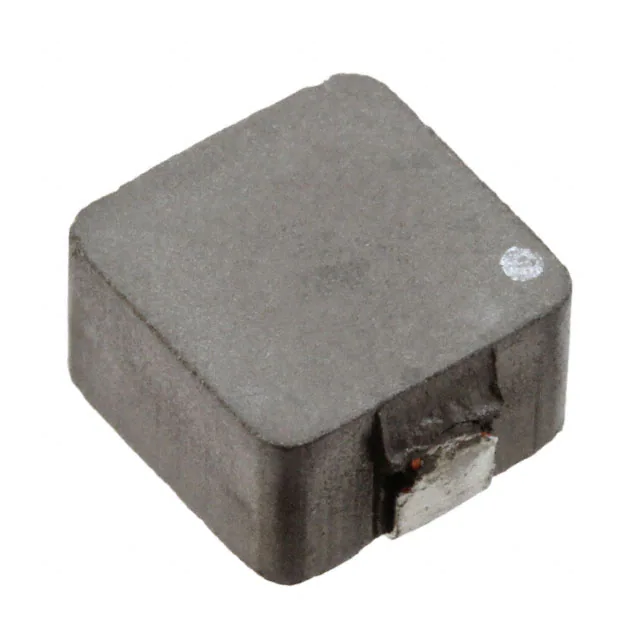

MPC0740LR42CFIXED IND 420NH 22A 1.55MOHM SMD KEMET |
0 | - |
|
数据表 |
MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 22 A | 20A | - | Shielded | 1.55mOhm Max | 420 nH | - | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | - | -20°C ~ 120°C | 100 kHz | 0.157" (4.00mm) |
|

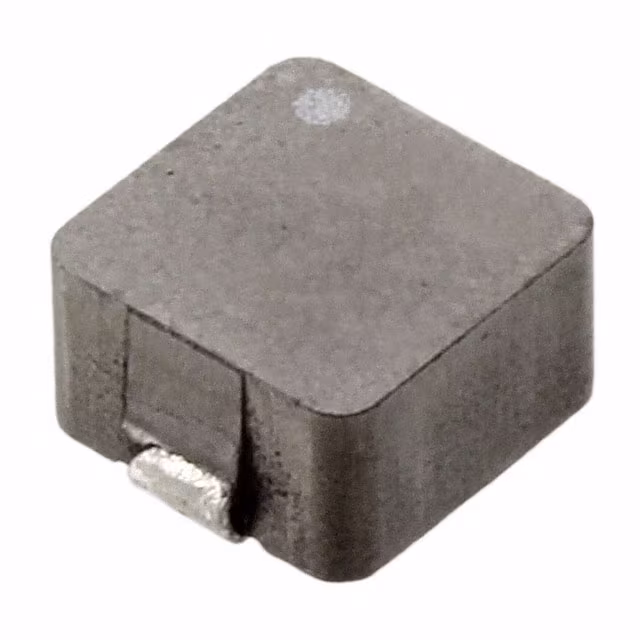

MPCH0740LR36EFIXED IND 360NH 23A 1.42MOHM SMD KEMET |
0 | - |
|
数据表 |
MPCH | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 23 A | 22A | - | Shielded | 1.42mOhm | 360 nH | - | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
