固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

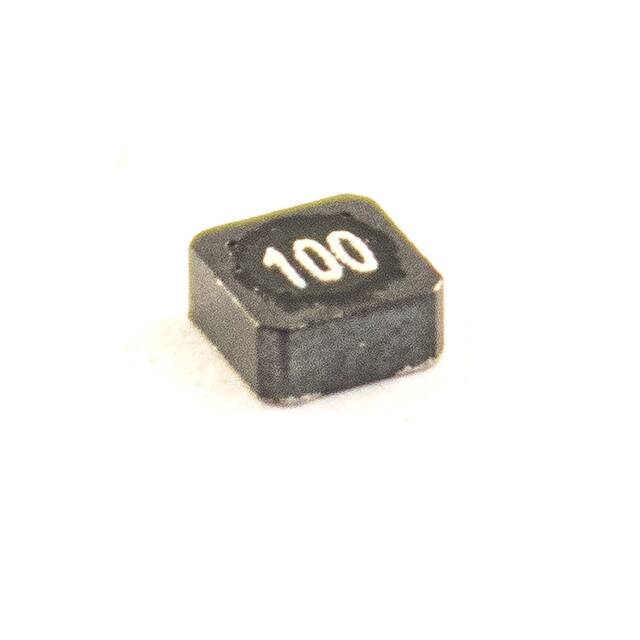

PCS3X15-100M10UH, SHIELDED POWER INDUCTOR Allied Components International |
0 | - |
|
数据表 |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 750 mA | 650mA | - | Shielded | 440mOhm Max | 10 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
VTC-4486470UH,VERTIVAL TOROIDAL CHOKE Allied Components International |
0 | - |
|
数据表 |
- | Vertical, 2 PC Pin | Tray | Active | Toroidal | - | ±20% | 1 A | - | Radial | Unshielded | 225mOhm Max | 470 µH | - | - | Through Hole | - | 0.748" Dia x 0.374" L (19.00mm x 9.50mm) | - | -40°C ~ 105°C | 10 kHz | - |
.jpg)
|
PCHC420Z2-1R0M-RC1.00UH, SMD HIGH CURRENT SHIELDE Allied Components International |
0 | - |
|
数据表 |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 4.4 A | 7.5A | - | Shielded | 27mOhm Max | 1 µH | - | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | - | -55°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
PCHC1265HP-5R6M5.6H 20% POWER CHOKE HIGH CURREN Allied Components International |
0 | - |
|
数据表 |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 12.5 A | 23A | - | Shielded | 10mOhm Max | 5.6 µH | - | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
|
PCHC1265HP-101M100H 20% POWER CHOKE HIGH CURREN Allied Components International |
0 | - |
|
数据表 |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 4.2 A | 5.5A | - | Shielded | 165mOhm Max | 100 µH | - | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
FWECY1390-220M22H 20% FLAT WIRE SMD POWER IN Allied Components International |
0 | - |
|
数据表 |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 7.7 A | 6.8A | - | Shielded | 23.1mOhm Max | 22 µH | - | 20.3MHz | Surface Mount | - | 0.512" L x 0.492" W (13.00mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.354" (9.00mm) |
|
|
FWECY1390-330M33H 20% FLAT WIRE SMD POWER IN Allied Components International |
0 | - |
|
数据表 |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 7.7 A | 4.4A | - | Shielded | 23.1mOhm Max | 33 µH | - | 15.7MHz | Surface Mount | - | 0.512" L x 0.492" W (13.00mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.354" (9.00mm) |
|
|
FWECY1390-470M47H 20% FLAT WIRE SMD POWER IN Allied Components International |
0 | - |
|
数据表 |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 7.7 A | 3A | - | Shielded | 23.1mOhm Max | 47 µH | - | 13.2MHz | Surface Mount | - | 0.512" L x 0.492" W (13.00mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.354" (9.00mm) |
|
PCS104-100M-RC10H 20% POWER CHIP INDUCTOR Allied Components International |
0 | - |
|
数据表 |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 4.4 A | - | - | Shielded | 35mOhm Max | 10 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
AHC50-101M-RC100uH, 20%, Axial Hash Choke Allied Components International |
0 | - |
|
数据表 |
- | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 2 A | - | Axial | Unshielded | 216mOhm Max | 100 µH | - | - | Through Hole | - | 0.394" Dia x 1.380" L (10.00mm x 35.05mm) | - | -55°C ~ 105°C | 1 kHz | - |
