固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

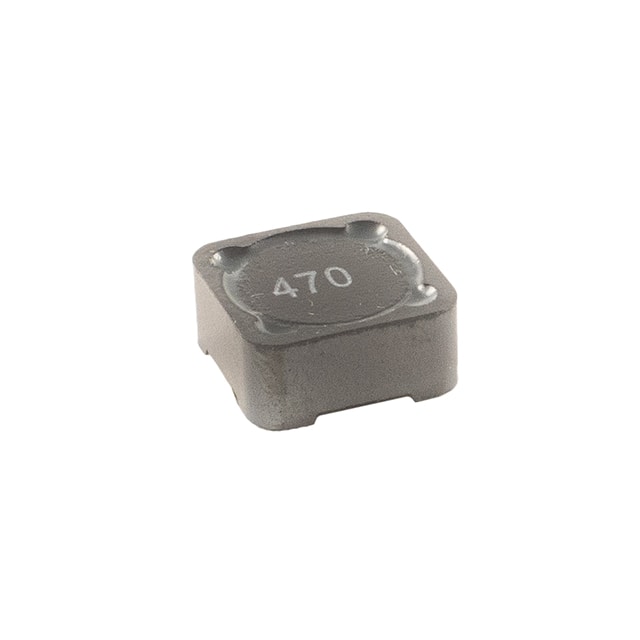

PCSDR125-470M-RC47UH +/-20% SMD INDUCTOR Allied Components International |
0 | - |
|
数据表 |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 2.714 A | 3.23A | - | Shielded | 88.8mOhm Max | 47 µH | - | - | Surface Mount | - | 0.484" L x 0.484" W (12.30mm x 12.30mm) | - | -55°C ~ 125°C | 100 kHz | 0.236" (6.00mm) |
|
RDC20-102K-RC1000UH RADIAL DRUM CORE INDUCTOR Allied Components International |
0 | - |
|
数据表 |
RDC20 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | ±10% | 1 A | 3.1A | Radial Lead | Unshielded | 818mOhm Max | 1 mH | - | - | Through Hole | - | 0.825" Dia (20.96mm) | - | -40°C ~ 85°C | 1 kHz | 0.840" (21.34mm) |
|
PCHC123H-4R7M-RC4.7H 20% POWER CHOKE HIGH CURREN Allied Components International |
0 | - |
|
数据表 |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 10 A | 16A | - | Shielded | 15mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.146" (3.70mm) |
|
VTC210-101L-RC100H 15% VRT MOUNT TOROIDAL CHOK Allied Components International |
0 | - |
|
数据表 |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | ±15% | 2.4 A | - | - | Unshielded | 130mOhm Max | 100 µH | - | - | Through Hole | - | 0.860" Dia x 0.450" L (21.84mm x 11.43mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
VTC210-151L-RC150H 15% VRT MOUNT TOROIDAL CHOK Allied Components International |
0 | - |
|
数据表 |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | ±15% | 3.4 A | - | - | Unshielded | 62mOhm Max | 150 µH | - | - | Through Hole | - | 0.860" Dia x 0.450" L (21.84mm x 11.43mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
CC03-2N2K-RC2.2NH 10% CERAMIC CORE CHIP INDU Allied Components International |
0 | - |
|
数据表 |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±10% | - | - | 0603 | Unshielded | - | 2.2 nH | - | - | Surface Mount | - | 0.071" L x 0.047" W (1.80mm x 1.20mm) | - | -40°C ~ 125°C | - | 0.047" (1.20mm) |
|
|
VTC210-561L-RC560H 15% VRT MOUNT TOROIDAL CHOK Allied Components International |
0 | - |
|
数据表 |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | ±15% | 1.5 A | - | - | Unshielded | 300mOhm Max | 560 µH | - | - | Through Hole | - | 0.860" Dia x 0.450" L (21.84mm x 11.43mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
PCHC1265HP-220M22H 20% POWER CHOKE HIGH CURRENT Allied Components International |
0 | - |
|
数据表 |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 9 A | 12A | - | Shielded | 37mOhm Max | 22 µH | - | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
CC10-120NG-RC120NH 2% CERAMIC CORE CHIP INDUC Allied Components International |
0 | - |
|
数据表 |
- | Nonstandard | Tape & Box (TB) | Active | Drum Core, Wirewound | Ceramic | ±2% | 650 mA | - | - | Unshielded | 630mOhm Max | 120 nH | 60 @ 350MHz | 950MHz | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | - | -40°C ~ 125°C | 25 MHz | 0.087" (2.20mm) |
|
VTCB2213-361360UH, TOROIDAL CHOKE Allied Components International |
0 | - |
|
数据表 |
- | Radial, Vertical (Open) | Box | Active | Toroidal | - | - | 2.5 A | - | - | Unshielded | 130mOhm Max | 360 µH | - | - | Through Hole | - | 0.866" L x 0.512" W (22.00mm x 13.00mm) | - | -40°C ~ 125°C | 40 kHz | 0.906" (23.00mm) |
