固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
LQP02TN5N6J02DFIXED IND 5.6NH 140MA 1.8OHM SMD |
0 | - |
|
数据表 |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±5% | 140 mA | - | 01005 (0402 Metric) | Unshielded | 1.8Ohm Max | 5.6 nH | 8 @ 500MHz | 6GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.23mm) |
|
|
LQP02TN10NJ02DFIXED IND 10NH 140MA 2.5 OHM SMD |
0 | - |
|
数据表 |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±5% | 140 mA | - | 01005 (0402 Metric) | Unshielded | 2.5Ohm Max | 10 nH | 8 @ 500MHz | 4GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.23mm) |
|
|
LQP02TN12NJ02DFIXED IND 12NH 140MA 2.8 OHM SMD |
0 | - |
|
数据表 |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±5% | 140 mA | - | 01005 (0402 Metric) | Unshielded | 2.8Ohm Max | 12 nH | 7 @ 500MHz | 3.5GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.23mm) |
|
|
LQP02TN18NJ02DFIXED IND 18NH 140MA 3.5 OHM SMD |
0 | - |
|
数据表 |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±5% | 140 mA | - | 01005 (0402 Metric) | Unshielded | 3.5Ohm Max | 18 nH | 7 @ 500MHz | 2.5GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.23mm) |
|
WRFI0603-S-23NJTWirewound RF Inductor,0603,23nH, |
6,000 | - |
|
数据表 |
WRFI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±5% | 700 mA | - | 0603 (1608 Metric) | - | 190mOhm | 23 nH | 38 @ 250MHz | 2.85GHz | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | - | -40°C ~ 125°C | 250 MHz | 0.040" (1.02mm) |
|
|
LQP02TN6N2J02DFIXED IND 6.2NH 140MA 1.8OHM SMD |
0 | - |
|
数据表 |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±5% | 140 mA | - | 01005 (0402 Metric) | Unshielded | 1.8Ohm Max | 6.2 nH | 8 @ 500MHz | 5.5GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.23mm) |
|
|
WRFI0603-S-R30JTWirewound RF Inductor,0603,300nH |
6,000 | - |
|
数据表 |
WRFI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±5% | 150 mA | - | 0603 (1608 Metric) | - | 2.5Ohm | 300 nH | 25 @ 100MHz | 750MHz | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | - | -40°C ~ 125°C | 100 MHz | 0.040" (1.02mm) |
|
|
LQP02TN6N8J02DFIXED IND 6.8NH 140MA 2 OHM SMD |
0 | - |
|
数据表 |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±5% | 140 mA | - | 01005 (0402 Metric) | Unshielded | 2Ohm Max | 6.8 nH | 8 @ 500MHz | 5.5GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.23mm) |
|
|
WRFI0603-S-R15JTWirewound RF Inductor,0603,150nH |
6,000 | - |
|
数据表 |
WRFI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±5% | 280 mA | - | 0603 (1608 Metric) | - | 950mOhm | 150 nH | 28 @ 100MHz | 1.3GHz | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | - | -40°C ~ 125°C | 100 MHz | 0.040" (1.02mm) |
|
|
LQP02TN7N5J02DFIXED IND 7.5NH 140MA 2 OHM SMD |
0 | - |
|
数据表 |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±5% | 140 mA | - | 01005 (0402 Metric) | Unshielded | 2Ohm Max | 7.5 nH | 8 @ 500MHz | 4.5GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.23mm) |
|
|
LQP02TN8N2J02DFIXED IND 8.2NH 140MA 2.1OHM SMD |
0 | - |
|
数据表 |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±5% | 140 mA | - | 01005 (0402 Metric) | Unshielded | 2.1Ohm Max | 8.2 nH | 8 @ 500MHz | 4.5GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.23mm) |
|
SRR1280-820MFIXED IND 82UH 2.3A 130 MOHM SMD |
348 | - |
|
数据表 |
SRR1280 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.3 A | 2.2A | - | Shielded | 130mOhm Max | 82 µH | 20 @ 796kHz | 5MHz | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
|
LQP02TN9N1J02DFIXED IND 9.1NH 140MA 2.1OHM SMD |
0 | - |
|
数据表 |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±5% | 140 mA | - | 01005 (0402 Metric) | Unshielded | 2.1Ohm Max | 9.1 nH | 8 @ 500MHz | 4GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.23mm) |
|
PA4342.472NLTFIXED IND 4.7UH 10A 15.5MOHM SMD |
116,073 | - |
|
数据表 |
PA4342.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 10 A | 17A | - | Shielded | 15.5mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
LQP02TN11NJ02DFIXED IND 11NH 140MA 2.8 OHM SMD |
0 | - |
|
数据表 |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±5% | 140 mA | - | 01005 (0402 Metric) | Unshielded | 2.8Ohm Max | 11 nH | 7 @ 500MHz | 3.5GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.23mm) |
|
P0751.153NLTFIXED IND 15UH 3A 55 MOHM SMD |
43,730 | - |
|
数据表 |
P0751NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 3 A | 3A | - | Unshielded | 55mOhm Max | 15 µH | - | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -40°C ~ 130°C | 100 kHz | 0.215" (5.46mm) |
|
|
LQP02TN13NJ02DFIXED IND 13NH 140MA 3.2 OHM SMD |
0 | - |
|
数据表 |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±5% | 140 mA | - | 01005 (0402 Metric) | Unshielded | 3.2Ohm Max | 13 nH | 7 @ 500MHz | 3GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.23mm) |
|

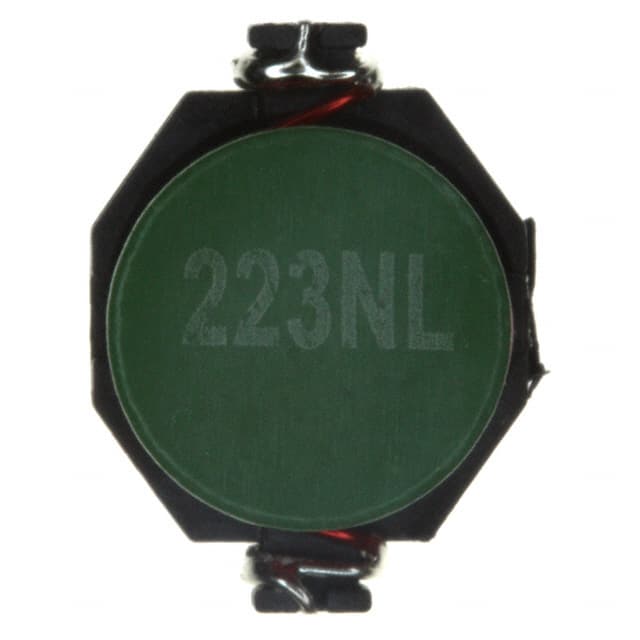

P0751.223NLTFIXED IND 22UH 2.6A 114 MOHM SMD |
9,176 | - |
|
数据表 |
P0751NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 2.6 A | 2.6A | - | Unshielded | 114mOhm Max | 22 µH | - | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -40°C ~ 130°C | 100 kHz | 0.215" (5.46mm) |
|
IHLP1616BZERR47M5AFIXED IND 0.47UH 9.3 A 13.1 MOHM |
7,914 | - |
|
数据表 |
IHLP-1616BZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 9.3 A | 6.9A | - | Shielded | 13.1mOhm Max | 470 nH | - | 103MHz | Surface Mount | AEC-Q200 | 0.175" L x 0.160" W (4.45mm x 4.06mm) | - | -55°C ~ 155°C | 100 kHz | 0.079" (2.00mm) |
|
|
IHLP1616BZER2R2M5AFIXED IND 2.2UH 3.8 A 65 MOHM HI |
7,203 | - |
|
数据表 |
IHLP-1616BZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 3.8 A | 4A | - | Shielded | 65mOhm Max | 2.2 µH | - | 37MHz | Surface Mount | AEC-Q200 | 0.175" L x 0.160" W (4.45mm x 4.06mm) | - | -55°C ~ 155°C | 100 kHz | 0.079" (2.00mm) |
