固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPEX2722-150MCTHT HIGH CURRENT POWER INDUCTOR |
177 | - |
|
数据表 |
CPEX2722 | Nonstandard | Tray | Active | Wirewound | Metal Composite | ±20% | 25 A | 63A | Vertical, 4 PC Pin | Shielded | 4.1mOhm Max | 15 µH | - | - | Through Hole | AEC-Q200 | 1.075" L x 0.846" W (27.30mm x 21.50mm) | Flat Wire, High Current, Soft Saturation | -55°C ~ 150°C | 100 kHz | 0.898" (22.80mm) |
|
CPEX2722-120MCTHT HIGH CURRENT POWER INDUCTOR |
160 | - |
|
数据表 |
CPEX2722 | Nonstandard | Tray | Active | Wirewound | Metal Composite | ±20% | 26.5 A | 80A | Vertical, 4 PC Pin | Shielded | 4.1mOhm Max | 12 µH | - | - | Through Hole | AEC-Q200 | 1.075" L x 0.846" W (27.30mm x 21.50mm) | Flat Wire, High Current, Soft Saturation | -55°C ~ 150°C | 100 kHz | 0.898" (22.80mm) |
|
|
LRC0603CK8N2GV001TFIXED IND 8.2NH 300MA 400MOHM SM |
0 | - |
|
数据表 |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±10% | 300 mA | - | 0603 (1608 Metric) | Unshielded | 400mOhm Max | 8.2 nH | 8 @ 100MHz | 3.8GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 100°C | 100 MHz | 0.037" (0.95mm) |
|
|
CPEX2722-100MCTHT HIGH CURRENT POWER INDUCTOR |
114 | - |
|
数据表 |
CPEX2722 | Nonstandard | Tray | Active | Wirewound | Metal Composite | ±20% | 25 A | 95A | Vertical, 4 PC Pin | Shielded | 4.1mOhm Max | 10 µH | - | - | Through Hole | AEC-Q200 | 1.075" L x 0.846" W (27.30mm x 21.50mm) | Flat Wire, High Current, Soft Saturation | -55°C ~ 150°C | 100 kHz | 0.898" (22.80mm) |
|
|
LQP03TQ47NJ02DEMC |
0 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Bulk | Active | Thin Film | - | ±5% | 130 mA | - | 0201 (0603 Metric) | Unshielded | 4Ohm Max | 47 nH | 11 @ 300MHz | 1.3GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 300 MHz | 0.013" (0.32mm) |
|
BSCH00100505R27JCSINDUCTOR RF |
0 | - |
|
数据表 |
BSCH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 100 mA | - | 0402 | Unshielded | 4.8Ohm Max | 270 nH | 8 @ 100MHz | 500MHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
|
74404041100FIXED IND 10UH 1.32A 168MOHM SMD |
9,830 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.32 A | 1A | - | Shielded | 168mOhm | 10 µH | - | 38MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
1.5mm.jpg)
|
74438335010FIXED IND 1UH 2.7A 47 MOHM SMD |
9,747 | - |
|
数据表 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 2.7 A | 4.5A | 3015 | Shielded | 47mOhm Max | 1 µH | - | 72MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
|
CPRX1912L-220MCTHT HIGH CURRENT POWER INDUCTOR |
315 | - |
|
数据表 |
CPRX1912L | Nonstandard | Tray | Active | Wirewound | Metal Composite | ±20% | 17 A | 16.5A | - | Shielded | 8.27mOhm Max | 22 µH | - | - | Through Hole | - | 0.748" L x 0.492" W (19.00mm x 12.50mm) | Flat Wire, High Current | -55°C ~ 150°C | 100 kHz | 0.688" (17.50mm) |
|
|
CPRX1912L-7R2MCTHT HIGH CURRENT POWER INDUCTOR |
304 | - |
|
数据表 |
CPRX1912L | Nonstandard | Tray | Active | Wirewound | Metal Composite | ±20% | 31 A | 30A | - | Shielded | 2.47mOhm Max | 7.2 µH | - | - | Through Hole | - | 0.748" L x 0.492" W (19.00mm x 12.50mm) | Flat Wire, High Current | -55°C ~ 150°C | 100 kHz | 0.688" (17.50mm) |
1mm.jpg)
|
74438323068FIXED IND 6.8UH 850MA 648MOHM SM |
9,266 | - |
|
数据表 |
WE-MAPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 850 mA | 1.55A | 2510 | Shielded | 648mOhm Max | 6.8 µH | - | 30MHz | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|
|
74438335022FIXED IND 2.2UH 1.8A 108MOHM SMD |
6,776 | - |
|
数据表 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 1.8 A | 3.5A | 3015 | Shielded | 108mOhm Max | 2.2 µH | - | 45MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
74404054150FIXED IND 15UH 2A 86 MOHM SMD |
6,440 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2 A | 2.2A | 5040 | Shielded | 86mOhm | 15 µH | - | 22MHz | Surface Mount | AEC-Q200 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
74404063150FIXED IND 15UH 1.45A 125MOHM SMD |
6,252 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.45 A | 1.9A | 6028 | Shielded | 125mOhm | 15 µH | - | 24MHz | Surface Mount | AEC-Q200 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.110" (2.80mm) |
1.2mm.jpg)
|
74438334022FIXED IND 2.2UH 1.8A 115MOHM SMD |
6,224 | - |
|
数据表 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 1.8 A | 5A | 3012 | Shielded | 115mOhm Max | 2.2 µH | - | 50MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
74404042331FIXED IND 330UH 200MA 5.3OHM SMD |
5,735 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 200 mA | 300mA | - | Shielded | 5.3Ohm | 330 µH | - | 4.2MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
|
74404054068FIXED IND 6.8UH 2.5A 43 MOHM SMD |
5,109 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.5 A | 3.2A | 5040 | Shielded | 43mOhm | 6.8 µH | - | 35MHz | Surface Mount | AEC-Q200 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
74404063470FIXED IND 47UH 1.06A 315MOHM SMD |
4,798 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.06 A | 1.3A | 6028 | Shielded | 315mOhm | 47 µH | - | 14MHz | Surface Mount | AEC-Q200 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.110" (2.80mm) |
|
|
744383340068FIXED IND 680NH 3.5A 43.2MOHM SM |
4,372 | - |
|
数据表 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±30% | 3.5 A | 7.7A | 3012 | Shielded | 43.2mOhm Max | 680 nH | - | 100MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|

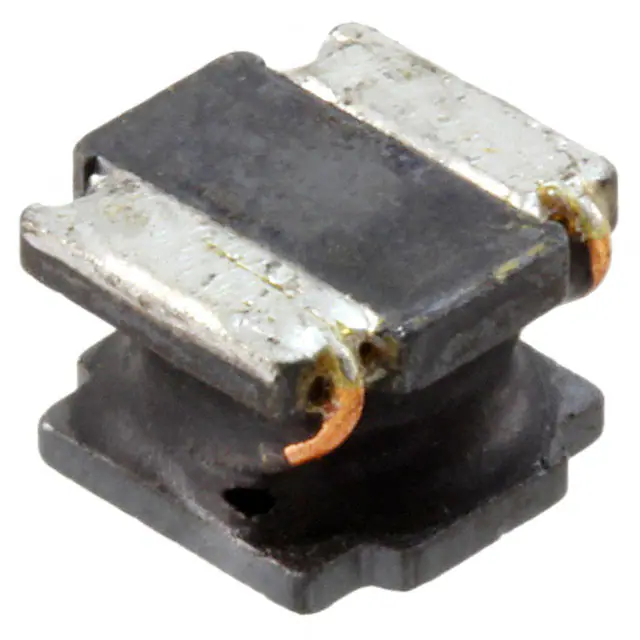

74404064101FIXED IND 100UH 800MA 433MOHM SM |
4,260 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1 A | 1.2A | 6045 | Shielded | 433mOhm | 100 µH | - | 6.3MHz | Surface Mount | AEC-Q200 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
