固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74404042680FIXED IND 68UH 540MA 840MOHM SMD |
11,026 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 540 mA | 630mA | - | Shielded | 840mOhm | 68 µH | - | 9MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
XGL1313-472MEDFIXED IND 4.7UH 36.7A 2.8MOHM SM |
418 | - |
|
数据表 |
XGL1313 | 2-SMD | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 36.7 A | 35A | - | Shielded | 2.8mOhm Max | 4.7 µH | - | 16MHz | Surface Mount | AEC-Q200 | 0.591" L x 0.528" W (15.00mm x 13.40mm) | - | -40°C ~ 125°C | 1 MHz | 0.512" (13.00mm) |
|
|
XGL1313-473MEDFIXED IND 47UH 9.1A 30MOHM SM |
347 | - |
|
数据表 |
XGL1313 | 2-SMD | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 9.1 A | 9.7A | - | Shielded | 30mOhm Max | 47 µH | - | 5MHz | Surface Mount | AEC-Q200 | 0.591" L x 0.528" W (15.00mm x 13.40mm) | - | -40°C ~ 125°C | 1 MHz | 0.512" (13.00mm) |
|
MHW1807SG4R0KFIXED IND 4UH 18A 3 MOHM SMD |
250 | - |
|
数据表 |
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | ±10% | 18 A | 18A | - | - | 3mOhm Max | 4 µH | - | - | Surface Mount | - | 0.800" L x 0.748" W (20.30mm x 19.00mm) | - | -40°C ~ 125°C | - | 0.335" (8.50mm) |
|
MHW2009SG7R0KAFIXED IND 7UH 7A 7 MOHM SMD |
500 | - |
|
数据表 |
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | ±10% | 7 A | 18A | - | - | 7mOhm Max | 7 µH | - | - | Surface Mount | - | 0.858" L x 0.835" W (21.80mm x 21.20mm) | - | -40°C ~ 125°C | - | 0.323" (8.20mm) |
|
MHW1807SG2R0KAFIXED IND 2UH 25A 3 MOHM SMD |
250 | - |
|
数据表 |
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | ±10% | 25 A | 32A | - | - | 3mOhm Max | 2 µH | - | - | Surface Mount | - | 0.800" L x 0.748" W (20.30mm x 19.00mm) | - | -40°C ~ 125°C | - | 0.335" (8.50mm) |
|
ER1025-06KSFIXED IND 270NH 960MA 160MOHM TH |
1,250 | - |
|
数据表 |
Military, MIL-PRF-39010/08, ER1025 | Axial | Tape & Reel (TR) | Active | - | Phenolic | ±10% | 960 mA | - | - | Unshielded | 160mOhm Max | 270 nH | 33 @ 25MHz | 430MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 125°C | 25 MHz | - |
|
CTHR5F-100K10UH FILTER INDUCTOR |
759 | - |
|
数据表 |
CTHRF | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | ±10% | 12 A | 19A | Radial | Unshielded | 15mOhm Max | 10 µH | - | - | Through Hole | - | 0.625" Dia (15.88mm) | - | -55°C ~ 125°C | 1 kHz | 1.125" (28.58mm) |
|

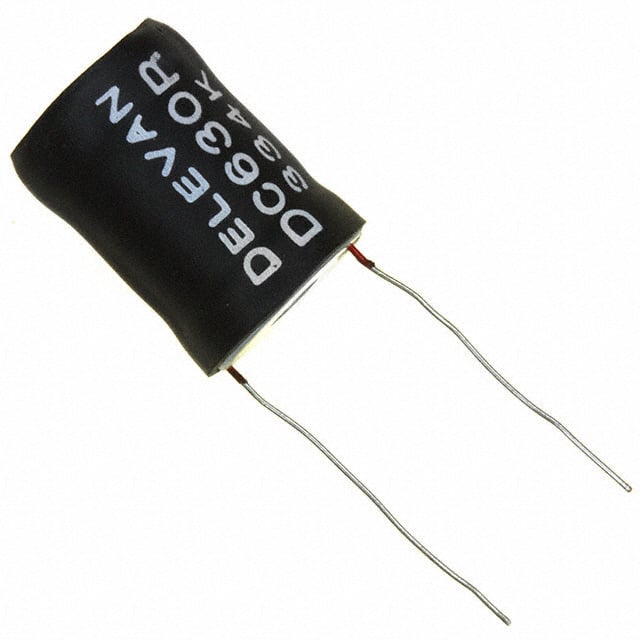

DC630R-334KFIXED IND 330UH 1.72A 315MOHM TH |
362 | - |
|
数据表 |
DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.72 A | 3.8A | - | Unshielded | 315mOhm Max | 330 µH | - | - | Through Hole | - | 0.630" Dia (16.00mm) | - | -55°C ~ 125°C | 10 kHz | 0.830" (21.08mm) |
|
LSQBA201212T150KFIXED IND 15UH 100MA 1.3 OHM SMD |
2,780 | - |
|
数据表 |
LSQB | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±10% | 100 mA | - | 0805 | Unshielded | 1.3Ohm | 15 µH | - | 28MHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -40°C ~ 105°C | 2.52 MHz | 0.057" (1.45mm) |
|
LSQBA201212T680KFIXED IND 68UH 50MA 6 OHM SMD |
2,741 | - |
|
数据表 |
LSQB | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±10% | 50 mA | - | 0805 | Unshielded | 6Ohm | 68 µH | - | 10MHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -40°C ~ 105°C | 2.52 MHz | 0.057" (1.45mm) |
|
CPD3119-100MTHT CLASS D IND FOR DIGITAL AMP |
154 | - |
|
数据表 |
CPD3119 | Nonstandard | Tray | Active | Wirewound | Ferrite | ±20% | 17 A | 61A | Vertical, 4 PC Pin | Shielded | 5.7mOhm Max | 10 µH | - | - | Through Hole | - | 1.220" L x 0.748" W (31.00mm x 19.00mm) | Low Loss, Soft Saturation | -40°C ~ 125°C | 100 kHz | 1.299" (33.00mm) |
|
|
CPD3119-220MCLASS D INDUCTOR FOR DIGITAL AMP |
152 | - |
|
数据表 |
CPD3119 | Nonstandard | Tray | Active | Wirewound | Ferrite | ±20% | 15.5 A | 33A | Radial - 4 Leads | Shielded | 6.4mOhm Max | 22 µH | - | - | Through Hole | AEC-Q200 | 1.220" L x 0.748" W (31.00mm x 19.00mm) | Low Loss, Soft Saturation | -40°C ~ 125°C | 100 kHz | 1.299" (33.00mm) |
|
CPG2717-220MTHT HIGH CURRENT POWER INDUCTOR |
184 | - |
|
数据表 |
CPG2717 | Nonstandard | Tray | Active | Wirewound | Ferrite | ±20% | 33.7 A | 12A | Vertical, 4 PC Pin | Shielded | 2mOhm Max | 22 µH | - | - | Through Hole | AEC-Q200 | - | Flat Wire, High Current | -40°C ~ 125°C | 100 kHz | - |
|
|
4501R-128MFIXED IND 100UH 650MA 400MOHM SM |
562 | - |
|
数据表 |
4501R | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Ferrite | ±20% | 650 mA | 650mA | - | Shielded | 400mOhm Max | 100 µH | - | - | Surface Mount | - | 0.360" L x 0.360" W (9.14mm x 9.14mm) | - | -55°C ~ 125°C | 10 kHz | 0.210" (5.33mm) |
|
SWS-3.00-110FIXED IND 110UH 3A 90 MOHM SMD |
225 | - |
|
数据表 |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | ±20% | 3 A | - | - | Unshielded | 90mOhm | 110 µH | - | - | Surface Mount | - | 0.925" L x 0.925" W (23.50mm x 23.50mm) | - | -40°C ~ 125°C | 10 kHz | 0.506" (12.85mm) |
|
|
IHB2EB3R3MFIXED IND 3.3UH 13.5A 5 MOHM TH |
105 | - |
|
数据表 |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | ±20% | 13.5 A | - | - | Unshielded | 5mOhm Max | 3.3 µH | - | - | Through Hole | - | 0.825" Dia (20.96mm) | - | -55°C ~ 130°C | 1 kHz | 0.840" (21.34mm) |
|
CPEX2722-220MCTHT HIGH CURRENT POWER INDUCTOR |
525 | - |
|
数据表 |
CPEX2722 | Nonstandard | Tray | Active | Wirewound | Metal Composite | ±20% | 25 A | 33A | Vertical, 4 PC Pin | Shielded | 4.1mOhm Max | 22 µH | - | - | Through Hole | AEC-Q200 | 1.075" L x 0.846" W (27.30mm x 21.50mm) | Flat Wire, High Current, Soft Saturation | -55°C ~ 150°C | 100 kHz | 0.898" (22.80mm) |
|
|
CPEX2722-270MCTHT HIGH CURRENT POWER INDUCTOR |
287 | - |
|
数据表 |
CPEX2722 | Nonstandard | Tray | Active | Wirewound | Metal Composite | ±20% | 25 A | 30A | - | Shielded | 4.1mOhm Max | 27 µH | - | - | Through Hole | AEC-Q200 | 1.075" L x 0.846" W (27.30mm x 21.50mm) | Flat Wire, High Current, Soft Saturation | -55°C ~ 150°C | 100 kHz | 0.877" (22.30mm) |
|
|
LRC0603CK6N8GV001TFIXED IND 6.8NH 300MA 350MOHM SM |
0 | - |
|
数据表 |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±10% | 300 mA | - | 0603 (1608 Metric) | Unshielded | 350mOhm Max | 6.8 nH | 8 @ 100MHz | 4.5GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 100°C | 100 MHz | 0.037" (0.95mm) |
