场效应晶体管（FETs）、MOSFETs
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 安装类型 | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 漏极到源极电压 (Vdss) | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | 认证 | FET 特性 | 供应商设备封装 | 等级 | 功耗（最大值） | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DI040N03PTMOSFET POWERQFN 3X3 N 30V Diotec Semiconductor |
5,264 | - |
|
数据表 |
- | 8-PowerVDFN | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 40A (Tc) | 4.5V, 10V | 7mOhm @ 15A, 10V | Surface Mount | 2.5V @ 250µA | 12 nC @ 4.5 V | 30 V | ±20V | 1120 pF @ 15 V | - | - | 8-QFN (3x3) | - | 30W (Tc) | -55°C ~ 175°C (TJ) |
|
|
MMFTP5618-AQMOSFET SOT-23 P -60V -1.25A Diotec Semiconductor |
6,562 | - |
|
数据表 |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | P-Channel | MOSFET (Metal Oxide) | 1.25A (Ta) | 4.5V, 10V | 170mOhm @ 1.25A, 10V | Surface Mount | 3V @ 1mA | 7 nC @ 10 V | 60 V | ±20V | 361 pF @ 30 V | AEC-Q101 | - | SOT-23-3 (TO-236) | Automotive | 500mW (Ta) | -55°C ~ 150°C (TJ) |
|
|
MD10P380MOSFET SOT-26 P -100V -1.6A Diotec Semiconductor |
9,481 | - |
|
数据表 |
- | SOT-23-6 Thin, TSOT-23-6 | Bulk | Active | P-Channel | MOSFET (Metal Oxide) | 1.6A (Ta) | 4.5V, 10V | 325mOhm @ 1A, 10V | Surface Mount | 2.3V @ 250µA | 16 nC @ 10 V | 100 V | ±20V | 1046 pF @ 50 V | - | - | SOT-26 | - | 1W (Ta) | -55°C ~ 150°C (TJ) |
|
MMFTN3404A-AQMOSFET SOT-23 N 30V 5.6A Diotec Semiconductor |
2,914 | - |
|
数据表 |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 5.6A (Ta) | 4.5V, 10V | 23mOhm @ 5.6A, 10V | Surface Mount | 2.1V @ 250µA | - | 30 V | ±20V | 744 pF @ 0 V | AEC-Q101 | - | SOT-23-3 (TO-236) | Automotive | 1.25W (Ta) | -55°C ~ 150°C (TJ) |
|
|
DI1A5N60D1MOSFET DPAK N 600V 1.5A 8OHM Diotec Semiconductor |
2,158 | - |
|
数据表 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 1.5A (Tc) | 10V | 8Ohm @ 750mA, 10V | Surface Mount | 4V @ 250µA | 7.9 nC @ 10 V | 600 V | ±30V | 156 pF @ 25 V | - | - | TO-252 (DPAK) | - | 25W (Tc) | -55°C ~ 150°C (TJ) |
|
DI010N03PW-AQMOSFET POWERQFN 2X2 N 30V Diotec Semiconductor |
8,075 | - |
|
数据表 |
- | 6-PowerUDFN | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 10A (Tc) | 4.5V, 10V | 12mOhm @ 10A, 10V | Surface Mount | 2V @ 250µA | 25 nC @ 10 V | 30 V | ±20V | 1120 pF @ 15 V | AEC-Q101 | - | 6-QFN (2x2) | Automotive | 1.4W (Tc) | -55°C ~ 150°C (TJ) |
|

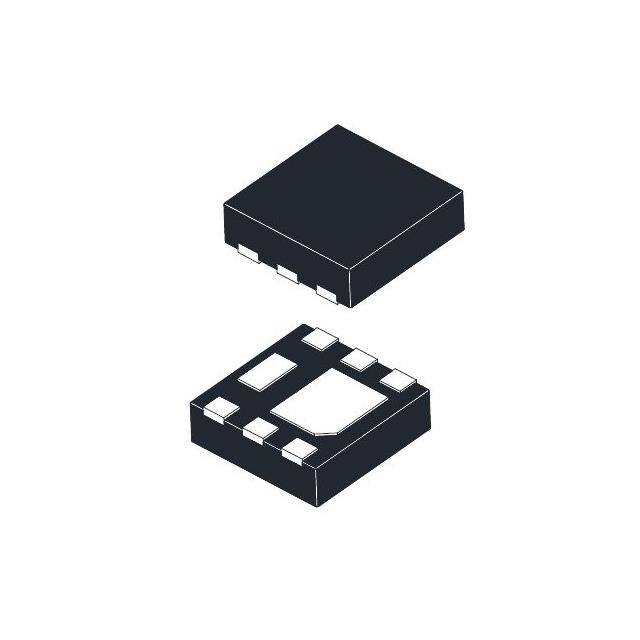

DI005P04PW-AQMOSFET POWERQFN 2X2 P -40V Diotec Semiconductor |
6,100 | - |
|
数据表 |
- | 6-PowerUDFN | Bulk | Active | P-Channel | MOSFET (Metal Oxide) | 5.4A (Ta) | 4.5V, 10V | 40mOhm @ 4A, 10V | Surface Mount | 2.5V @ 250µA | 19 nC @ 10 V | 40 V | ±12V | 1078 pF @ 20 V | AEC-Q101 | - | 6-QFN (2x2) | Automotive | 2W (Ta) | -55°C ~ 150°C (TJ) |
|
DI068N03PQ-AQMOSFET POWERQFN 5X6 N 30V Diotec Semiconductor |
6,811 | - |
|
数据表 |
- | 8-PowerTDFN | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 68A (Tc) | 4.5V, 10V | 4mOhm @ 20A, 10V | Surface Mount | 2.5V @ 250µA | 79 nC @ 10 V | 30 V | ±20V | 3650 pF @ 15 V | AEC-Q101 | - | 8-QFN (5x6) | Automotive | 25W (Tc) | -55°C ~ 150°C (TJ) |
|
|
DI045N04PT-AQMOSFET POWERQFN 3X3 N 45V Diotec Semiconductor |
5,270 | - |
|
数据表 |
- | 8-PowerVDFN | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 45A (Tc) | 4.5V, 10V | 8.5mOhm @ 10A, 10V | Surface Mount | 2.5V @ 250µA | 14 nC @ 10 V | 45 V | ±20V | 825 pF @ 25 V | AEC-Q101 | - | 8-QFN (3x3) | Automotive | 41.7W (Tc) | -55°C ~ 150°C (TJ) |
|
|
DI048N04PQ-AQMOSFET POWERQFN 5X6 N 40V Diotec Semiconductor |
5,900 | - |
|
数据表 |
- | 8-PowerTDFN | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 48A (Tc) | 4.5V, 10V | 7.6mOhm @ 12A, 10V | Surface Mount | 2.5V @ 250µA | 48 nC @ 10 V | 40 V | ±20V | 2270 pF @ 20 V | AEC-Q101 | - | 8-QFN (5x6) | Automotive | 35.7W (Tc) | -55°C ~ 150°C (TJ) |
