场效应晶体管（FETs）、MOSFETs
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 安装类型 | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 漏极到源极电压 (Vdss) | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | 认证 | FET 特性 | 供应商设备封装 | 等级 | 功耗（最大值） | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
RW1E025RPT2CRMOSFET P-CH 30V 2.5A 6WEMT |
4,122 | - |
|
数据表 |
- | 6-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 2.5A (Ta) | 4V, 10V | 75mOhm @ 2.5A, 10V | Surface Mount | 2.5V @ 1mA | 5.2 nC @ 5 V | 30 V | ±20V | 480 pF @ 10 V | - | - | 6-WEMT | - | 700mW (Ta) | 150°C (TJ) |
|

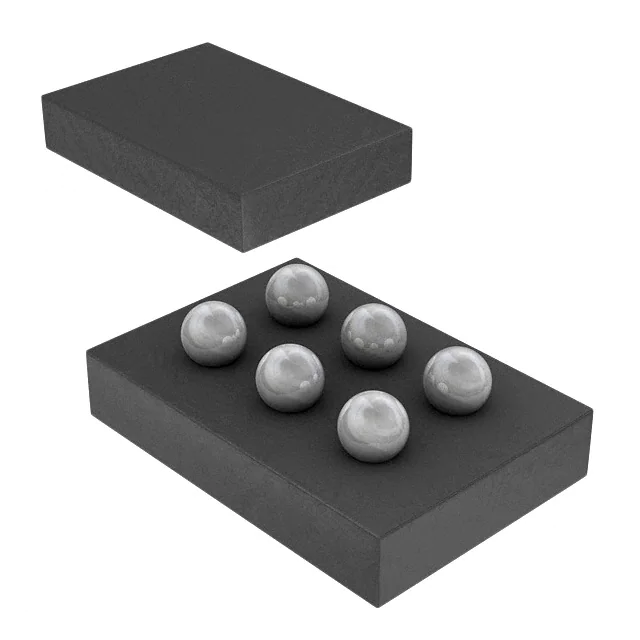

PMCM650VNEZMOSFET N-CH 12V 6.4A 6WLCSP |
7,228 | - |
|
数据表 |
- | 6-XFBGA, WLCSP | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 6.4A (Ta) | 4.5V | 25mOhm @ 3A, 4.5V | Surface Mount | 900mV @ 250µA | 15.4 nC @ 4.5 V | 12 V | ±8V | 1060 pF @ 6 V | - | - | 6-WLCSP (1.48x0.98) | - | 556mW (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) |
|
TSM2311CX RFGMOSFET P-CHANNEL 20V 4A SOT23 |
5,771 | - |
|
数据表 |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 4A (Ta) | 2.5V, 4.5V | 55mOhm @ 4A, 4.5V | Surface Mount | 1.4V @ 250µA | 6 nC @ 4.5 V | 20 V | ±8V | 640 pF @ 6 V | - | - | SOT-23 | - | 900mW (Ta) | -55°C ~ 150°C (TJ) |
|
|
TSM3404CX RFGMOSFET N-CHANNEL 30V 5.8A SOT23 |
5,174 | - |
|
数据表 |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 5.8A (Ta) | 4.5V, 10V | 30mOhm @ 5.8A, 10V | Surface Mount | 3V @ 250µA | 13.8 nC @ 10 V | 30 V | ±20V | 400.96 pF @ 15 V | - | - | SOT-23 | - | 750mW (Ta) | -55°C ~ 150°C (TJ) |
|

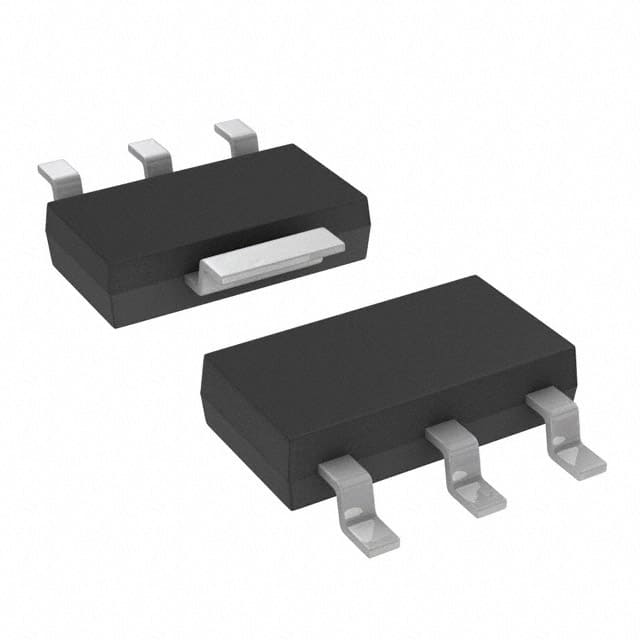

PJW5P03_R2_0000130V P-CHANNEL ENHANCEMENT MODE M |
6,555 | - |
|
数据表 |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 4.6A (Ta) | 4.5V, 10V | 50mOhm @ 3A, 10V | Surface Mount | 2.5V @ 250µA | 4.8 nC @ 4.5 V | 30 V | ±20V | 516 pF @ 15 V | - | - | SOT-223 | - | 1.6W (Ta) | -55°C ~ 150°C (TJ) |
|
MCU20N15A-TPMOSFET N-CH DPAK |
7,255 | - |
|
数据表 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20A | 6V, 10V | 59mOhm @ 5A, 10V | Surface Mount | 4V @ 250µA | 20.9 nC @ 10 V | 150 V | ±20V | 1158 pF @ 75 V | - | - | TO-252 (DPAK) | - | 50W | -55°C ~ 150°C (TJ) |
|
|
DI048N08PQMOSFET POWERQFN 5X6 N 80V |
6,612 | - |
|
数据表 |
- | 8-PowerTDFN | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 48A (Tc) | 4.5V, 10V | 6.5mOhm @ 20A, 10V | Surface Mount | 2.3V @ 250µA | 35 nC @ 10 V | 80 V | ±20V | 1812 pF @ 30 V | - | - | 8-QFN (5x6) | - | 56.8W (Tc) | -55°C ~ 150°C (TJ) |
|
DMNH15H110SPS-13MOSFET BVDSS: 101V~250V POWERDI5 |
9,294 | - |
|
数据表 |
- | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 27A (Tc) | 6V, 10V | 90mOhm @ 2A, 10V | Surface Mount | 4V @ 250µA | 25.5 nC @ 10 V | 150 V | ±20V | 989 pF @ 75 V | - | - | PowerDI5060-8 | - | 1.5W (Ta) | -55°C ~ 175°C (TJ) |
|
IRF7413TRPBF-1MOSFET N-CH 30V 13A 8SO |
3,250 | - |
|
数据表 |
HEXFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 13A (Ta) | 4.5V, 10V | 11mOhm @ 7.3A, 10V | Surface Mount | 3V @ 250µA | 79 nC @ 10 V | 30 V | ±20V | 1800 pF @ 25 V | - | - | 8-SO | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) |
|
|
IRF7478TRPBF-1MOSFET N-CH 60V 7A 8SO |
9,619 | - |
|
数据表 |
HEXFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 7A (Ta) | 4.5V, 10V | 26mOhm @ 4.2A, 10V | Surface Mount | 3V @ 250µA | 31 nC @ 4.5 V | 60 V | ±20V | 1740 pF @ 25 V | - | - | 8-SO | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) |
|
|
IRFC3810BMOSFET 100V 170A DIE |
4,347 | - |
|
数据表 |
HEXFET® | Die | Bulk | Obsolete | - | MOSFET (Metal Oxide) | 170A | 10V | 9mOhm @ 170A, 10V | Surface Mount | - | - | 100 V | - | - | - | - | Die | - | - | - |
|
|
IRLC120NBMOSFET 100V 10A DIE |
6,877 | - |
|
数据表 |
HEXFET® | Die | Bulk | Obsolete | - | MOSFET (Metal Oxide) | 10A | 10V | 180mOhm @ 10A, 10V | Surface Mount | - | - | 100 V | - | - | - | - | Die | - | - | - |
|
|
IRFC140NBMOSFET 100V 33A DIE |
3,343 | - |
|
数据表 |
HEXFET® | Die | Bulk | Obsolete | - | MOSFET (Metal Oxide) | 33A | 10V | 44mOhm @ 33A, 10V | Surface Mount | - | - | 100 V | - | - | - | - | Die | - | - | - |
|
|
IRF7811AVTRPBF-1MOSFET N-CH 30V 10.8A 8SO |
2,086 | - |
|
数据表 |
HEXFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 10.8A (Ta) | 4.5V | 14mOhm @ 15A, 4.5V | Surface Mount | 3V @ 250µA | 26 nC @ 5 V | 30 V | ±20V | 1801 pF @ 10 V | - | - | 8-SO | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) |
|
|
IRFC4905BMOSFET 55V 42A DIE |
6,402 | - |
|
数据表 |
HEXFET® | Die | Bulk | Obsolete | - | MOSFET (Metal Oxide) | 42A | 10V | 20mOhm @ 42A, 10V | Surface Mount | - | - | 55 V | - | - | - | - | Die | - | - | - |
|
|
IRFC3710DMOSFET 100V 57A DIE |
7,752 | - |
|
数据表 |
HEXFET® | Die | Bulk | Obsolete | - | MOSFET (Metal Oxide) | 57A | 10V | 23mOhm @ 57A, 10V | Surface Mount | - | - | 100 V | - | - | - | - | Die | - | - | - |
|
|
IRFC230NBMOSFET 200V 9.3A DIE |
9,555 | - |
|
数据表 |
HEXFET® | Die | Bulk | Obsolete | - | MOSFET (Metal Oxide) | 9.3A | - | 300mOhm @ 9.3A, 10V | Surface Mount | - | - | 200 V | - | - | - | - | Die | - | - | - |
|
RD3U080AAFRATL250V 8A TO-252, AUTOMOTIVE POWER |
3,899 | - |
|
数据表 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 8A (Tc) | 10V | 300mOhm @ 4A, 10V | Surface Mount | 5V @ 1mA | 25 nC @ 10 V | 250 V | ±30V | 1440 pF @ 25 V | - | - | TO-252 | - | 85W (Tc) | 150°C (TJ) |
|
|
IRFCZ44VBMOSFET 60V 55A DIE |
6,518 | - |
|
数据表 |
HEXFET® | Die | Bulk | Obsolete | - | MOSFET (Metal Oxide) | 55A | 10V | 16.5mOhm @ 55A, 10V | Surface Mount | - | - | 60 V | - | - | - | - | Die | - | - | - |
|
|
IRFC260NBMOSFET 200V 50A DIE |
9,926 | - |
|
数据表 |
HEXFET® | Die | Bulk | Obsolete | - | MOSFET (Metal Oxide) | 50A | 10V | 40mOhm @ 50A, 10V | Surface Mount | - | - | 200 V | - | - | - | - | Die | - | - | - |
